Engine Rebuild Kit Fit 98-02 Acura CL Honda Accord VTEC 2.3 F23A1 F23A4 F23A5

Engine Rebuild Kit Fit 98-02 Acura CL Honda Accord VTEC 2.3 F23A1 F23A4 F23A5.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13010-PAA-A00

Engine Rebuild Kit Fit 98-02 Acura CL Honda Accord VTEC 2.3 F23A1 F23A4 F23A5.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
1998-1999 ACURA CL 2.3L 2254CC L4 SOHC V-TEC, (16 VALVE), ENG CODE
"F23A1"
1998-2002 HONDA ACCORD 2.3L 2254CC L4 SOHC V-TEC, (16 VALVE), ENG CODE
"F23A1, F23A4, F23A5, F23A7"

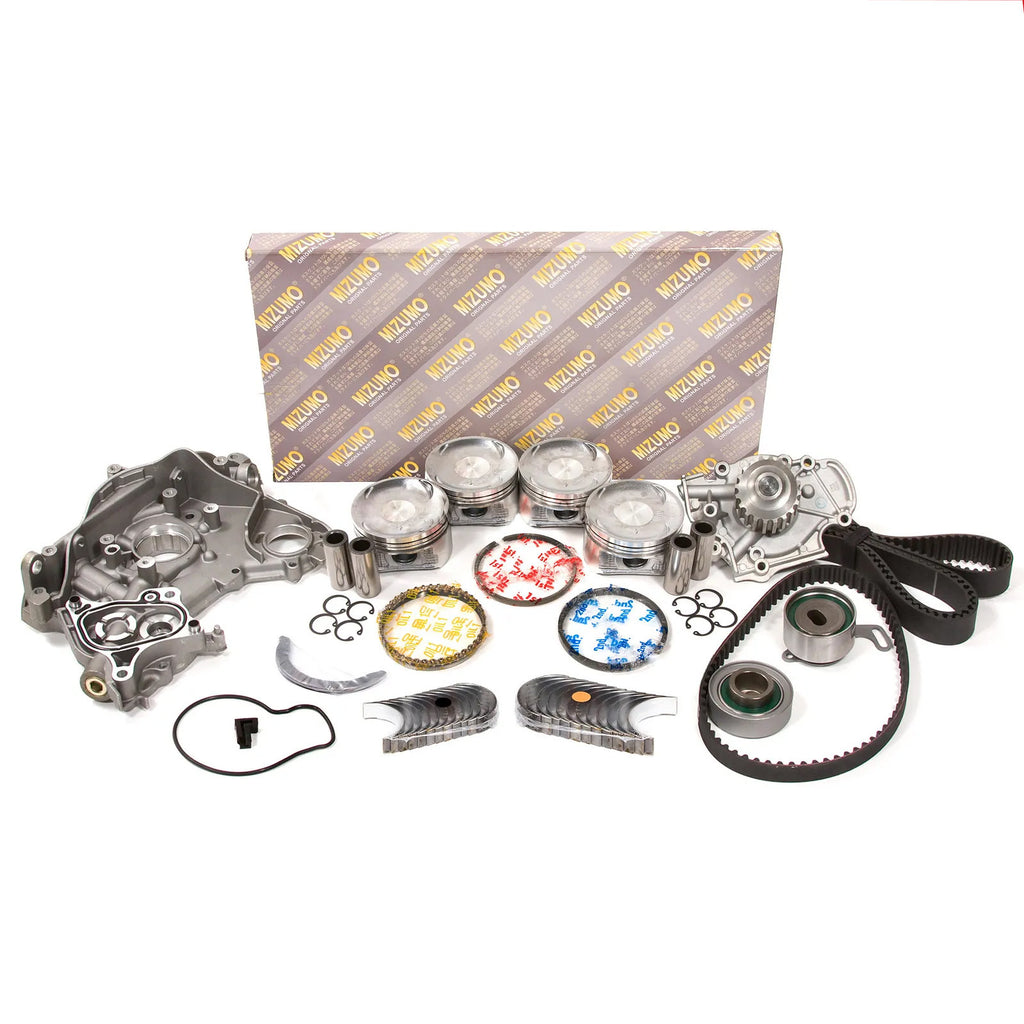

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 86.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (112 teeth)
1 Balance Shaft Belt (70 teeth)
1 GMB Roller Tensioner Bearing (Bearing assembly)
1 GMB Balanceshaft Tensioner
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS4010](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS4010&LH_TitleDesc=1&submit=)| MM| 86.000| 86.250| 86.500|
86.750| 87.000
IN| 3.386| 3.396| 3.406| 3.415| 3.425
Piston Ring Part| Piston Information
[RS4010](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS4010&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4010
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 86.000| 3.386
Comp| 30.020| 1.182
| Dist.| 1| -
---|---|---
2| -
3|
| 2.400
---
4.800
3.200
| 0.094
---
0.189
0.126
Length| 51.500| 2.028
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
16.000| 0.630
Pin Length| 54.000| 2.126
Pin Diameter| 21.965| 0.865
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
