Engine Rebuild Kit Fit 96-00 Chevrolet Geo Metro 1.0L G10 SOHC

  • Sale
  • Regular price $406.45
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Engine Rebuild Kit Fit 96-00 Chevrolet Geo Metro 1.0L G10 SOHC. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost.

Engine Rebuild Kit Fit 96-00 Chevrolet Geo Metro 1.0L G10 SOHC. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost.

Fits Following Models:
1998-2000 CHEVROLET METRO 1.0L 993CC 61CID L3 SOHC, (6 VALVE), VIN CODE
"6"
1996-1997 GEO METRO 1.0L 993CC 61CID L3 SOHC, (6 VALVE), VIN CODE "6"

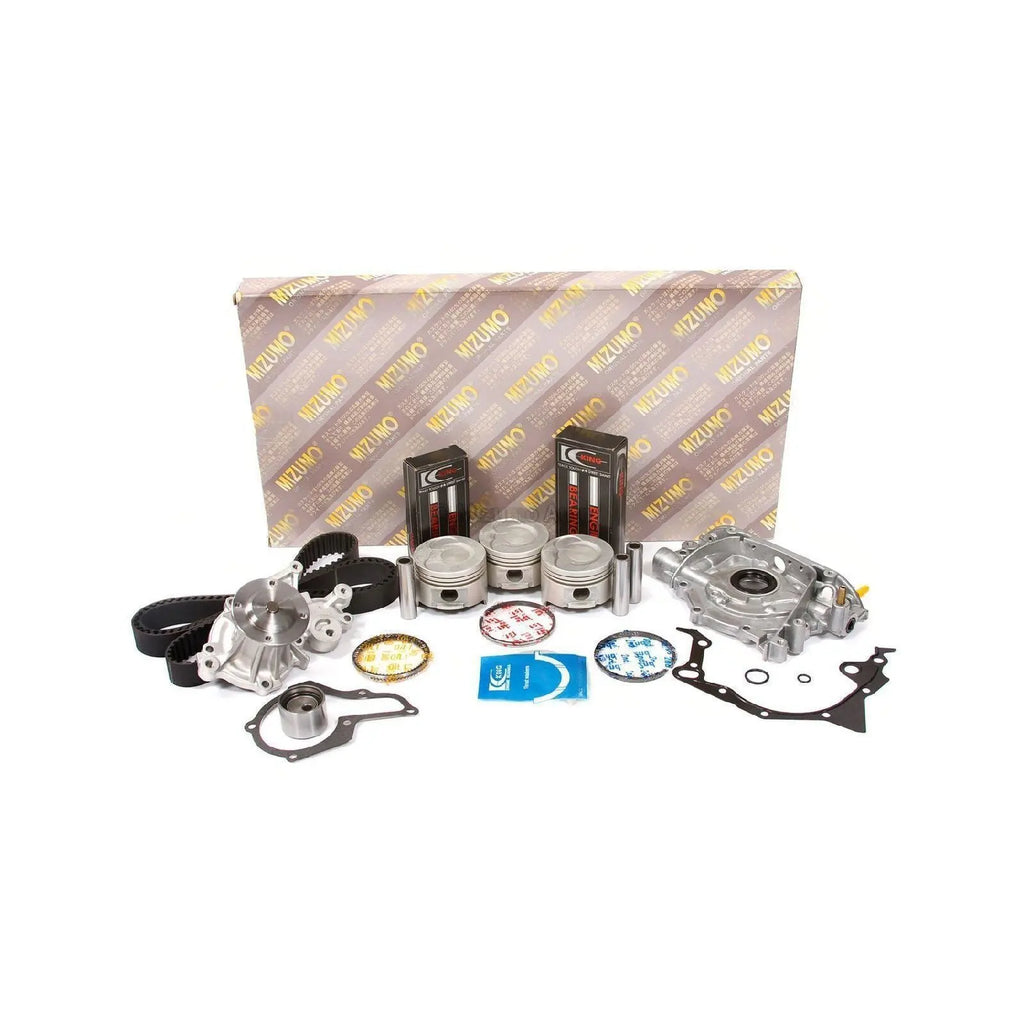

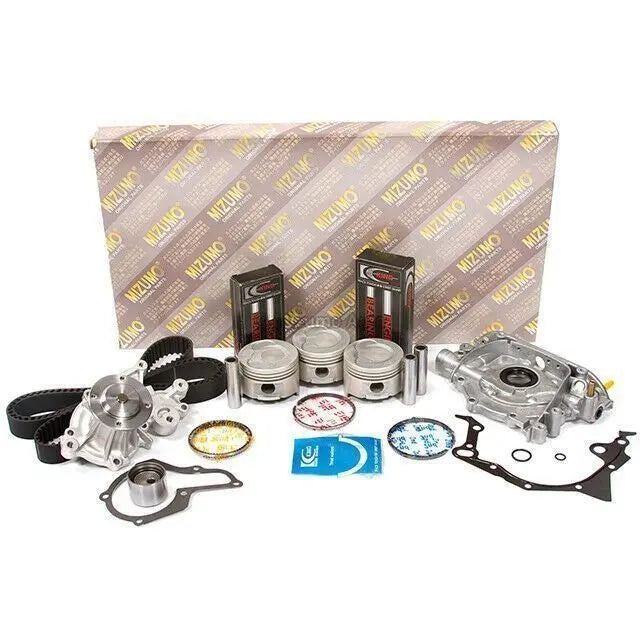

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
3 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 74.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
3 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (97 teeth - 1" wide)
1 GMB Timing Belt Tensioner (bearing assembly)
Water Pump w/ Gasket
Oil Pump (w/ Sensor Port)

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS8006](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS8006&LH_TitleDesc=1&submit=)| MM| 74.000| 74.250| 74.500|
74.750| 75.000
IN| 2.913| 2.923| 2.933| 2.943| 2.953
Piston Ring Part| Piston Information
[RS8007](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS8007&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS8006
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS8006.jpg)
Specifications| MM| IN
Cylinder| 3
Bore| 74.000| 2.913
Comp| 28.700| 1.130
| Dist.| 1| -
---|---|---
2|
3|
| 2.100
---
| 0.083
---
Length| 55.700| 2.193
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
13.800| 0.543
Pin Length| 65.000| 2.559
Pin Diameter| 17.000| 0.669
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
