Engine Rebuild Kit Fit 95-99 Nissan Maxima Infiniti G30 3.0 DOHC VQ30DE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : A2010-2Y900, A2010-2Y910, A2010-38U10, A2010-39U00
Engine Rebuild Kit Fit 95-99 Nissan Maxima Infiniti G30 3.0 DOHC VQ30DE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1995-1999 NISSAN MAXIMA 3.0L 2988CC V6 DOHC, (24 VALVE), ENG CODE
"VQ30DE"
1996-1999 INFINITI I30 3.0L 2988CC V6 DOHC, (24 VALVE), ENG CODE "VQ30DE"

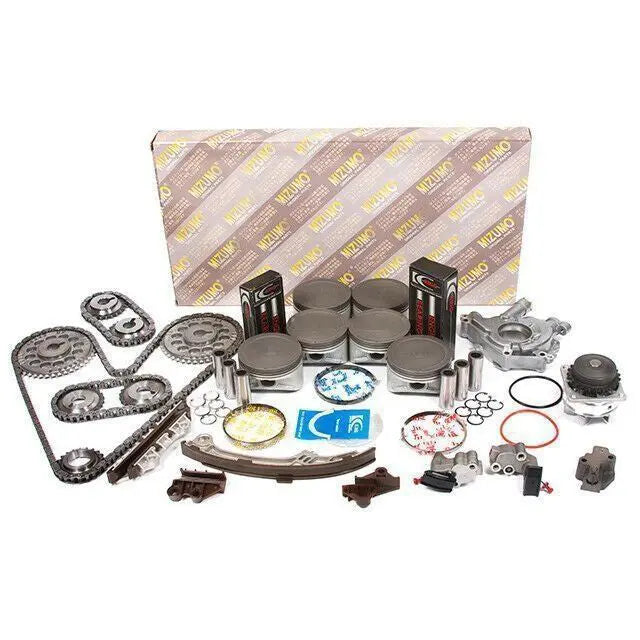

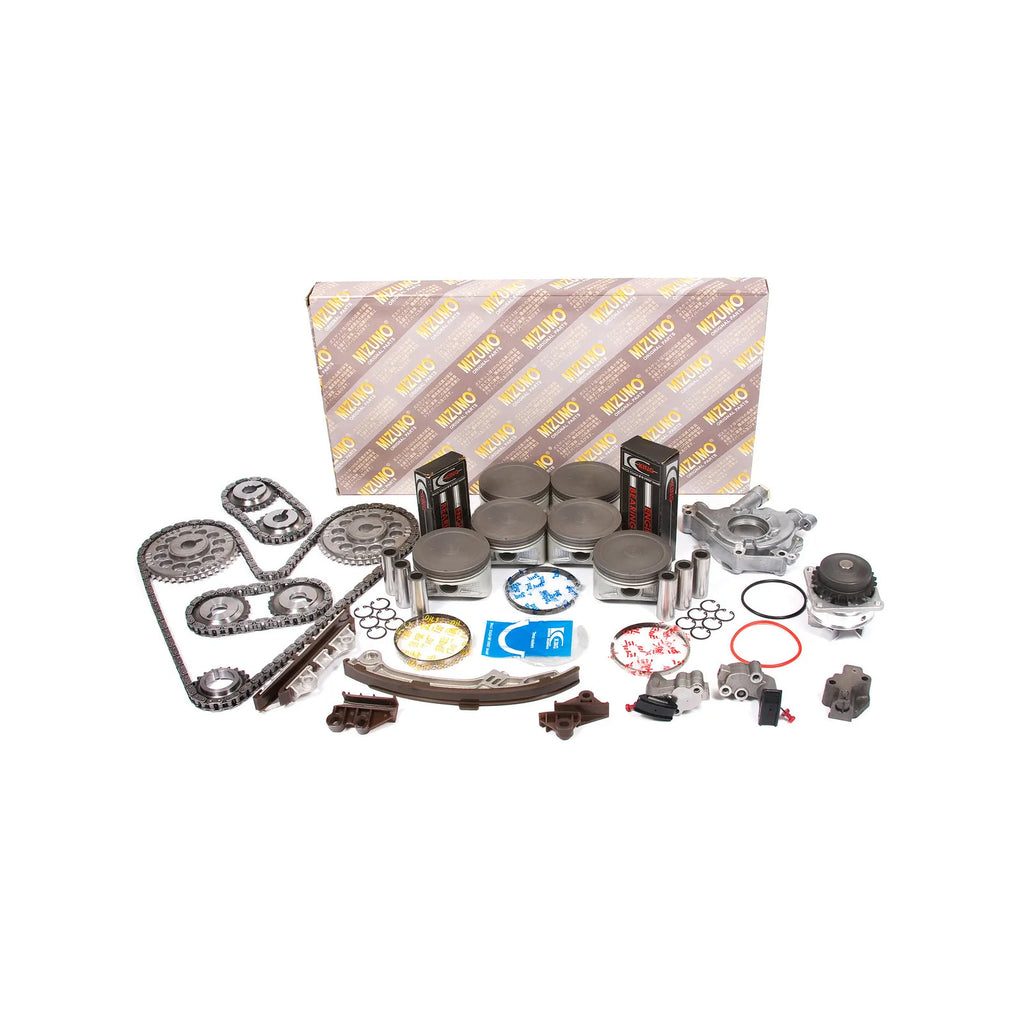

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 93.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.50mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Primary Timing Chain (138 links)
2 Upper Timing Chains
1 Primary Tensioner
1 Upper Left Tensioner
1 Upper Right Tensioner
4 Guide Rails
2 Cam Sprockets (42 teeth - primary outer)
2 Cam Sprockets (24 teeth - intake inner)
2 Cam Sprockets (24 teeth - exhaust inner)
1 Crank Sprocket (21 teeth)
Water Pump w/ Gasket
Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS3020](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS3020&LH_TitleDesc=1&submit=)| MM| 93.000| 93.250| 93.500|
93.750| 94.000
IN| 3.661| 3.671| 3.681| 3.691| 3.701
Piston Ring Part| Piston Information
[RS3020](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS3020&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 93.000| 3.661
Comp| 30.200| 1.189
| Dist.| 1| -
---|---|---
2|
3|
| 0.400
---
| 0.016
---
Length| 58.300| 2.295
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
14.000| 0.551
Pin Length| 58.000| 2.283
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.500| 0.098
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
