Engine Rebuild Kit Fit 94-98 Mazda Miata Protege 1.8 DOHC 16V BP

Engine Rebuild Kit Fit 94-98 Mazda Miata Protege 1.8 DOHC 16V BP. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost. Replace Part :
BPY1-11-SA0A, BPY1-11-SAO

Engine Rebuild Kit Fit 94-98 Mazda Miata Protege 1.8 DOHC 16V BP. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost.

Fits Following Models:
1994-1997 MAZDA MIATA 1.8L 1839CC L4 DOHC, (16 VALVE), ENG CODE "BP"
1995-1998 MAZDA PROTEGE 1.8L 1839CC L4 DOHC, (16 VALVE), ENG CODE "BP"

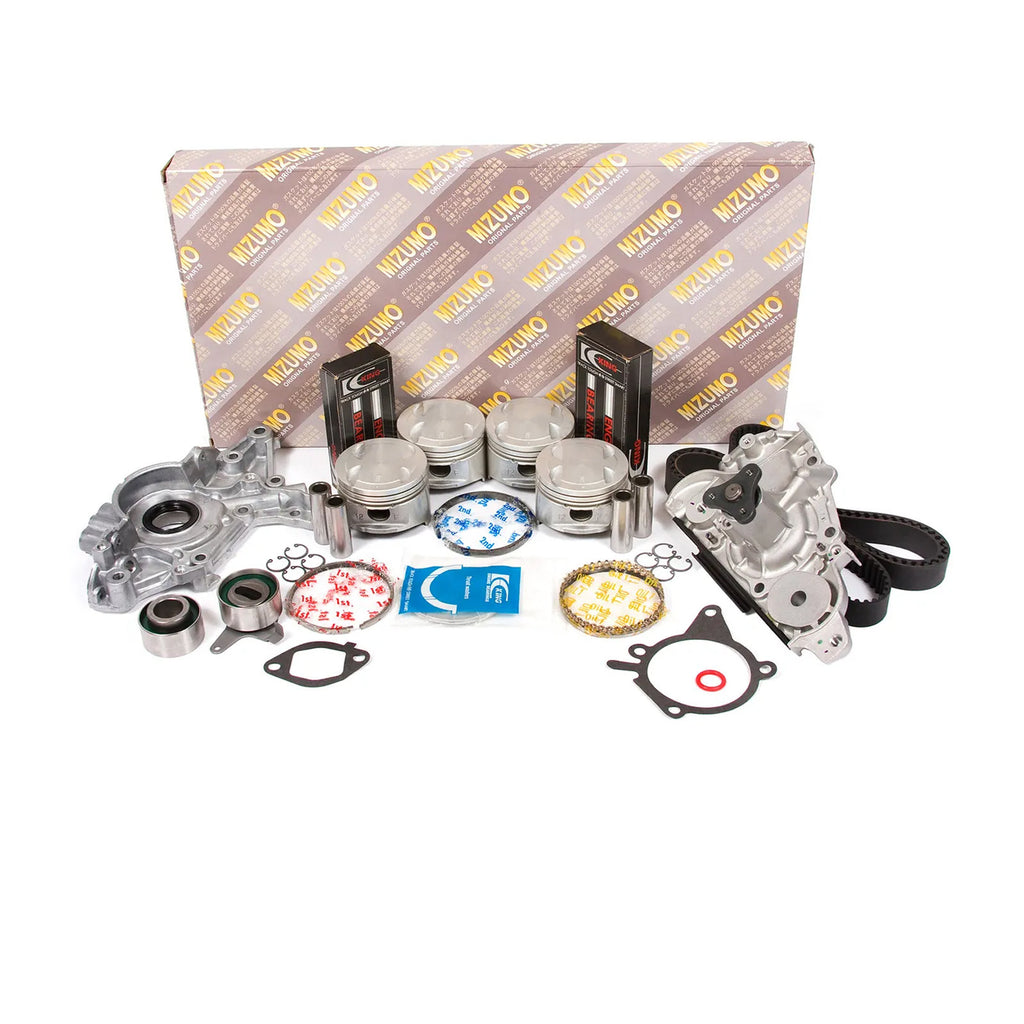

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 83.00mm
1st Group: 1.50mm
2nd Group: 1.75mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (145 teeth)
1 Roller Tensioner (assembly bearing)
1 Idler (idler bearing)
Tensioner Spring is not included
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS6022](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS6022&LH_TitleDesc=1&submit=)| MM| 83.000| 83.250| 83.500|
83.750| 84.000
IN| 3.268| 3.278| 3.287| 3.297| 3.307
Piston Ring Part| Piston Information
[RS6018](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS6018&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS6022
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 83.000| 3.268
Comp| 30.600| 1.205
| Dist.| 1| +
---|---|---
2|
3|
| 0.500
---
| 0.020
---
Length| 61.500| 2.421
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
15.000| 0.591
Pin Length| 70.000| 2.756
Pin Diameter| 32.000| 1.260
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
