Engine Rebuild Kit Fit 94-95 Honda Accord Odyssey 2.2L SOHC F22B2 F22B6.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-PT3-A01, 13101-PT6-A00
Engine Rebuild Kit Fit 94-95 Honda Accord Odyssey 2.2L SOHC F22B2 F22B6.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1994-1995 HONDA ACCORD LX, DX 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE
"F22B2"
1995 HONDA ODYSSEY 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22B6"

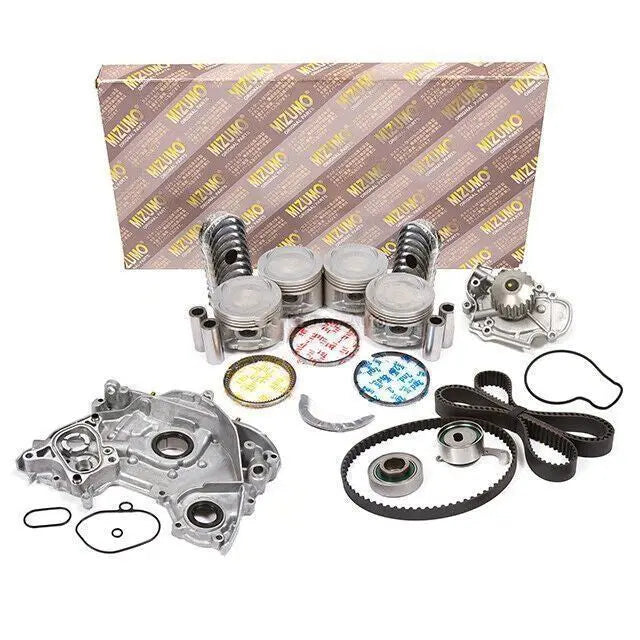

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 85.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (113 teeth)
1 Balance Shaft Belt (70 teeth)
1 GMB Roller Tensioner Bearing (bearing assembly)
1 GMB Balance Shaft Tensioner
Water Pump w/ Gasket
Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS4012](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS4012&LH_TitleDesc=1&submit=)| MM| 85.000| 85.250| 85.500|
85.750| 86.000
IN| 3.346| 3.356| 3.366| 3.376| 3.386
Piston Ring Part| Piston Information
[RS4012](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS4012&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 85.000| 3.346
Comp| 30.800| 1.213
| Dist.| 1| -
---|---|---
2|
3|
| 3.700
---
| 0.146
---
Length| 65.300| 2.571
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
20.000| 0.787
Pin Length| 57.000| 2.244
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
