Engine Rebuild Kit Fit 93-94 Ford Probe Mazda MX6 626 2.5L DOHC KL

  • Sale
  • Regular price $1,997.95
Shipping calculated at checkout.

 More payment options


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Engine Rebuild Kit Fit 93-94 Ford Probe Mazda MX6 626 2.5L DOHC KL. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost. Replace Part :
E32Z-6108-D, E32Z-6108-G, F42Z-6108-D, F52Z-6108-A, KLY1-11-SL0B, KLZ1-11-SA0,
KLZ1-11-SL0B

Engine Rebuild Kit Fit 93-94 Ford Probe Mazda MX6 626 2.5L DOHC KL. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost.

Fits Following Models:
1993-1994 FORD PROBE 2.5L 2450CC 152CID V6 DOHC, (24 VALVE), VIN CODE "B"
1993-1994 MAZDA 626 2.5L 2497CC V6 DOHC, (24 VALVE), ENG CODE "KL"
1993-1994 MAZDA MX-6 2.5L 2497CC V6 DOHC, (24 VALVE), ENG CODE "KL"

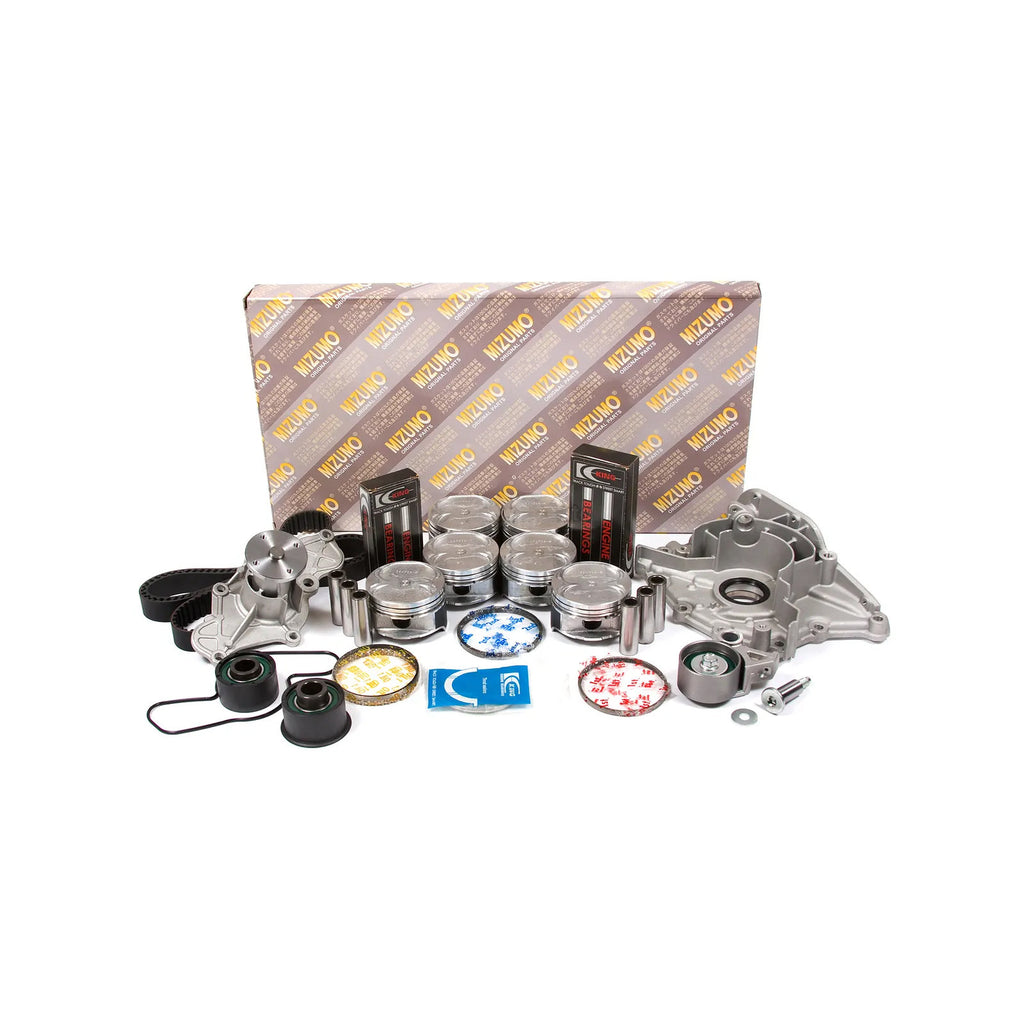

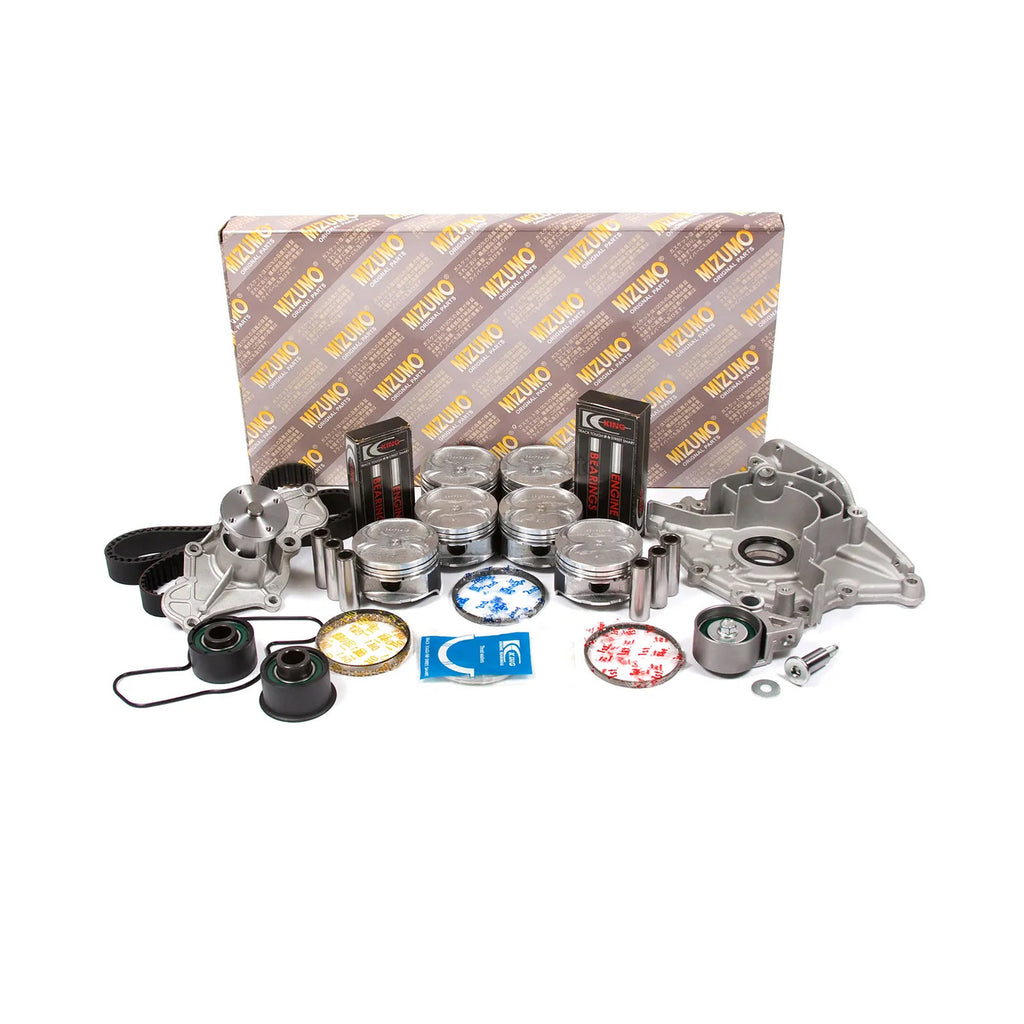

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 84.50mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (192 teeth)
1 GMB Roller Tensioner Pulley
1 GMB Idler Pulley (upper)
1 GMB Idler Pulley (lower left)
1 Front Crankshaft Seal (42
Hydraulic Tensioner is not included
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS6015](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS6015&LH_TitleDesc=1&submit=)| MM| 84.500| 84.750| 85.000|
85.250| 85.500
IN| 3.327| 3.337| 3.346| 3.356| 3.366
Piston Ring Part| Piston Information
[RS6015](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS6015&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS6015
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS6015.jpg)
Specifications| MM| IN
Cylinder| 6
Bore| 84.500| 3.327
Comp| 29.200| 1.150
| Dist.| 1| -
---|---|---
2|
3|
| 1.700
---
| 0.067
---
Length| 55.900| 2.201
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| NONE
---|---|---|---
Head| Skirt
NONE| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
11.000| 0.433
Pin Length| 61.000| 2.402
Pin Diameter| 19.980| 0.787
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
