Engine Rebuild Kit Fit 93-94 Eagle Mitsubishi Eclipse Non-Turbo 2.0L DOHC
4G63. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Replace Part : MD190262
Engine Rebuild Kit Fit 93-94 Eagle Mitsubishi Eclipse Non-Turbo 2.0L DOHC
4G63. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1993-1994 EAGLE TALON 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), VIN CODE
"E"
1993-1994 MITSUBISHI ECLIPSE 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), ENG
CODE "4G63"
1993-1994 PLYMOUTH LASER 2.0L 1997CC 122CID L4 DOHC, (16 VALVE), VIN CODE
"E"

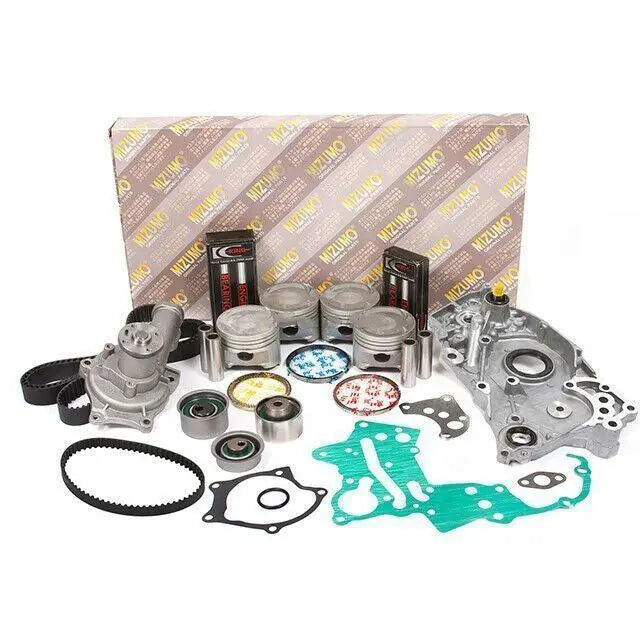

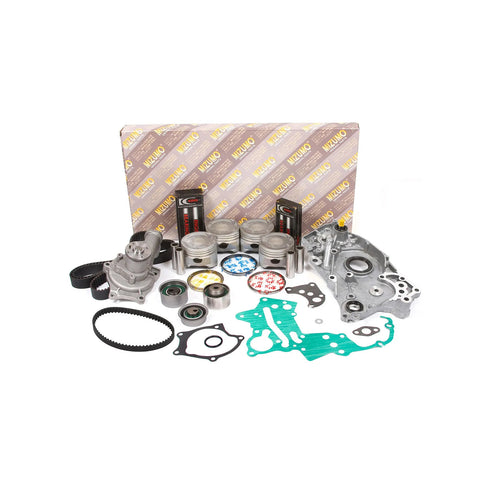

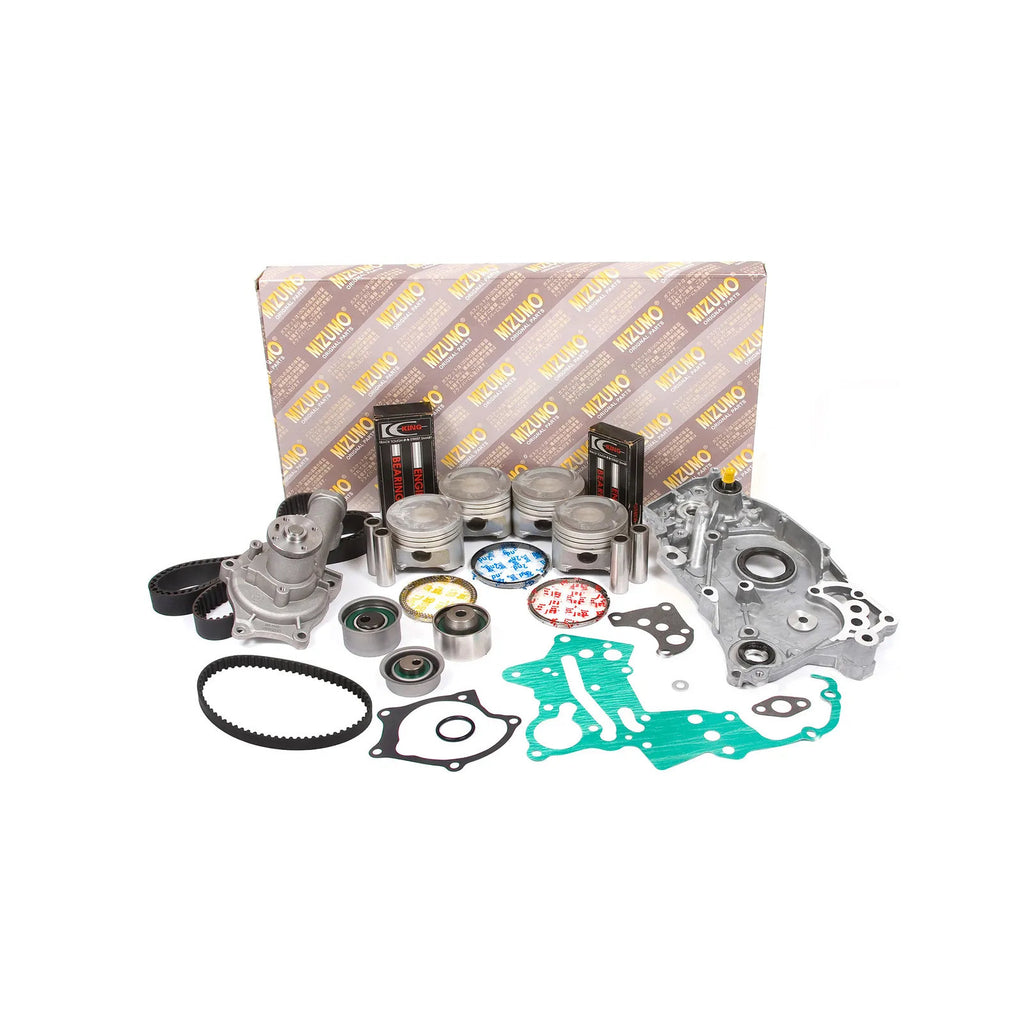

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 85.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
1 Timing Belt (153 teeth)
1 Balance Shaft Belt (65 teeth)
1 Roller Tensioner Bearing
1 Idler Bearing
1 Balance Shaft Tensioner Bearing (bearing assembly)
Hydraulic Tensioner - is not included
2 Camshaft Bearing
1 Front Crankshaft Bearing
Water Pump w/ Gasket
Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5005S](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5005S&LH_TitleDesc=1&submit=)| MM| 85.000| 85.250|
85.500| 85.750| 86.000
IN| 3.346| 3.356| 3.366| 3.376| 3.386
Piston Ring Part| Piston Information
[RS5005B](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5005B&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 85.000| 3.346
Comp| 35.000| 1.378
| Dist.| 1| -
---|---|---
2| -
3|
| 2.200
---
3.600
| 0.087
---
0.142
Length| 67.000| 2.638
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 62.000| 2.441
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
