Engine Rebuild Kit Fit 92-96 Honda Prelude 2.3L DOHC H23A1. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1992-1996 HONDA PRELUDE 2.3L 2259CC L4 DOHC, (16 VALVE), ENG CODE "H23A1"

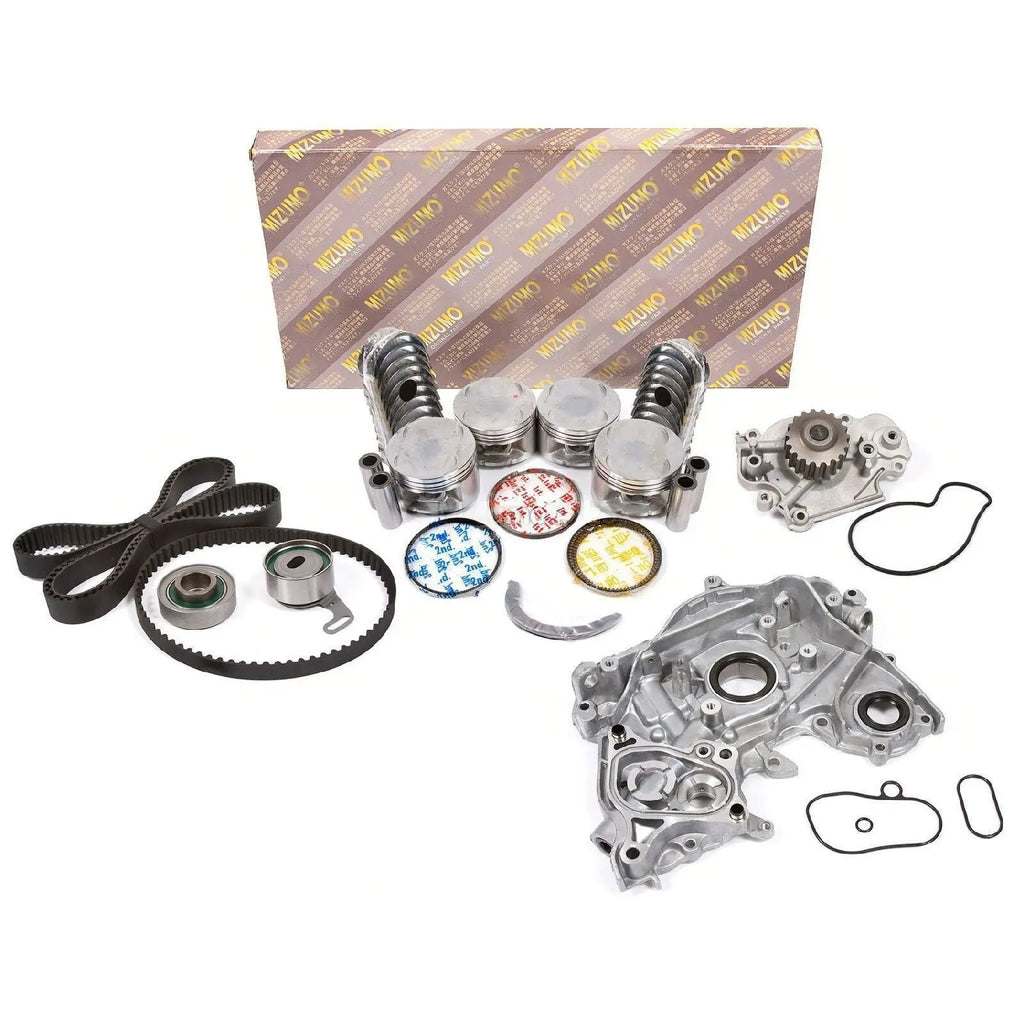

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (STD - Standard Size, or Oversized 0.50mm = 0.020")
Standard Bore Diameter: 87.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
1 Timing Belt (127 teeth)
1 Balance Shaft Belt (70 teeth)
1 GMB Roller Tensioner Bearing (bearing assembly)
1 GMB Idler Bearing
Water Pump w/ Gasket
Oil Pump
