Engine Rebuild Kit Fit 91-94 Nissan 240SX 2.4L DOHC KA24DE

Engine Rebuild Kit Fit 91-94 Nissan 240SX 2.4L DOHC KA24DE. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost. Replace Part :
A2010-1E400

Engine Rebuild Kit Fit 91-94 Nissan 240SX 2.4L DOHC KA24DE. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost.

Fits Following Models:
1991-1994 NISSAN 240SX 2.4L 2389CC L4 DOHC, (16 VALVE), ENG CODE "KA24DE"

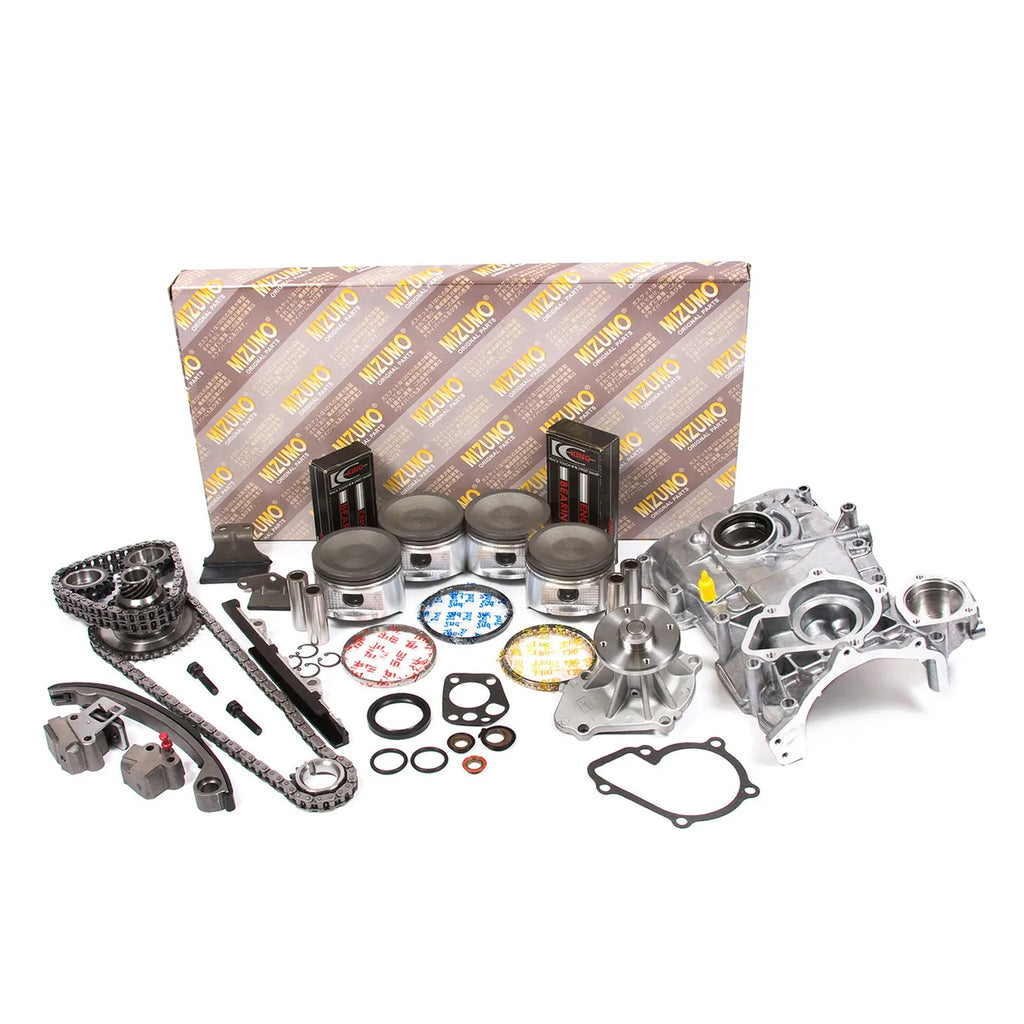

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 89.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
2 Cam Sprockets
1 Crank Sprocket (18 teeth)
1 Upper Timing Chain (double row)
1 Lower Timing Chain (92 links)
1 Upper Chain Tensioner (cam drive)
1 Lower Chain Tensioner (idler drive)
1 Lower Left Guide Rail (straight)
1 Lower Right Guide Rail (curved)
1 Idler Sprocket (36 & 19 teeth)
2 Bolts with Washers
2 O-rings
1 Oil Seal
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS3015](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS3015&LH_TitleDesc=1&submit=)| MM| 89.000| 89.250| 89.500|
89.750| 90.000
IN| 3.504| 3.514| 3.524| 3.533| 3.543
Piston Ring Part| Piston Information
N/A
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS3015
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 89.000| 3.504
Comp| 34.000| 1.339
| Dist.| 1| -
---|---|---
2|
3|
| 6.600
---
| 0.260
---
Length| 68.300| 2.689
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
17.000| 0.669
Pin Length| 61.500| 2.421
Pin Diameter| 21.000| 0.827
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
