Engine Rebuild Kit Fit 88-89 Toyota MR2 Corolla GTS Geo Prizm 1.6L DOHC 4AGE

  • Sale
  • Regular price $607.45
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Engine Rebuild Kit Fit 88-89 Toyota MR2 Corolla GTS Geo Prizm 1.6L DOHC 4AGE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-16070-01, 94844692

Engine Rebuild Kit Fit 88-89 Toyota MR2 Corolla GTS Geo Prizm 1.6L DOHC 4AGE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
1988 CHEVROLET NOVA 1.6L 1588CC 98CID L4 DOHC, (16 VALVE), ENG CODE
"4AGE"
1988-1989 TOYOTA COROLLA 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AGE"
1988-1989 TOYOTA COROLLA GTS 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE
"4AGEC"
1988 TOYOTA COROLLA FX16 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE
"4AGELC"
1988-1989 TOYOTA MR2 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AGELC"

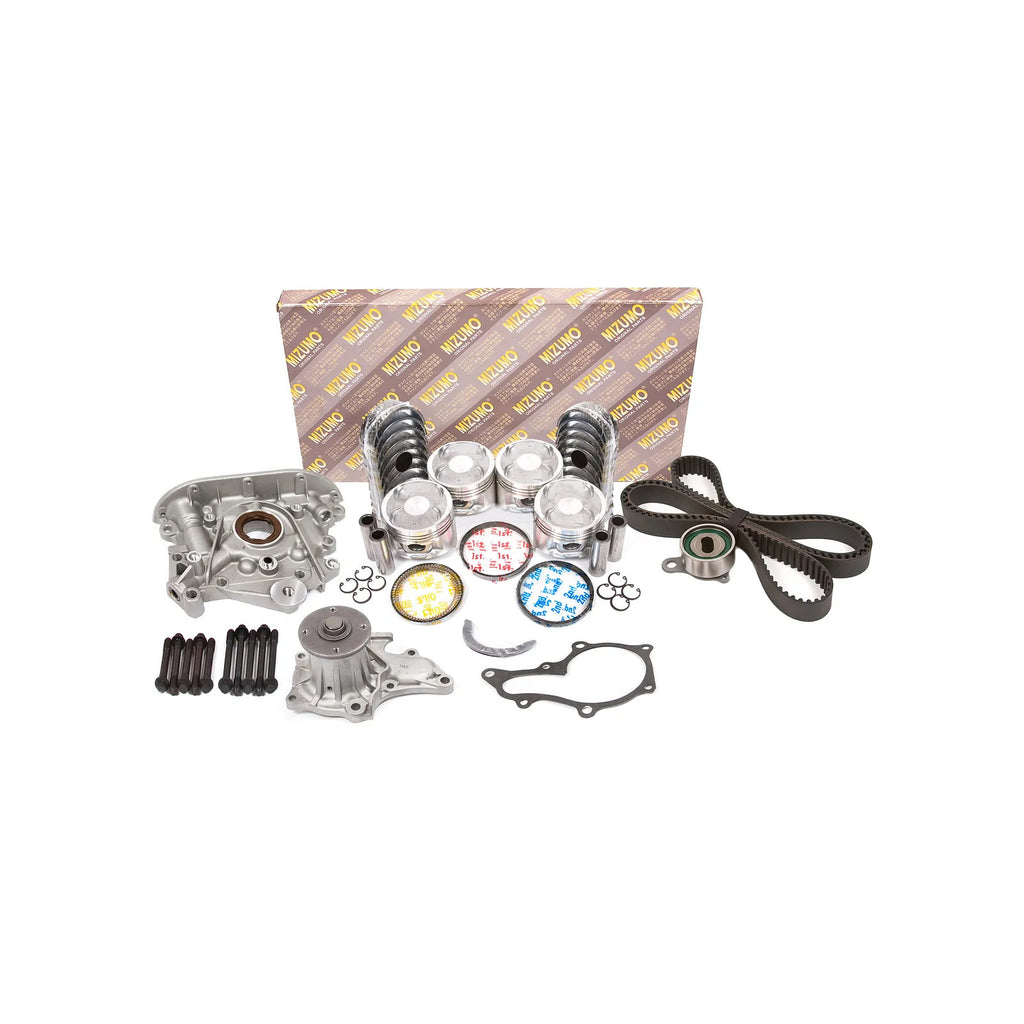

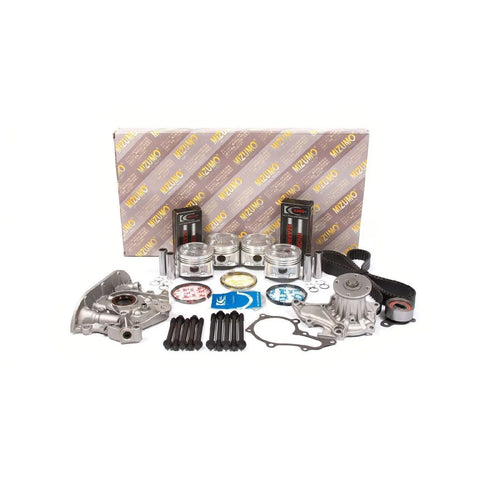

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 81.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (113 Teeth)
1 Roller Tensioner Bearing (bearing assembly)
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2012B](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2012B&LH_TitleDesc=1&submit=)| MM| 81.000| 81.250|
81.500| 81.750| 82.000
IN| 3.189| 3.199| 3.209| 3.219| 3.228
Piston Ring Part| Piston Information
[RS2008](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2008&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2012B
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2012B.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 81.000| 3.189
Comp| 30.500| 1.201
| Dist.| 1| +
---|---|---
2|
3|
| 0.300
---
| 0.012
---
Length| 64.500| 2.539
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 61.000| 2.402
Pin Diameter| 20.000| 0.787
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
