Engine Rebuild Kit Fit 07-08 Chrysler 300 Sebring Dodge Magnum Charger 2.7L
DOHC. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Replace Part : 5003427AA, 5018627AA, 5018627AB
Engine Rebuild Kit Fit 07-08 Chrysler 300 Sebring Dodge Magnum Charger 2.7L
DOHC. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
2007-11/03/2008 CHRYSLER 300 2.7L 2700CC 167CID V6 DOHC, (24 VALVE), VIN
CODE "R"
2007-11/03/2008 CHRYSLER SEBRING 2.7L 2700CC 167CID V6 DOHC, (24 VALVE),
VIN CODE "R"
2008-11/03/2008 DODGE AVENGER 2.7L 2700CC 167CID V6 DOHC, (24 VALVE), VIN
CODE "R"
06/26/2007-11/03/2008 DODGE CHARGER 2.7L 2700CC 167CID V6 DOHC, (24
VALVE), VIN CODE "R"
2007-11/03/2008 DODGE MAGNUM 2.7L 2700CC 167CID V6 DOHC, (24 VALVE), VIN
CODE "T"

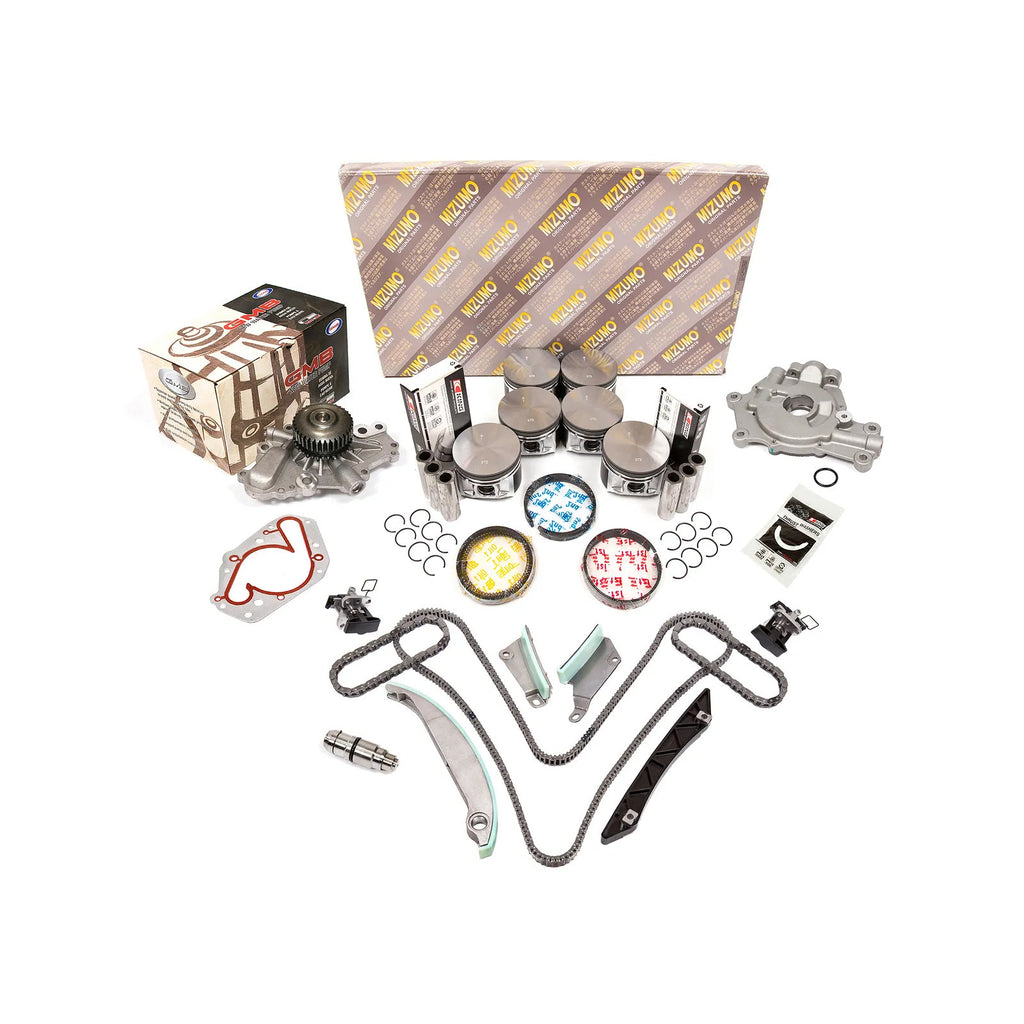

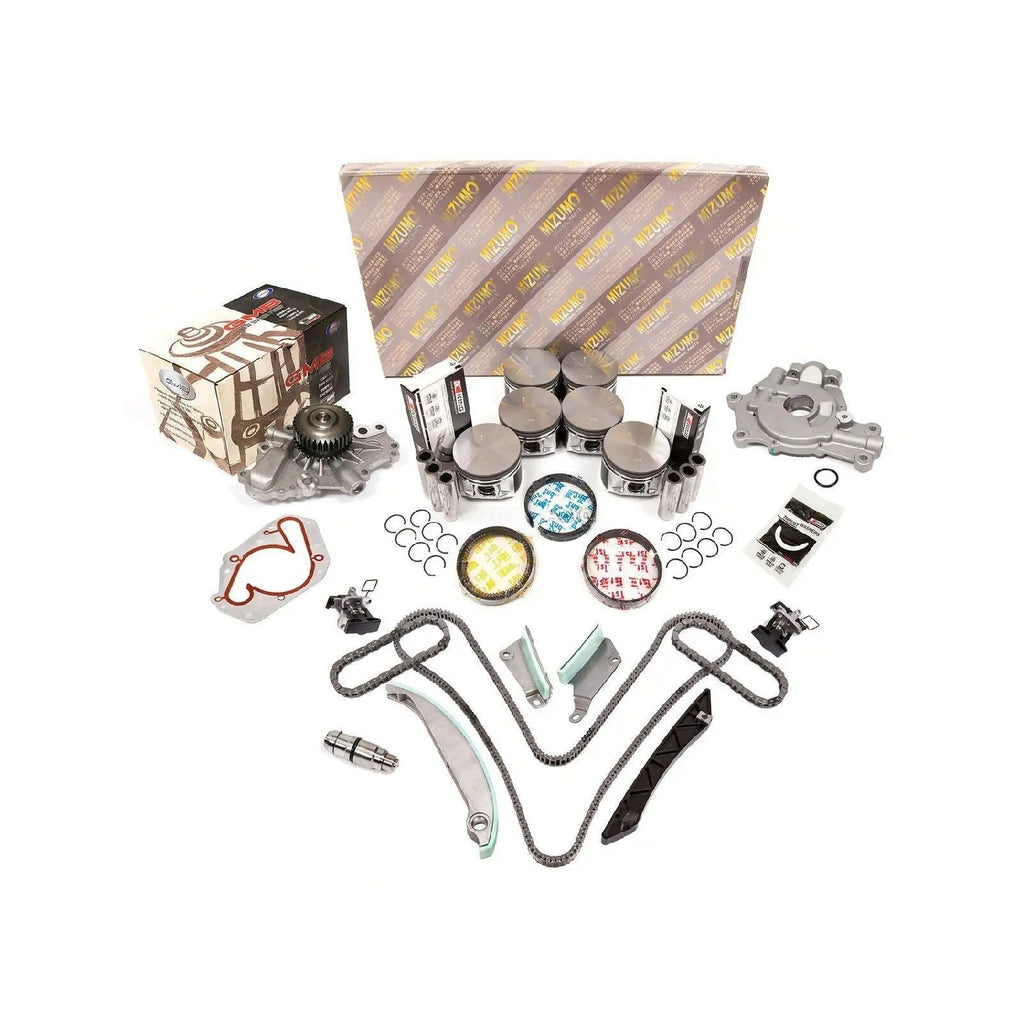

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 86.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing cam chain (176 link)
1 Cam sprocket exhaust (will not fit ACURA TSX K24A2)
1 Crank sprocket (combo 23t / 34t)
1 Cam chain tensioner
1 Upper fixed guide rail
1 Right tensioning guide rail
<
1 Timing Chain lower (272 links, 1/4" pitch)
1 Cam Chain upper (2 required)
1 Tensioner upper (left)
1 Tensioner upper (right)
1 Guide Rail left (long fixed rail)
1 Guide Rail left (short fixed rail)
1 Guide Rail right (short fixed rail)
1 Guide Rail (right / tensioner rail)
1 Tensioner lower / primary tensioner (push in)
1 GMB Water Pump w/ Gasket
1 Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5027](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5027&LH_TitleDesc=1&submit=)| MM| 86.000| 86.250| 86.500|
86.750| 87.000
IN| 3.386| 3.396| 3.406| 3.415| 3.425
Piston Ring Part| Piston Information
[RS5027](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5027&LH_TitleDesc=1&submit=)

Specifications| MM| IN
Cylinder| 6
Bore| 86.000| 3.386
Comp| 31.200| 1.228
| Dist.| 1|
---|---|---
2|
3|
|
---
|
---
Length| 53.200| 2.094
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
7.000| 0.276
Pin Length| 60.000| 2.362
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
