Engine Rebuild Kit Fit 04-05 Subaru Impreza Outback Forester SOHC VIN G

Engine Rebuild Kit Fit 04-05 Subaru Impreza Outback Forester SOHC VIN G.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 12006AB470, 12006AC070

Engine Rebuild Kit Fit 04-05 Subaru Impreza Outback Forester SOHC VIN G.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2004-2005 SUBARU IMPREZA NON-TURBO 2.5L 2458CC H4 SOHC, (16 VALVE), ENG
CODE "EJ25"
2004-2005 SUBARU FORESTER WITH MANUAL TRANSMISSION ONLY NON-TURBO 2.5L
2458CC H4 SOHC, (16 VALVE), ENG CODE "EJ25", (DOES NOT FIT AUTOMATIC
TRANSMISSION.)
2004-2005 SUBARU OUTBACK WITH VIN G ONLY NON-TURBO 2.5L 2458CC H4 SOHC,
(16 VALVE), ENG CODE "EJ25", (DOES NOT FIT OUTBACK WITH VIN B.)

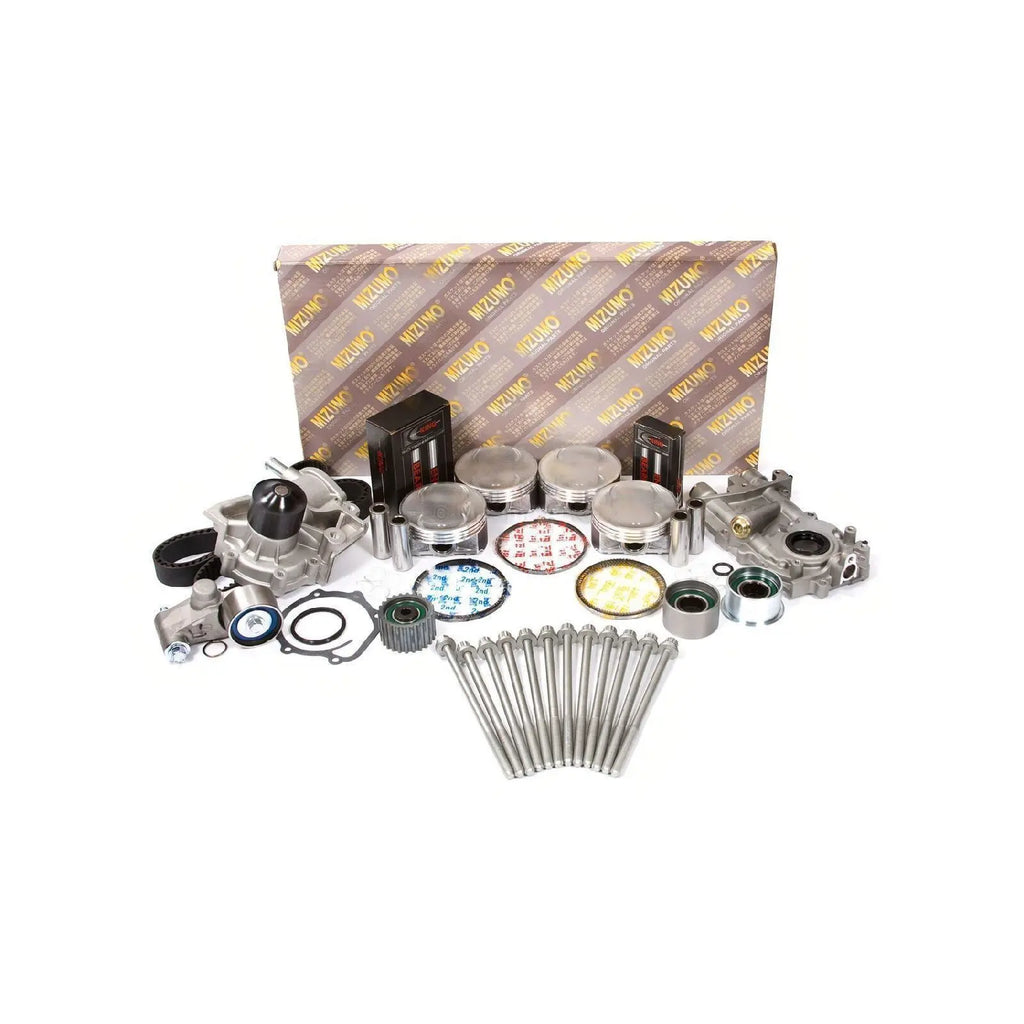

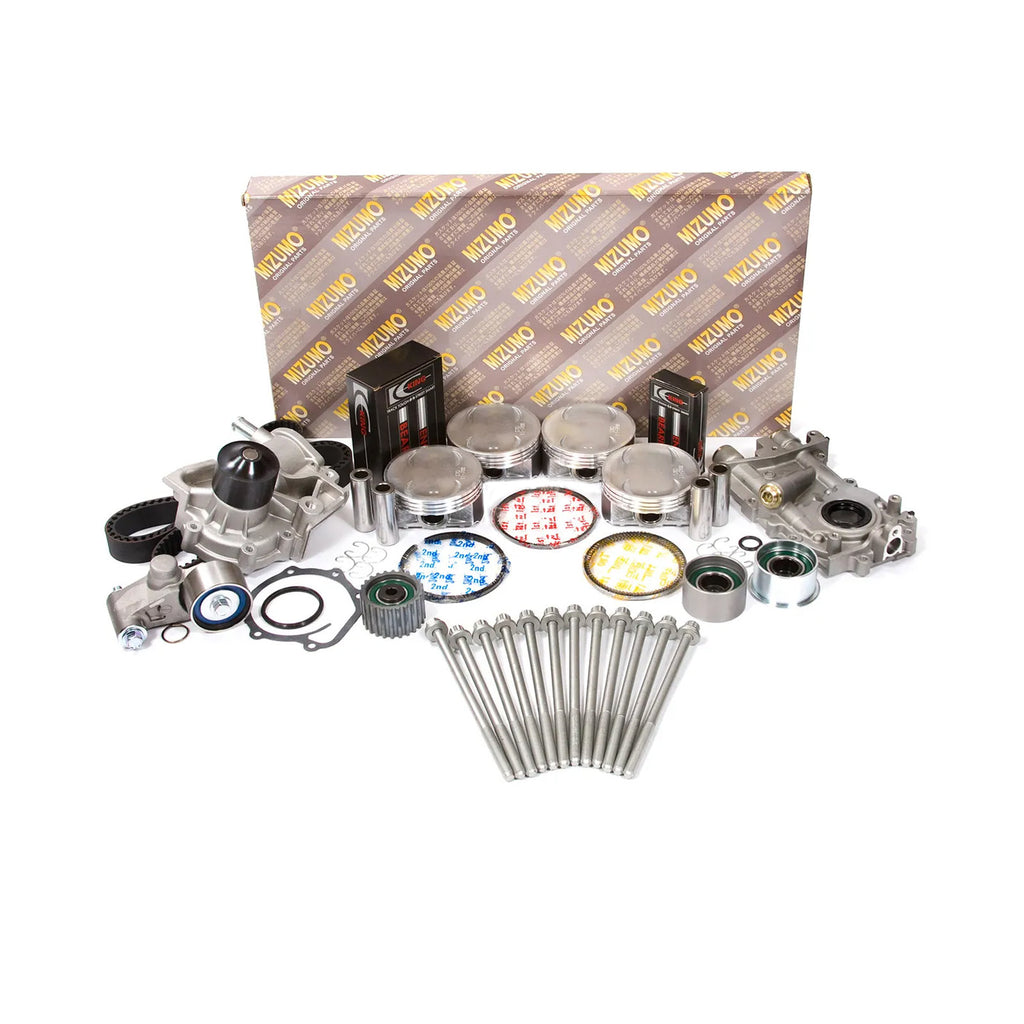

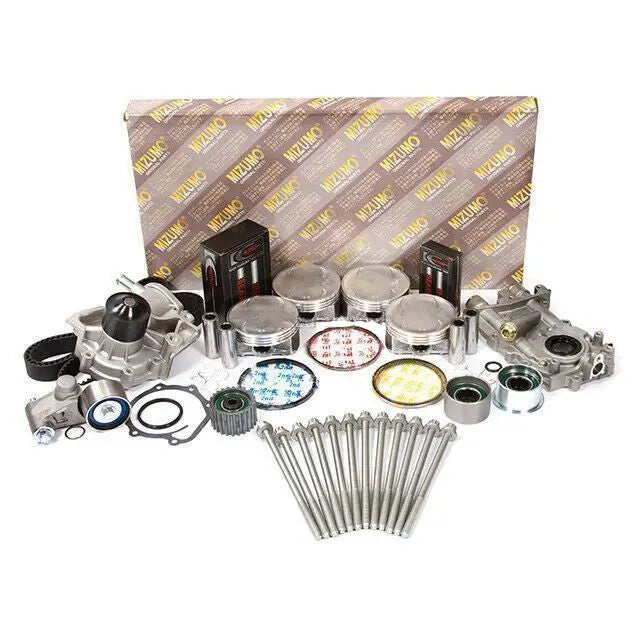

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
12 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 99.50mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.50mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set - Thrust washers at 5 position (Sizes available: see option above)
Rod Bearing Set - 52mm journal (Sizes available: see option above)
1 Timing Belt (223 teeth)
1 GMB Tensioner assembly (tensioner bearing & hydraulic cylinder combo)
1 GMB Lower Idler (sprocket with bearing)
2 GMB Upper Idlers (left & right)
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS9009](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS9009&LH_TitleDesc=1&submit=)| MM| 99.500| 99.750|
100.000| 100.250| 100.500
IN| 3.917| 3.927| 3.937| 3.947| 3.957
Piston Ring Part| Piston Information
[RS9009](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS9009&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS9009
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 99.500| 3.917
Comp| 29.500| 1.161
| Dist.| 1| -
---|---|---
2|
3|
| 1.700
---
| 0.067
---
Length| 50.000| 1.968
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 64.000| 2.520
Pin Diameter| 23.000| 0.906
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.500| 0.098
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
