Engine Rebuild Kit Fit 03/1982-1982 Toyota Pick Up Celica 2.4L SOHC 22R 22RE

Engine Rebuild Kit Fit 03/1982-1982 Toyota Pick Up Celica 2.4L SOHC 22R 22RE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-35020

Engine Rebuild Kit Fit 03/1982-1982 Toyota Pick Up Celica 2.4L SOHC 22R 22RE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
03/1982-1982 TOYOTA CELICA 2.4L 236CC L4 SOHC, (8 VALVE), ENG CODE "22R,
22RE, 22REC"
03/1982-1982 TOYOTA PICK UP 2.4L 236CC L4 SOHC, (8 VALVE), ENG CODE "22R,
22RE, 22REC"

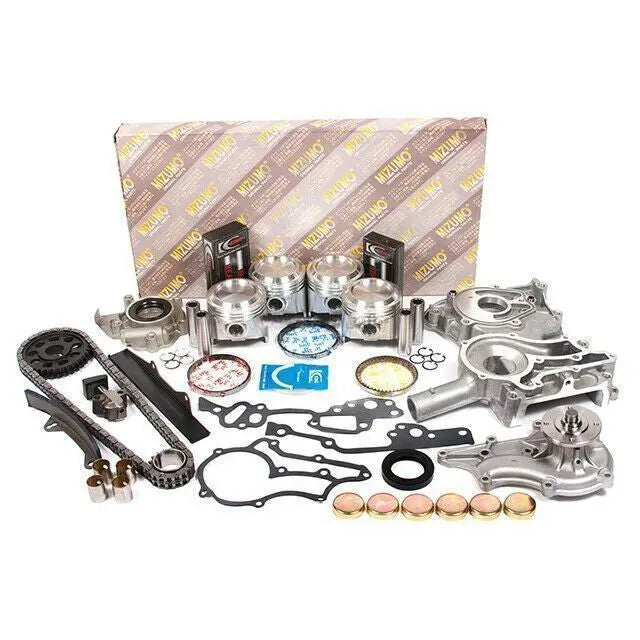

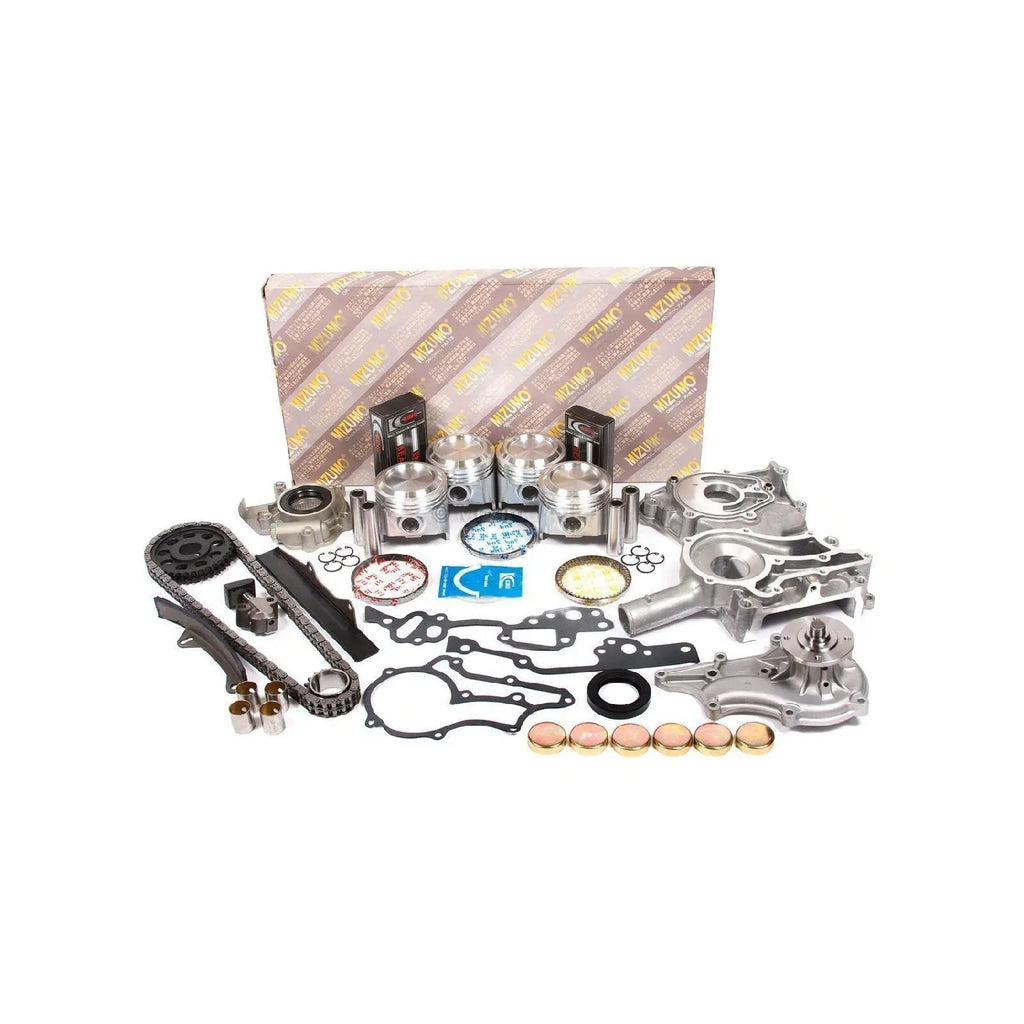

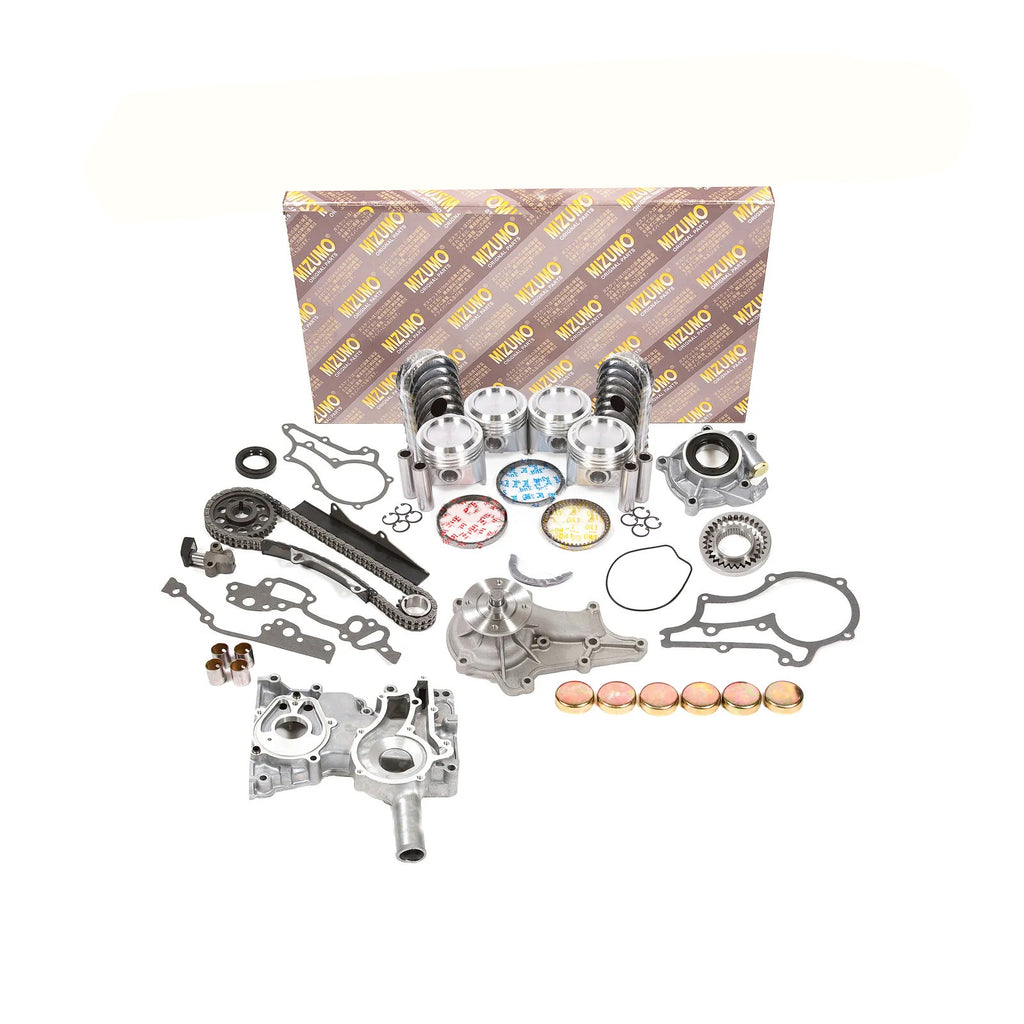

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 92.00mm
1st Group: 2.00mm
2nd Group: 2.50mm
Oil Ring: 4.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain (98 links, double row)
2 Metal Timing Guides (left and right)
1 Cam Sprocket
1 Crank Sprocket
1 Tensioner
1 Water Pump Gasket
1 Timing Cover Gasket
Water Pump w/ Gasket
Oil Pump
Timing Chain Cover (Length 11-5/16")
Freeze Plugs
Connecting Rod Pin Bushings

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2003](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2003&LH_TitleDesc=1&submit=)| MM| 92.000| 92.250| 92.500|
92.750| 93.000
IN| 3.622| 3.632| 3.642| 3.652| 3.661
Piston Ring Part| Piston Information
[RS2003](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2003&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2003
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 92.000| 3.622
Comp| 39.000| 1.535
| Dist.| 1| +
---|---|---
2| +
3|
| 1.500
---
6.500
| 0.059
---
0.256
Length| 92.500| 3.642
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
32.000| 1.260
Pin Length| 75.000| 2.953
Pin Diameter| 22.000| 0.866
1st| 2.000| 0.079
2nd| 2.500| 0.098
Oil Ring| 4.000| 0.157
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
