Engine Rebuild Kit Fit 03-06 Dodge Durango Ram 1500 2500 3500 5.7L HEMI

Engine Rebuild Kit Fit 03-06 Dodge Durango Ram 1500 2500 3500 5.7L HEMI.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 5086010AB, 5086011AB

Engine Rebuild Kit Fit 03-06 Dodge Durango Ram 1500 2500 3500 5.7L HEMI.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2004-2005 DODGE DURANGO 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "D"
2006 DODGE DURANGO 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "2, D"
2003-2005 DODGE RAM 1500 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "D"
2006 DODGE RAM 2500 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "2, D"
2003-2005 DODGE RAM 2500 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "D"
2006 DODGE RAM 3500 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "2, D"
2003-2005 DODGE RAM 3500 5.7L 345CID V8 OHV, (16 VALVE), VIN CODE "D"

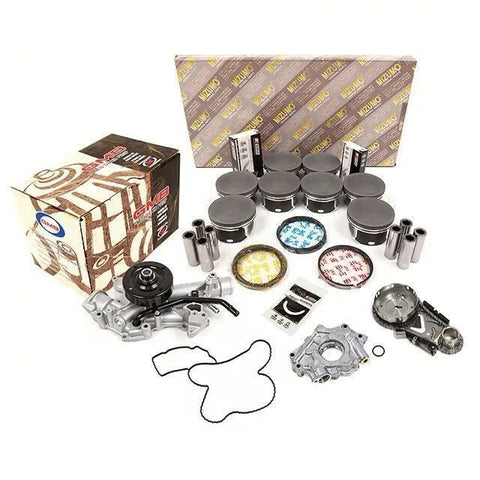

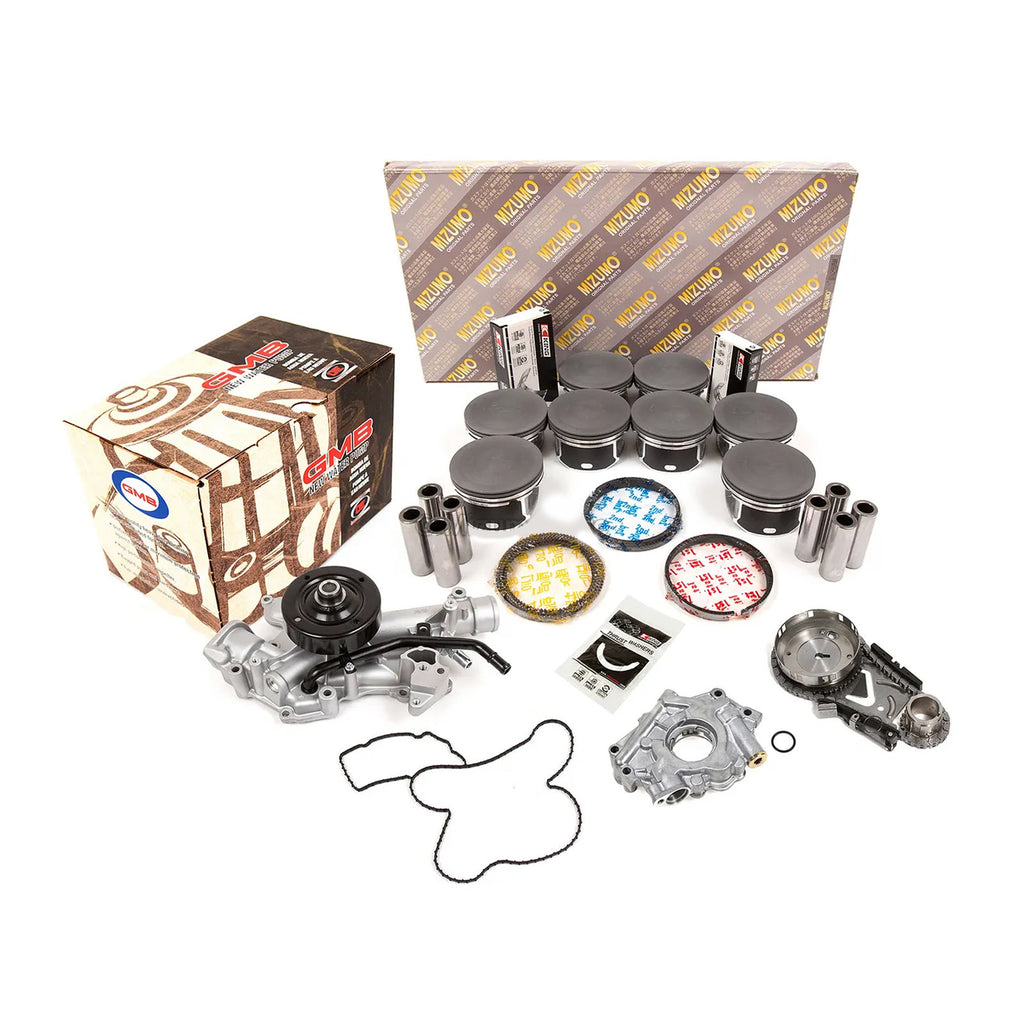

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
8 Pistons with Complete Ring Set (Sizes available: STD - Standard Size, or Oversized 0.50mm = 0.020")
Standard Bore Diameter: 99.50mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
8 Piston Wrist Pins
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
1 Timing Chain (86 link)
1 Tensioner Rail (plate, tensioner & guide)
1 Cam Sprocket (52 teeth)
1 Crank Sprocket (26 teeth)
1 GMB Water Pump w/ Gasket
1 Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5057](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5057&LH_TitleDesc=1&submit=)| MM| 99.500| 99.750|
100.000| 100.250| 100.500
IN| 3.917| 3.927| 3.937| 3.947| 3.957
Piston Ring Part| Piston Information
[RS5057](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5057&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS5057
D.jpg)
Specifications| MM| IN
Cylinder| 8
Bore| 99.500| 3.917
Comp| 30.700| 1.209
| Dist.| 1| +
---|---|---
2|
3|
| 4.000
---
| 0.157
---
Length| 58.700| 2.311
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
6.000| 0.236
Pin Length| 71.000| 2.795
Pin Diameter| 24.000| 0.945
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
