Engine Rebuild Kit Fit 02-06 Acura RSX Honda Civic VTEC 2.0L K20A3

  • Sale
  • Regular price $458.95
Shipping calculated at checkout.

 More payment options


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Engine Rebuild Kit Fit 02-06 Acura RSX Honda Civic VTEC 2.0L K20A3. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost. Replace Part :
13010-PNC-000, 13010-PNC-010

Engine Rebuild Kit Fit 02-06 Acura RSX Honda Civic VTEC 2.0L K20A3. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost.

Fits Following Models:
2002-2006 ACURA RSX 2.0L 1998CC 122CID L4 DOHC, (16 VALVE), ENG CODE
"K20A3"
2002-2005 HONDA CIVIC 2.0L 1998CC 122CID L4 DOHC, (16 VALVE), ENG CODE
"K20A3"

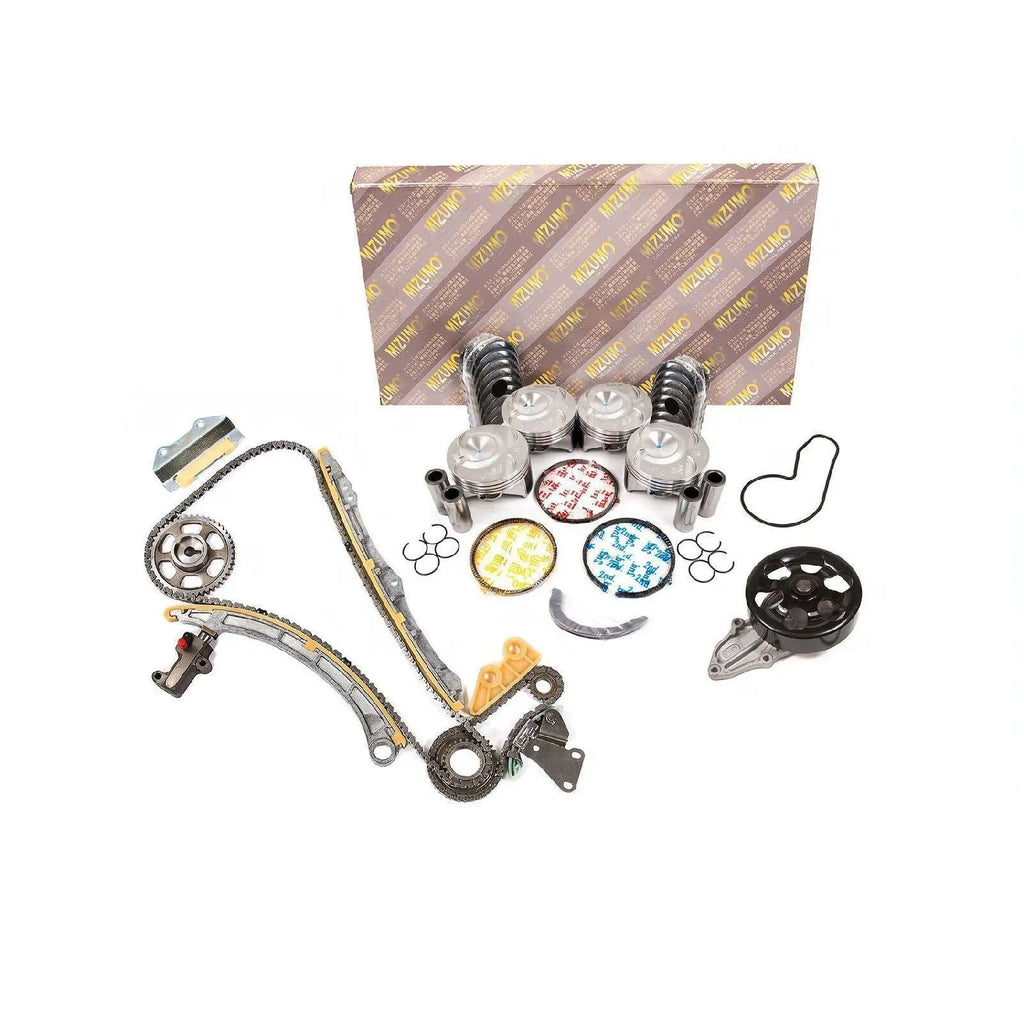

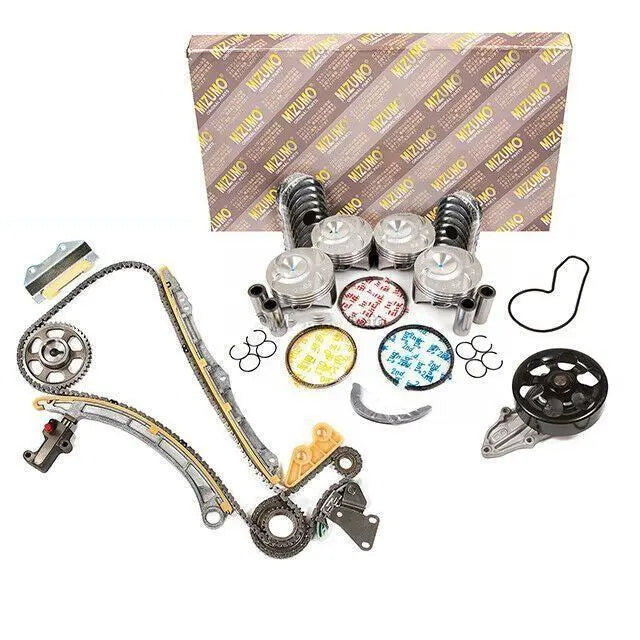

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 86.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing cam chain (170 link)
1 Cam sprocket exhaust (46 teeth - will not fit Acura Type-S)
1 Crank sprocket (combo 23T / 34T)
1 Cam chain tensioner
1 Upper fixed guide rail
1 Right tensioning guide rail
1 Left side fixed guide rail
1 Sprocket (oil pump drive sprocket - 17 teeth)
1 Oil pump chain (62 link - Fits Honda Civic)
1 Oil pump chain (64 link - Fits Acura RSX)
1 Oil pump tensioner
1 Oil pump guide rail
Cam sprocket intake / Actuator Assembly(code RBC / VTC / 46 teeth) - is not included
1 Water Pump w/ Gasket

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS4033](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS4033&LH_TitleDesc=1&submit=)| MM| 86.000| 86.250| 86.500|
86.750| 87.000
IN| 3.386| 3.396| 3.406| 3.415| 3.425
Piston Ring Part| Piston Information
[RS4033](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS4033&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4033
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4033.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 86.000| 3.386
Comp| 29.500| 1.161
| Dist.| 1| +
---|---|---
2| -
3|
| 2.500
---
2.400
| 0.098
---
0.094
Length| 54.000| 2.126
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| Image
---|---|---|---
Head| Skirt
NONE| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
5.000| 0.197
Pin Length| 52.200| 2.055
Pin Diameter| 21.965| 0.865
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.000| 0.079
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
