Engine Rebuild Kit Fit 02-05 Dodge Jeep Trucks 3.7L 226CID SOHC. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
2004-2005 DODGE DAKOTA 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" - NGC DESIGN
2004-2005 DODGE DURANGO 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" - NGC DESIGN
2004-2005 DODGE RAM 1500 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" - NGC DESIGN
2005 JEEP GRAND CHEROKEE 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" - NGC DESIGN
2004-2005 JEEP LIBERTY 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" - NGC DESIGN

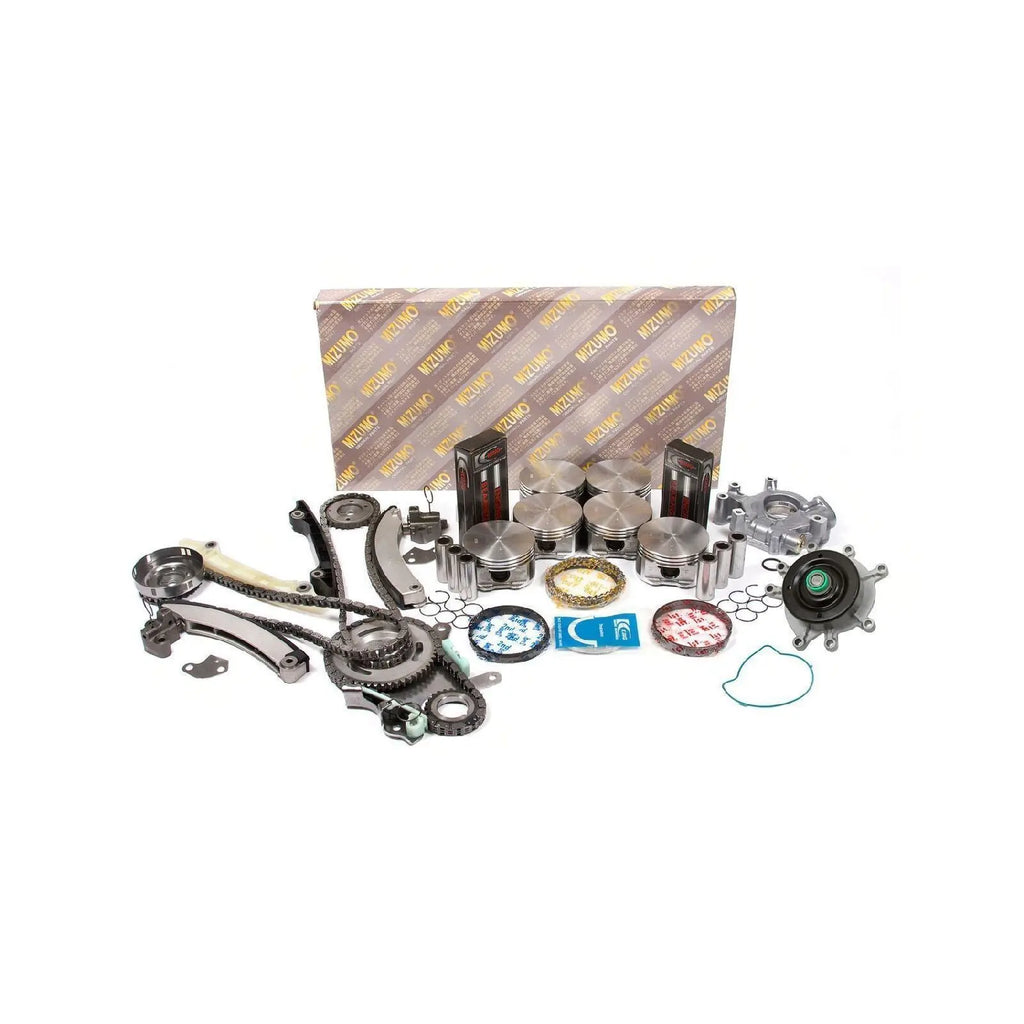

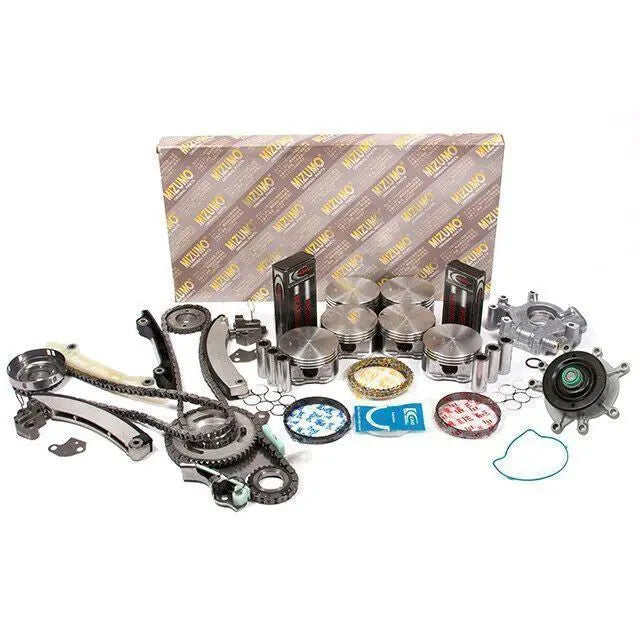

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
6 Pistons with Complete Ring Set (STD - Standard Size, or Oversized 0.75mm = 0.030")
Standard Bore Diameter: 93.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
12 Cir Clips
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
1 Timing Chain Lower (primary 70 links)
2 Timing Chain (cam drive 94 links)
2 Tensioner (left & right)
1 Guide Rail Right (right chain fixed rail)
1 Guide Rail Left (left chain fixed rail)
2 Guide Rail (left & right tensioner rail)
1 Cam Sprocket Right (26 teeth has reluctor ring)
1 Cam Sprocket Left ( 26 teeth - NGC power control module)
1 Crank Sprocket (25 teeth)
1 Idler Sprocket (primary 50 teeth)
Idler Sprocket & Blance Shaft Gears - are not included
Water Pump w/ Gasket
Oil Pump
