Engine Rebuild Kit Fit 00-08 Toyota Celica GT Corolla Chevrolet Pontiac 1ZZFE. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
2000-2002 CHEVROLET PRIZM 1.8L 110CID L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"
2003-2008 PONTIAC VIBE 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"
2000-2005 TOYOTA CELICA GT 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"
2000-2008 TOYOTA COROLLA 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"
2003-2008 TOYOTA MATRIX XR 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"
2000-2005 TOYOTA MR2 SPYDER 1.8L 1794CC L4 DOHC, (16 VALVE), ENG CODE "1ZZFE"

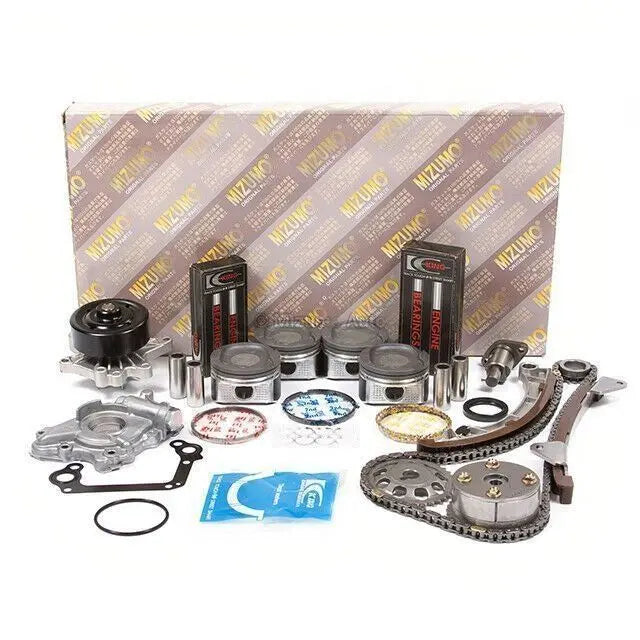

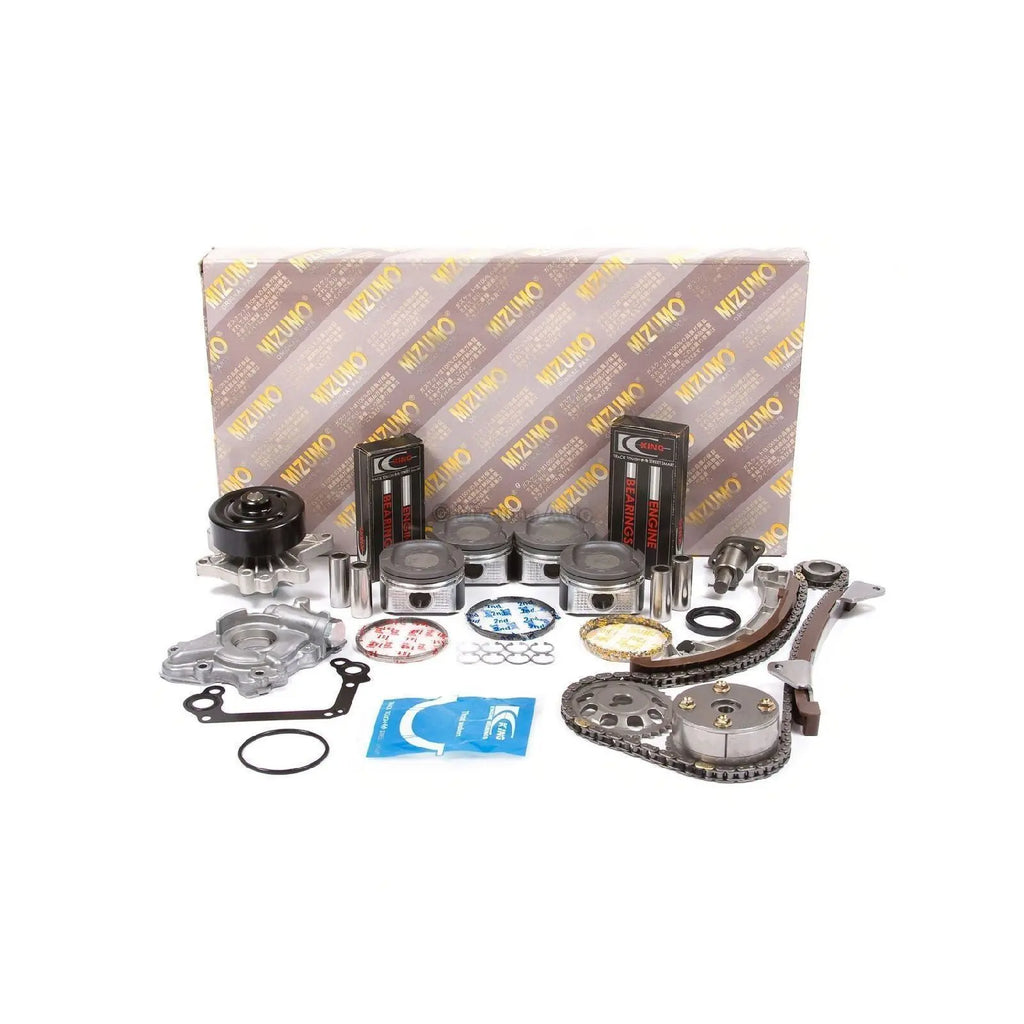

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (STD - Standard Size, or Oversized 0.50mm = 0.020")
Standard Bore Diameter: 79.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
8 Cir Clips
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
1 Timing Chain (130 links)
1 Tensioner (ratcheting - large body 1.118" O.D.)
1 Guide Rail (left fixed rail)
1 Guide Rail (used on right with tensioner)
1 Crank Sprocket (18 teeth)
1 Exhaust Cam Sprockets (36 teeth)
1 Intake Cam Sprocket / VVT-i Gear
Water Pump w/ Gasket
Oil Pump
