Engine Rebuild Kit Fit 00-06 Toyota Corolla Celica GTS Matrix 1.8L 2ZZGE

Engine Rebuild Kit Fit 00-06 Toyota Corolla Celica GTS Matrix 1.8L 2ZZGE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-88601

Engine Rebuild Kit Fit 00-06 Toyota Corolla Celica GTS Matrix 1.8L 2ZZGE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2003-2006 PONTIAC VIBE GT 1.8L 1795CC L4 DOHC, (16 VALVE), ENG CODE
"2ZZGE"
2000-2005 TOYOTA CELICA GTS 1.8L 1795CC L4 DOHC, (16 VALVE), ENG CODE
"2ZZGE"
2005-2006 TOYOTA COROLLA GTS 1.8L 1795CC L4 DOHC, (16 VALVE), ENG CODE
"2ZZGE"
2003-2006 TOYOTA MATRIX XRS 1.8L 1795CC L4 DOHC, (16 VALVE), ENG CODE
"2ZZGE"

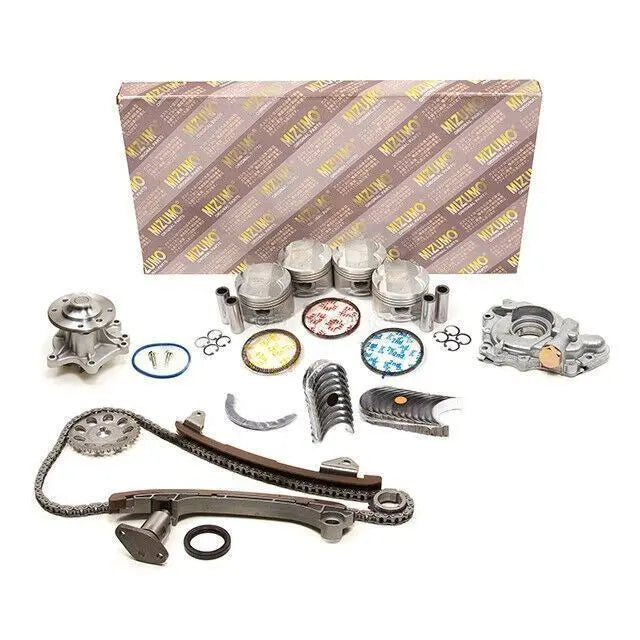

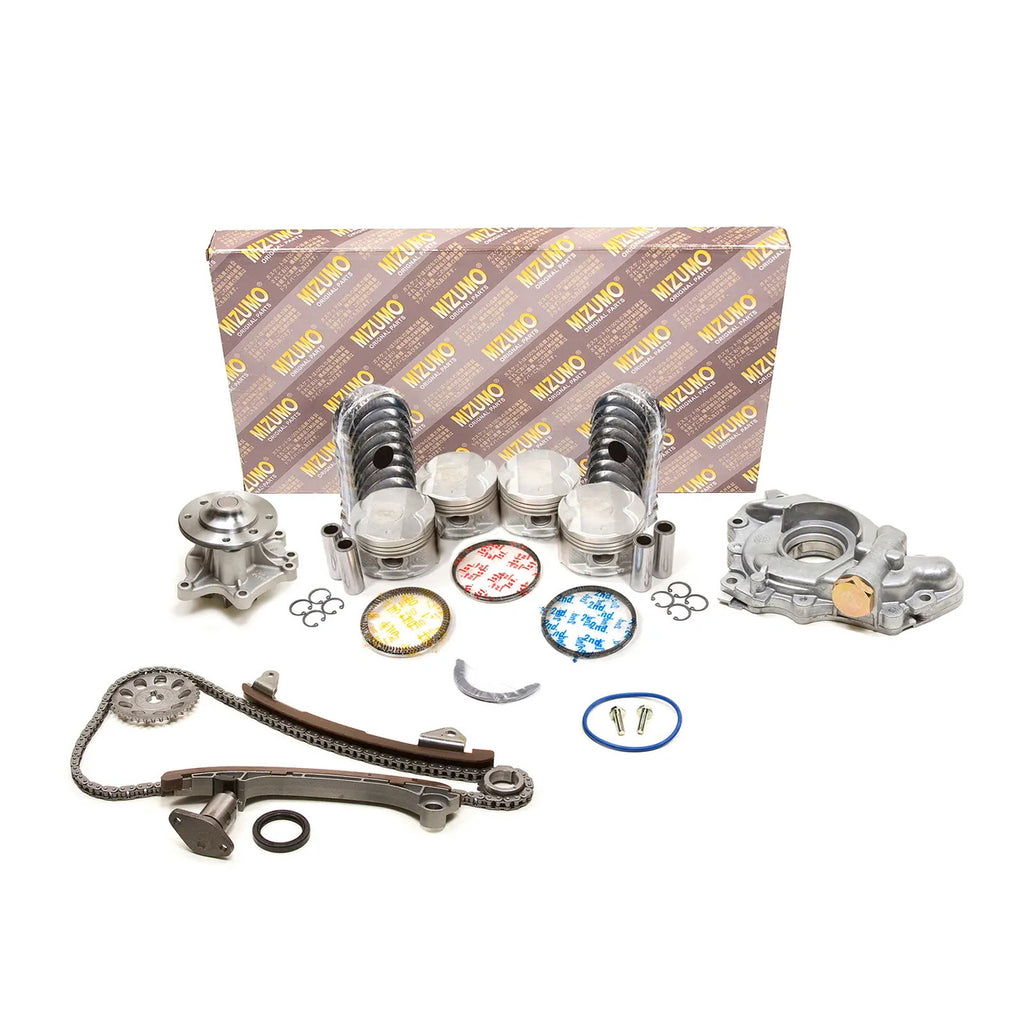

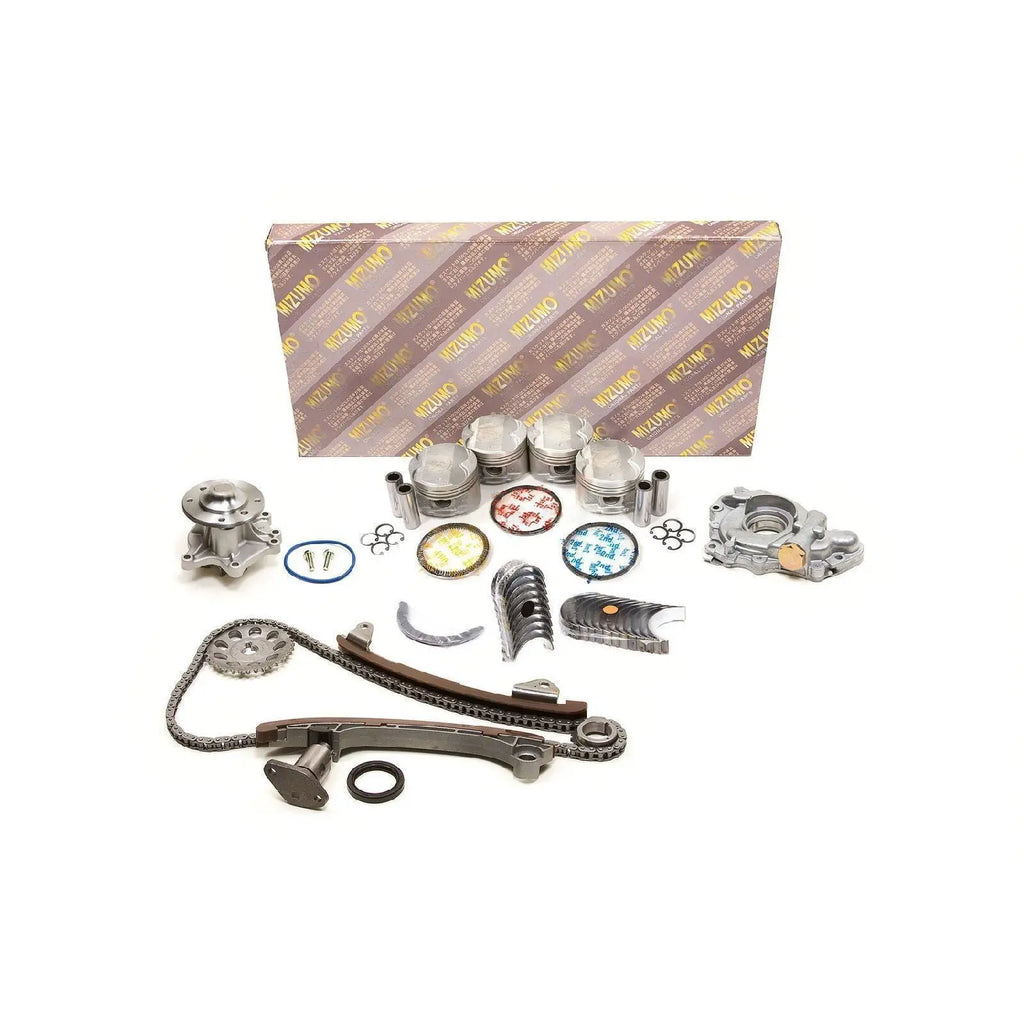

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 82.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain (136 links)
1 Tensioner (ratcheting style)
1 Guide Rail (left side-fixed)
1 Guide Rail (right-tensioner rail)
1 Crank Sprocket (18 teeth)
1 Timing Cover Seal
1 Cam Sprocket Exhaust
Intake Cam Sprocket Right / VVTi Gear - is not included
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2042](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2042&LH_TitleDesc=1&submit=)| MM| 82.000| 82.250| 82.500|
82.750| 83.000
IN| 3.228| 3.238| 3.248| 3.258| 3.268
Piston Ring Part| Piston Information
[RS2042](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2042&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2042
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 82.000| 3.228
Comp| 31.300| 1.232
| Dist.| 1| +
---|---|---
2|
3|
| 1.400
---
| 0.055
---
Length| 57.700| 2.272
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
25.000| 0.984
Pin Length| 56.580| 2.228
Pin Diameter| 20.012| 0.788
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
