Warranty: 1 Year
UPC: Does not apply
Manufacturer Part Number: EC83772701CP
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Type: Radiator Condenser Cooling Fan
Applicable Regions: US
Other Part Number: 12v Electric car Radiator Condenser Cooling Fan
Superseded Part Number: Engine Radiator Condenser Cooling Fan

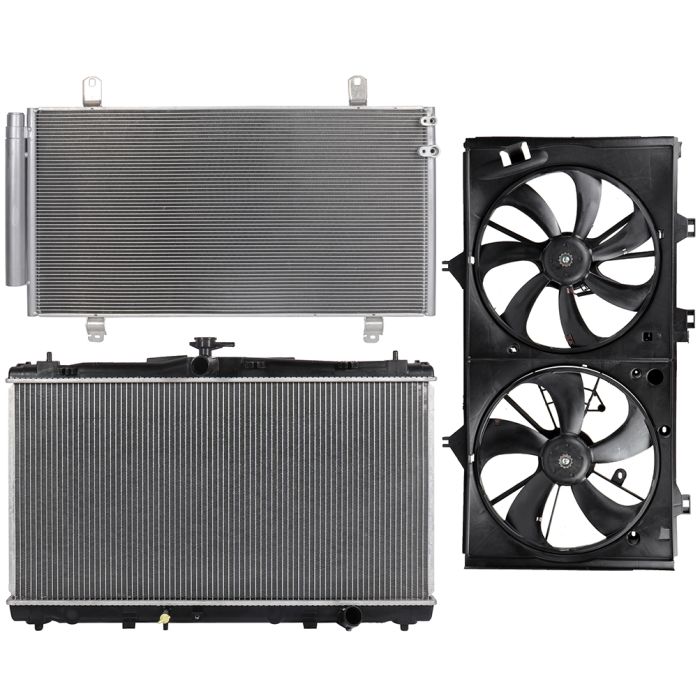

Package Include: 1X Cooling Fan,1X Condenser,1X Radiator
Cooling Fan Plug Pin Number: 2/2
Cooling Fan CFM: 1137
Cooling Fan Amp Draw: 5.2/5.2
Radiator Height(inch): 30.24
Radiator Width(inch): 15.75
Radiator Thickness(inch): 0.63
Condenser Height(inch): 14.82
Condenser Width(inch): 28.54
Condenser Thickness(inch): 0.63
Core Material: Aluminum
Tank Material: Plastic
Quantity: 1pcs Radiator
3. Remove the old radiator
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
The radiator cooling fan is an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.
Step 1: Locate the Radiator Cooling Fan
Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.
Step 2: Disconnect the Power Supply
On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
Step 3: Remove the Fan Housing
Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.
Step 4: Remove the Radiator Cooling Fan and the Fan Motor
The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.
Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor
Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.
Do please keep children and pets away when replacing the radiator)
? project operation, the vehicle normal temperature 60 to 80 degrees.
? add detergent if the tank is too full can take some antifreeze.
Information About AC Condenser
1.Such condensers typically also use a fan to force air through the heat sink and away from the tropics. Refrigeration principle of the general refrigerator The function of the compressor is to compress the steam with lower pressure into steam with higher pressure, so that the volume of the steam is reduced and the pressure is increased.
2.The compressor draws in the lower pressure working fluid vapor from the evaporator, causes the pressure to rise, and then sends it to the condenser, which is condensed into a higher pressure liquid in the condenser, and is throttled after the throttling valve becomes a pressure. After the low liquid is sent to the evaporator, it absorbs heat in the evaporator and evaporates to become a lower pressure steam, thereby completing the refrigeration cycle.
