Electric E85 Racing Fuel Pump F90000267 450LPH In-tank Assembly with Install Kit

  • Sale
  • Regular price $53.95
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***


Capable of replacing almost any fuel pump with minor to moderate adjustments
and modification.


Condition: New

Warranty: one year

Design: Intank Turbine Style (Specifically designed for either E85 or

Strainer Included: Yes

(final fuel pressure set by regulator)

Flow: 450LPH.

Minimum Voltage: 12V.

Operating Pressure: 35-120 PSI.

Part Number: For Walbro F90000267 (Also known as TIA485-2)

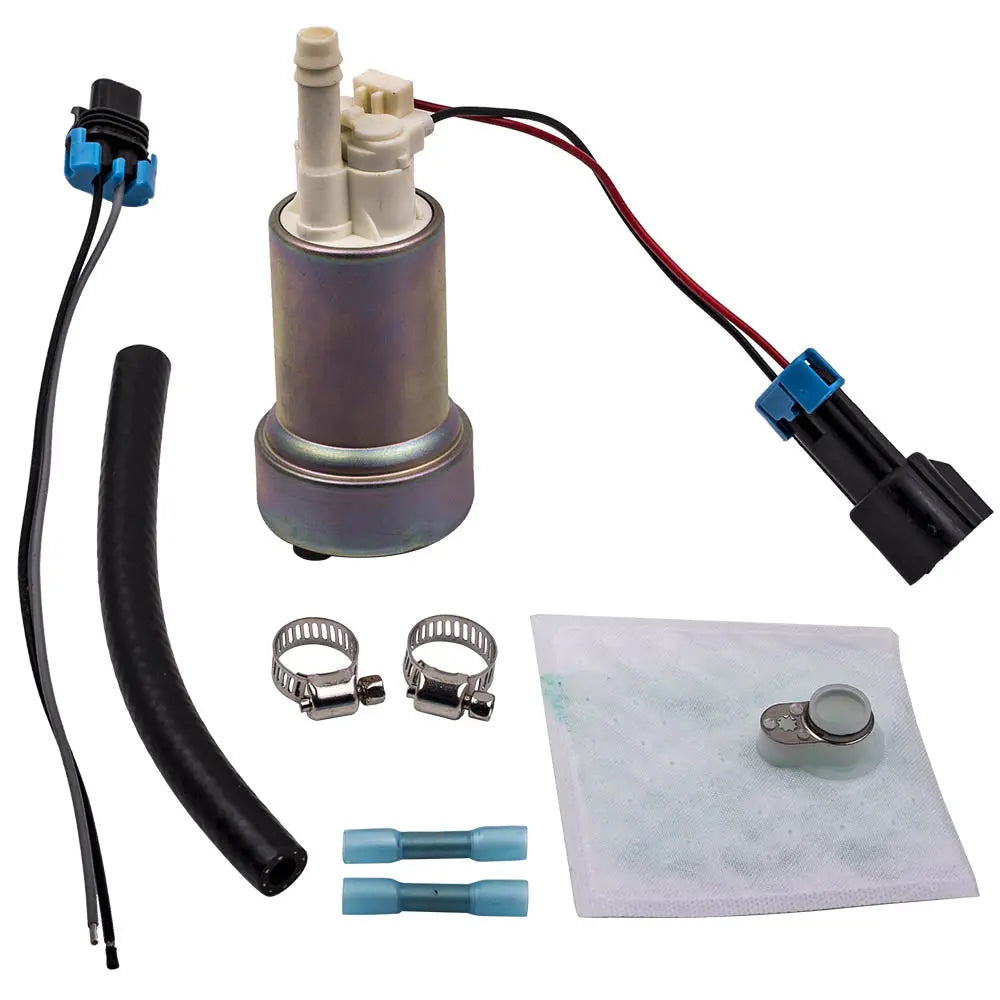

Packing Include:

1 x Automotive F90000267 internal E85 HP RACING fuel pump

1 x 400-0085 Installation kit Exactly as pictured

1x 125-190 fuel strainer.

1x fuel hose.

1x harness pigtail.

2 clamps

2 wire connectors


-Designed for engines with more than 750 HP

-OEM Technology designed & developed for E85

-Supplied with fuel pump & filter

-Outperforms all current market in-tank fuel pumps.

-Dual channel turbine design for maximum efficiency under high-pressure and high-temperature applications.

-The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.

-This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps.


-Requires modifications to system wiring, fuel lines and the fuel module, and should be professionally installed. (No instruction included).

-For any needs please contact us.
