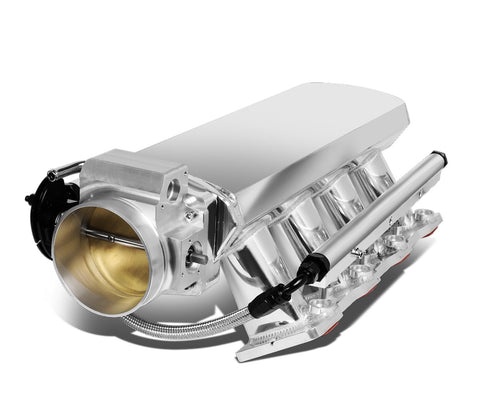

LS LSX LS1 LS6 Short Fabricated Intake Manifold Kit + 92mm Throttle Body & Fuel Rails

  • Sale
  • $439.95
  • Regular price $499.95
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

These are the new 3mm thick intakes and are built for up to 30lbs of boost.

*THROTTLE BODY 92mm AND FUEL RAILS ARE INCLUDED
These will fit cathedral style LS1 LS2 LS6 4.8 5.3 6.0 heads
Intake Manifold Height: 9.00 inches (approx. 3 inches higher than stock)
Material Thickness: 3 millimeters
Throttle Body Opening: 92 through 102 millimeters
Throttle Body: 92mm
Intake total length: 20 inches
3/4 high flow fuel rails: 2 included
Vacuum ports: 3
Fabrication: TIG Welded Aluminum
Gaskets: Included
Hardware: Included
Fuel rails: Included
Fuel crossover line: Included

Throttle cable bracket is a Holley part 20-148 and is not included.
This intake will fit cathedral port LS1/LS2/LS6 heads

All aftermarket Intakes Including Holley, Edelbrock, etc... are going to require rerouting
of vacuum lines, and minor adjustments to fuel lines and sensors to make work on a certain applications.

***NOTE: PLEASE NOTE FACTORY VALLEY COVER MAY NEED TO BE MODIFIED TO FIT THE INTAKE MANIFOLD. FUEL RAILS WILL BE BLACK, POLISHED ARE NO LONGER IN PRODUCTION.

***NOTE: PLEASE NOTE FACTORY VALLEY COVER MAY NEED TO BE MODIFIED TO FIT THE INTAKE MANIFOLD.


Product Disclaimer: This product is not designed to meet any emissions/noise standards and is not for street or highway use. This product is not certified and may not be legal for use on emissions-controlled vehicles in any country/jurisdiction. Any other use, including recreational off-road use, may be in violation of local, state, and federal laws. Dynamic Performance Tuning does not implicitly or explicitly confirm the legality of using any products it sells on public roads; that is entirely the responsibility of the customer. Dynamic Performance Tuning will not ship CARB restricted products into CARB restricted areas under any circumstances. ***OFF-ROAD USE ONLY***
