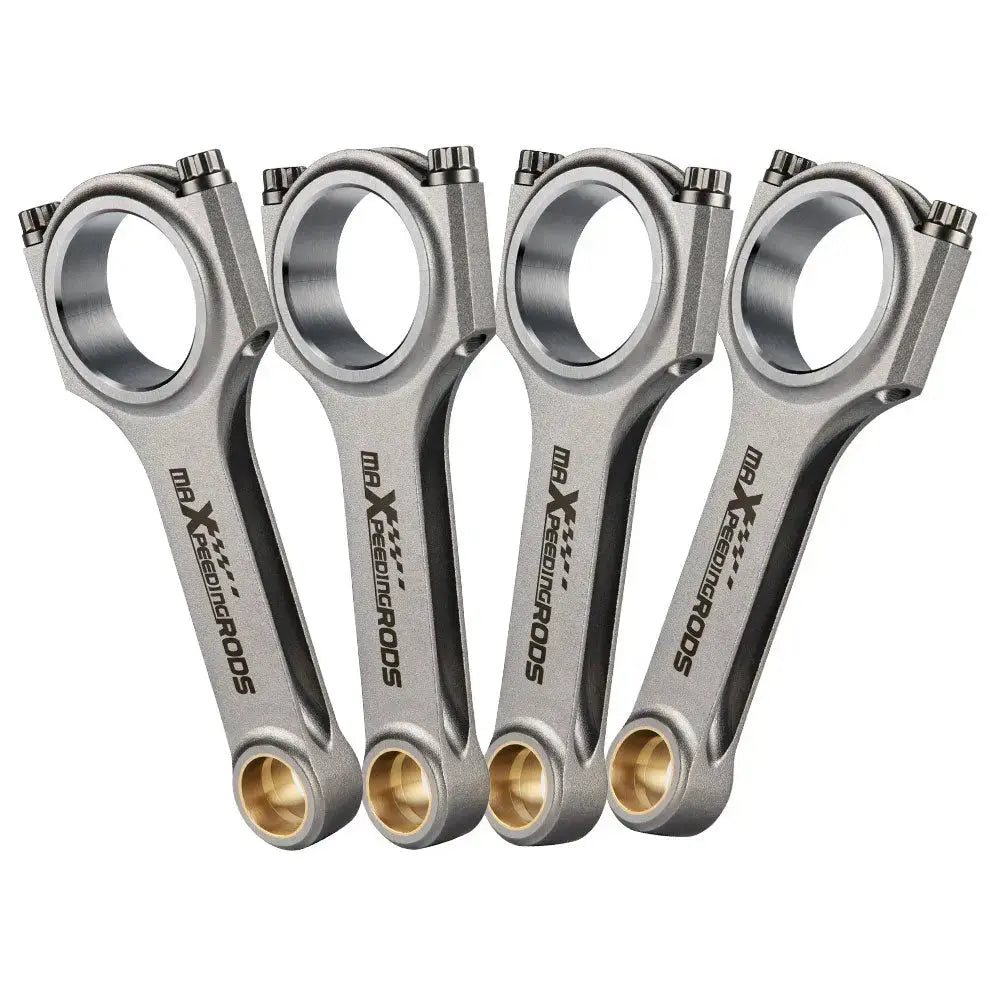

Conrods+ARP Bolts Connecting Rods compatible for VW 1.9L TDI PD130 PD150 1.9 8v 144mm

  • Sale
  • Regular price $600.95
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Application

Compatible for VW 1.9 TDI PD130 PD150
Compatible for VW 2.0 TDI PD140 / PD170 ASZ BKD
Fitment details:
Compatible for Audi A3 / S3 / RS3 8L1(MK1) 1996 - 2003 Hatchback 1.9 TDI
Compatible for AUDI A4 (8E,B6) 2000-2004 - 2.0/1.9 TDI
Compatible for AUDI A6 (4B,C5) 1997-2005 - 1.9 TDI
Compatible for AUDI A6 (4F) 2004-2011 - 2.0 TDI
Compatible for Seat Leon 1M1 1999 - 2006 Hatchback 1.9 TDI
Compatible for SEAT Toledo (1M) 1999-2005 - 1.9 TDI
Compatible for SKODA Octavia (1U2) 1996-2010 - 1.9 TDI
Compatible for SKODA Superb (3U4) 2002-2008 - 1.9/2.0 TDI
Compatible for Skoda Fabia I 6Y2 1999 - 2008 Hatchback 1.9 TDI
Compatible for VOLKSWAGEN Bora (1J2) 1998-2005 - 1.9 TDI
Compatible for VW Golf MK IV 1997 - 2006 1.9/2.0 TDI
Compatible for VW Golf MK III 1991- 1999 1.9/2.0 TDI
Compatible for VW Golf Cabriolet MK III 1993 - 2002 Convertible 1.9/2.0 TDI
Compatible for VW Passat B5 GP (3BG) 2001-2005 1.9L/2.0 TDI
Compatible for VW Polo 9N_ 2001- 2009 Hatchback 1.9 TDI
(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: Genuine ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 144mm/5.669in
Big end diameter: 53.7mm/2.114in
Small end diameter: 26mm/1.024in (taper small end)
Big end width: 24.95mm/0.982in
Small end width: 24.95mm/0.982in

Feature

\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy
to help determine your requirements and develop a solution with you to satisfy
your needs.
