Application
Compatible for Peugeot 207 RC / 308
Compatible for MINI Cooper S 1.6T EP6DTS / EP6CDTS
Compatible for BMW N13 / N14 1.6T
Fitment Details:
Engine: For the THP175 (EP6DTS, later EP6CDTS)
2006–2010 compatible for Peugeot 207 RC
2007–2010 compatible for MINI Cooper S
2007-2011 compatible for MINI JCW (154 kW version of engine - only used by
compatible for BMW)
2008–on compatible for Peugeot 308
2010–on compatible for Citroën DS3 Racing - EP6CDTS - 202 hp
2012–2015 compatible for BMW 1 Series F20 114i 75 kW version
2011–2015 compatible for BMW 1 Series F20 116i 100 kW version
2012–2015 compatible for BMW 3 Series F30 316i 100 kW version
2011–2015 compatible for BMW 1 Series F20 118i 125 kW version
2012–2015 compatible for BMW 3 Series F30 320i ED 125 kW version
2015-2016 compatible for BMW 1 Series F20 120i 130 kW version
Specification

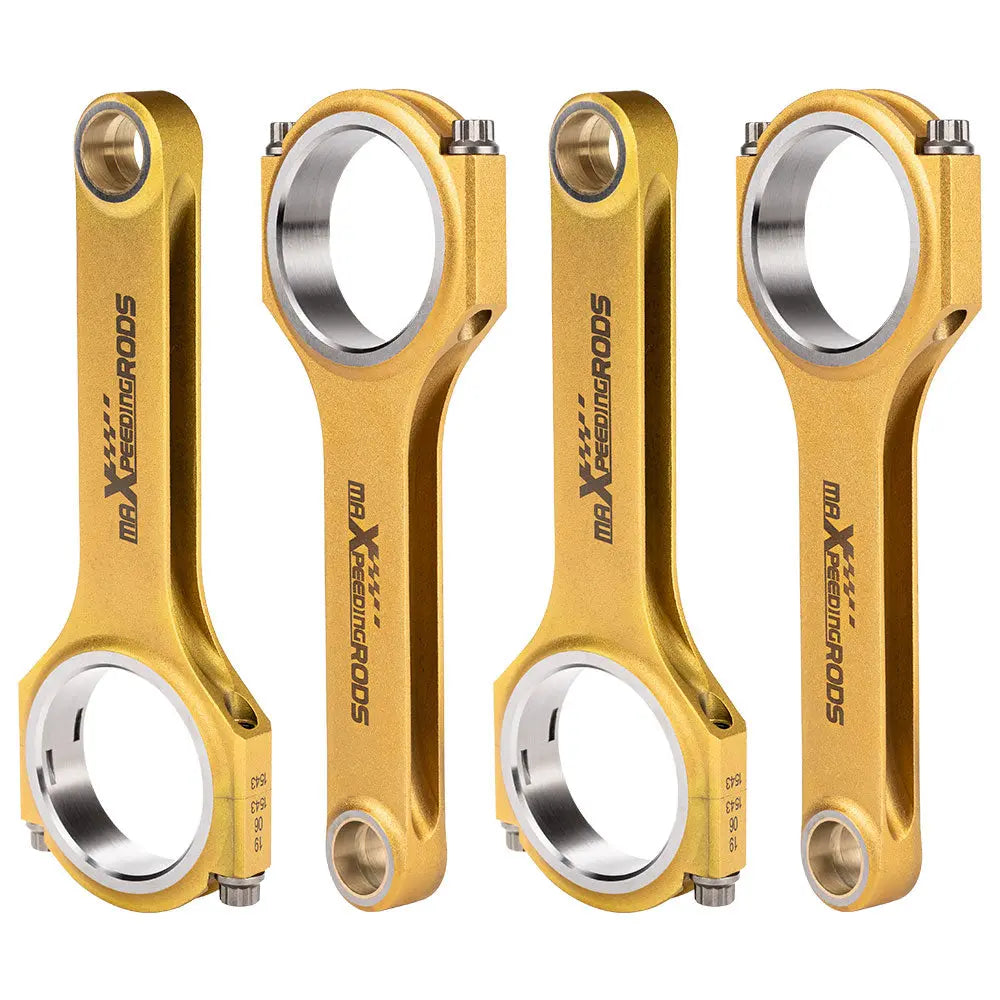

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8" ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
Warranty:one year warranty for any manufacture defect
Dimensions
Center to center length: 138.5 mm
Big end diameter: 48mm
Small end diameter: 20mm
Big end width: 20.8mm
Small end width: 20.8mm
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
-Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
Professional installation is highly recommended (No Instruction Included)
Tapered Pin End / Also fits OEM pistons
