Application
Compatible for Audi TT 8N3 2003-2006 Coupe 3.2 24V VR6 quattro
Compatible for Audi TT Roadster 8N9 2003-2006 Convertible 3.2 VR6 quattro
Compatible for VW Bora 1J6 2000 Estate 2.8 VR6
Compatible for VW Corrado 53I 1991-1995 Coupe 2.9 VR6
Compatible for VW Corrado 1991-1995 2.8 12V VR6
Compatible for VW Golf MK III 1992 Hatchback 2.8 VR6
Compatible for VW Golf MK III 1998-1999 Estate 2.9 VR6 Syncro
Compatible for VW - Golf 1999-2005 (MK4) 2.8L 12V VR6 & 2.8L 24V VR6 engines
Compatible for VW Passat 3A2, 35I 1991-1996 Saloon 2.8 VR6
Compatible for VW Passat 3A5, 35I 1991-1997 Estate 2.8 VR6, 2.9 VR6 Syncro
Compatible for VW Sharan 7M8, 7M9, 7M6 1995-2000 MPV 2.8 VR6, 2.8 VR6 Syncro
Compatible for VW Transporter MK IV 1996-2003 Box 2.8 VR6
Compatible for VW Transporter MK IV 2000-2003 Platform/Chassis 2792ccm 204HP
150KW (Petrol)
Compatible for VW Transporter/Caravelle MK IV 1996-2003 Bus 2.8 VR6
Compatible for VW Vento 1H2 1992-1998 Saloon 2.8 VR6
(Note: Please confirm the dimensions before purchase the connecting Rods)
Specification
Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

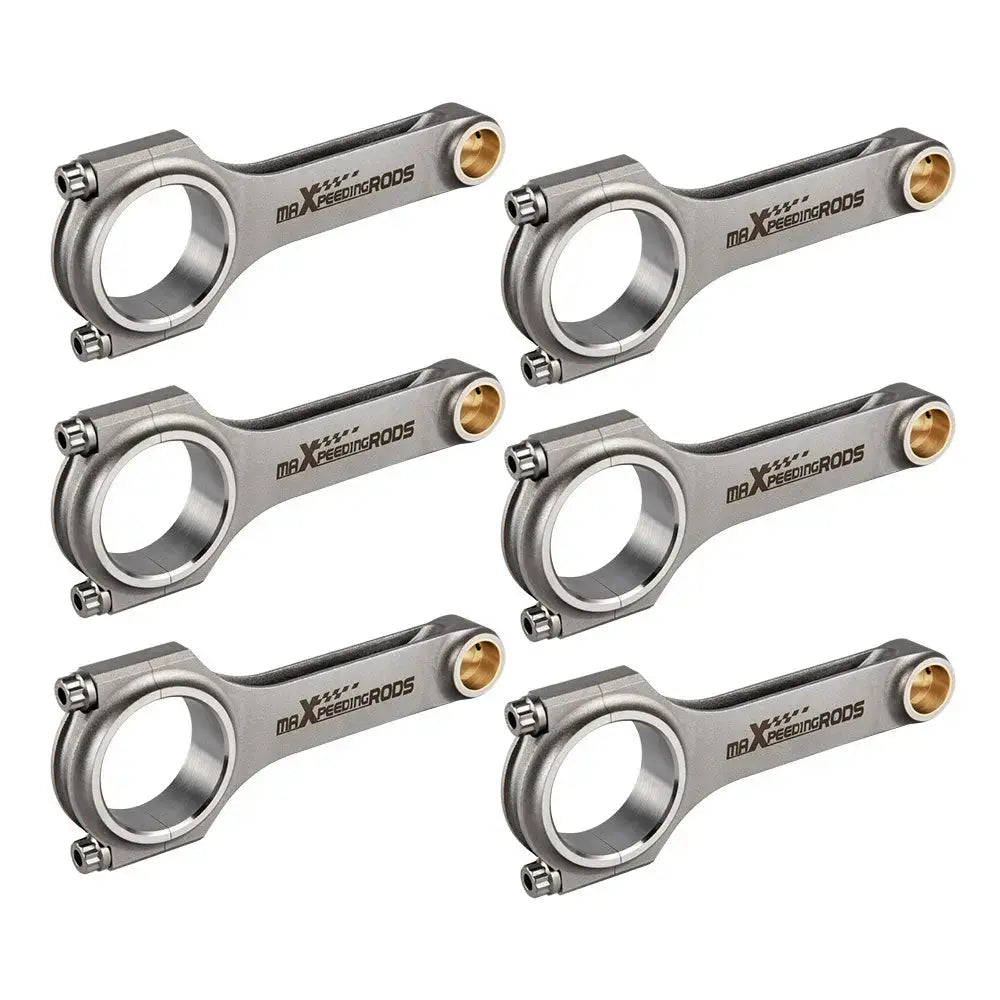

H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Advertised Horsepower Rating:200HP/piece
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 164mm/6.457in
Big end diameter: 56.8mm/2.236in
Small end diameter: 20mm/0.787in
Big end width: 19.9mm/0.783in
Small end width: 19.9mm/0.783in
Feature
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Note
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service:If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
