Application
Compatible for Audi RS2 Quattro 2.2 L 5-cylinder 20v turbo
Fitment Details:
Compatible for Audi 80 8C, B4 1993-1994 Saloon S2 quattro 2226ccm 230HP
Compatible for Audi 80 8C, B4 1994-1995 Estate RS2 quattro 2226ccm 315HP
Specification

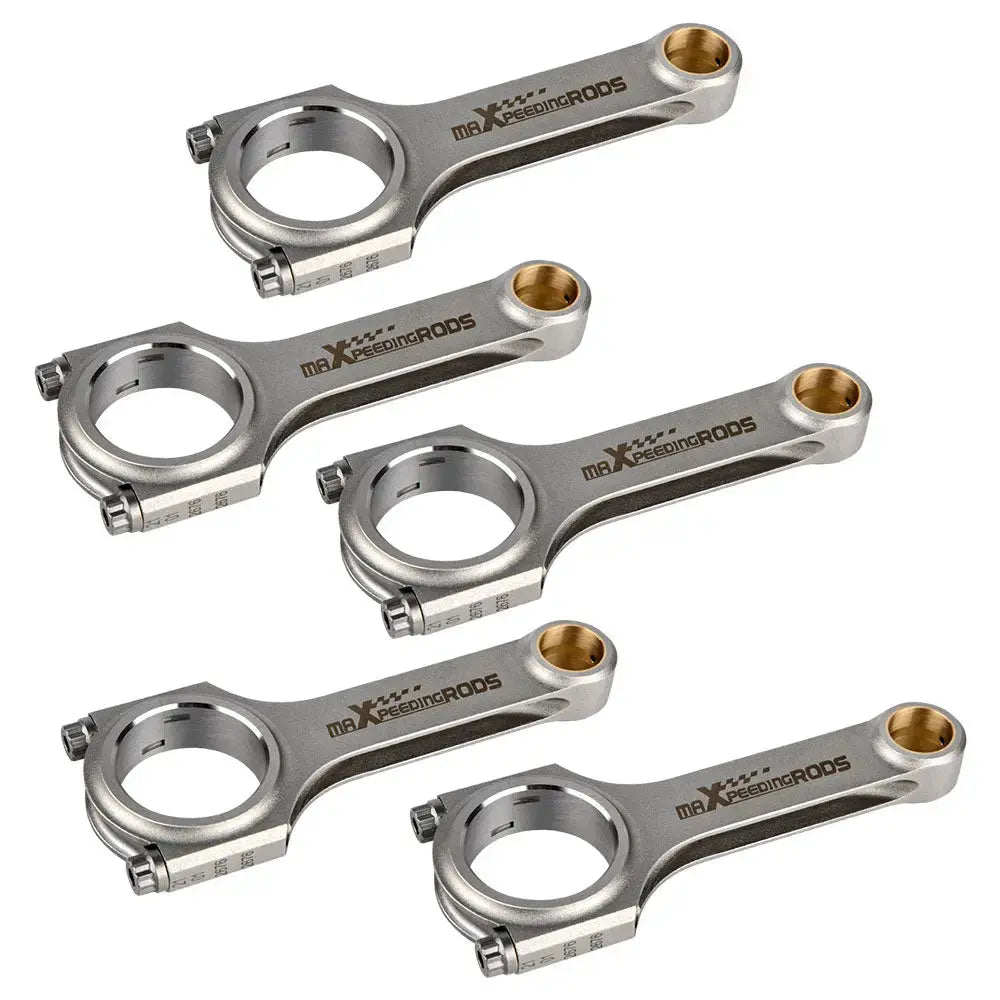

H-beam Conrods Quantity: 5 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Bolts Size: ARP 2000 3/8" bolts
Advertised Horsepower Rating：200HP/piece
Top acceleration: 9000rpm
The connecting rods all include ARP 2000 bolts, which are rated at 220,000
psi, and the optional ARP L19 material at 260,000 psi is available as an
upgraded product.
Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 144mm/≈5.66929 in.
Big end diameter: 50.6mm/≈1.99212 in.
Small end diameter: 20mm/≈0.7874 in.
Big end width: 24.9mm/≈0.98032 in.
Small end width: 24.9mm/≈0.98032 in.
Feature
1\. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and
durability, dedicated for Racing
2\. Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade
3\. H-Beam design reduces weight without compromising strength
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened
finish to remove potential for stress risers
5.100% CNC machined,Precision rod cap alignment dowels
6.Bores finished to +/- .01 mm
7.Balanced to within +/- 1 g per rod
8\. Each rod is magnetic particle tested to ensure free of flaws
9.100% X-rayed, sonic tested
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy
to help determine your requirements and develop a solution with you to satisfy
your needs.
