Introduction
MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Application
Compatible for BMW 5 series (E60)2004-2010 Sedan AWD
model:525xi,528i xDrive,528xi,530xi,535i xDrive,535xi
Will Not Fit Models with Air Suspension
Specification
Top mounts: front - pillow ball top mounts
rear - rubber top mounts
Damping: not available
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 200mm
Spring length Rear: 200mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 550mm-580mm
Coilover overall length Rear: 500mm-575mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold
Package included

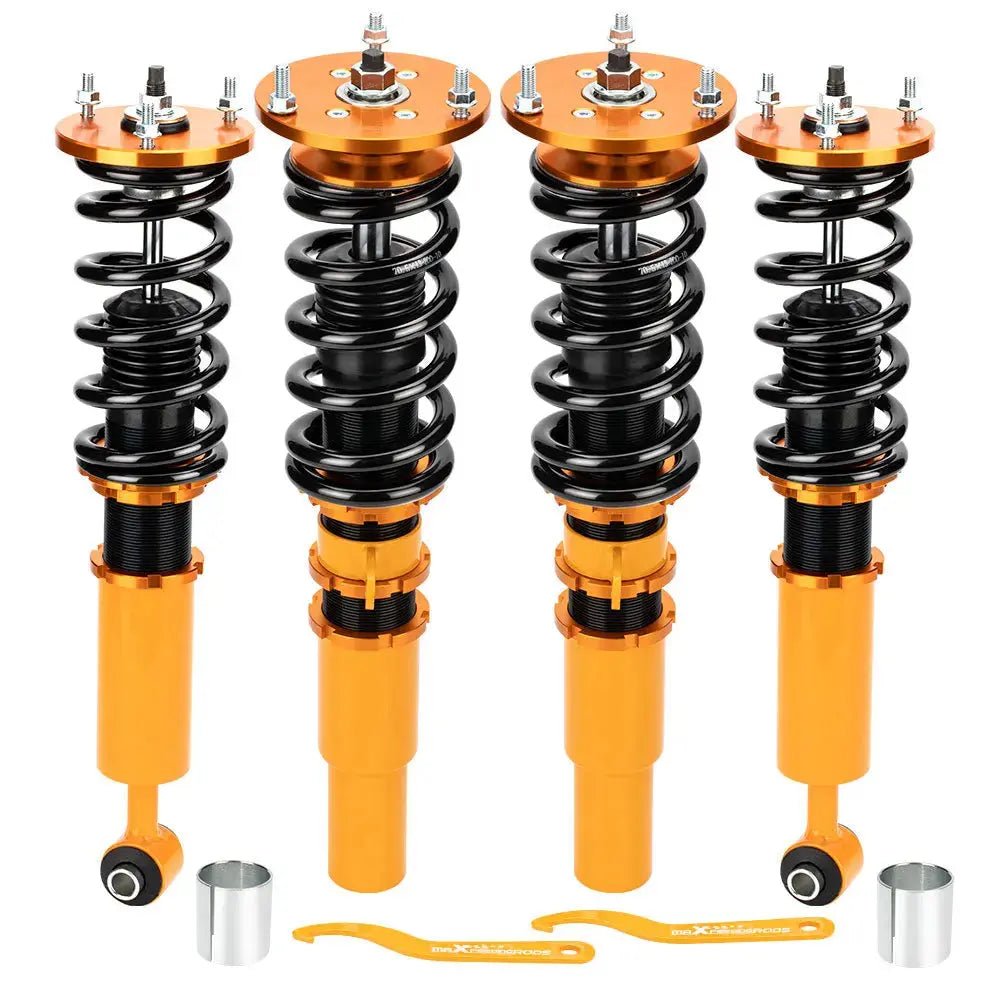

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment
Dimension
weight: 26500g
size: 71*51*21 cm
Feature
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber.
3. Separate height adjustment does not affect damper stroke.
4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
5. Height Adjustment tools included.
6. Pillow ball top mount - It improves the steering feel and response.
7. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8. Steel shock bodies with special surface treatment to improve the durability.
9. Full rebuildable.
