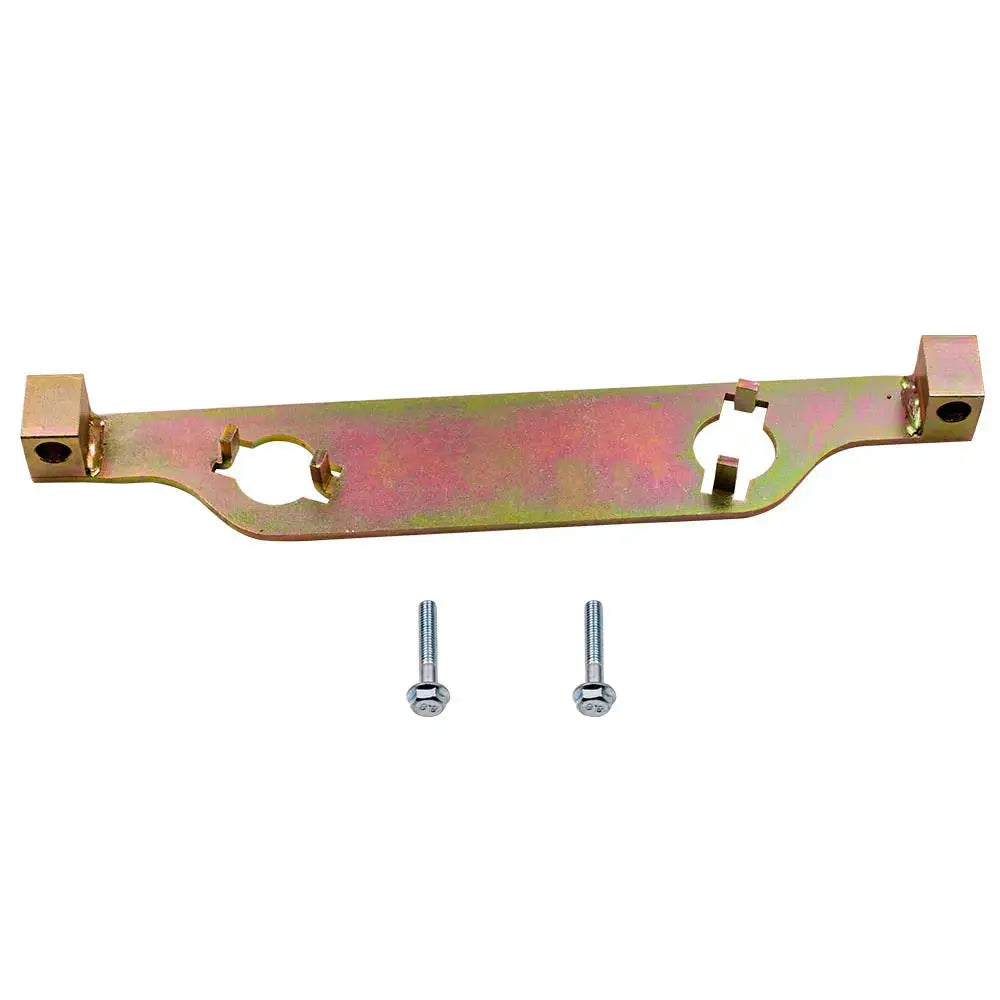

Cam Phaser Retainer Camshaft Actuator Locking Tool compatible for Buick Lacrosse 2.0L 2.4L

  • Sale
  • Regular price $49.95
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***


2006-2009 compatible for Buick Lacrosse
2009-2013 compatible for Buick New Regal,
2010-2013 compatible for Buick New LACROSSE, 11-12SLS, 11-13GL8GL8
FirstlandGL8S Captiva
2012-2013 compatible for Chevrolet Malibu


Material: Carbon Tool Steel
Package Including:1 X Cam Retainer, 2 X Hexagon Bolts

Tool Use Method

Remove timing chain guide bolt, then guide plate.
Remove timing chain tensioner Rotary intake camshaft actuator to install this
locking tool
The lock tool mounted to the cylinder cover and tighten to 10 N-m. If the
intake camshaft actuator independently of the camshaft and did not move the
lock, the counterclockwise rotation of the intake camshaft, the locking tool
fixing actuator, the actuator locking on the cam.
Loosen intake camshaft actuator bolt.
Loosen exhaust camshaft actuator bolt.
Remove the Camshaft Actuator Locking Tool


Marking chain and actuator is very important in operating procedures. Before
marking the actuator and chain, the oil must be removed from the camshaft
actuator and timing chain.
