BOLT-ON RADIATOR BRACKET KIT FOR K-SWAP K-SERIES 1992-2000 HONDA CIVIC MOTOR-K
Steel Radiator Bolt On Bracket Kit
K-Swap for ALL K20-K24 Engine
All Models: EG, DC2, EK 1992-2000 HONDA CIVIC

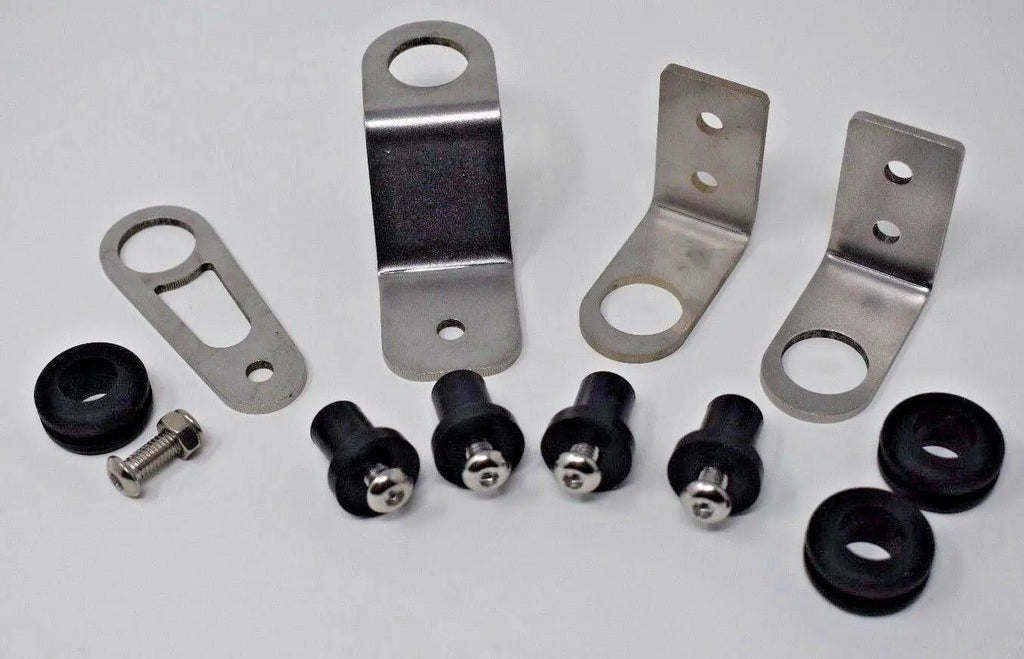

We have designed a direct bolt-on radiator bracket system for your K-swapped chassis. Relocating your radiator has never been so easy! These brackets bolt up to the oem upper and lower rad support, allowing you to easily mount your radiator on the driver side of the engine bay. Our universal kit includes 2 different top brackets, one for the EG chassis and one for the EK/DC2 chassis. The kits come complete with zinc plated hardware. The upper radiator bracket is powder coated in silver. The lower brackets are stainless steel and use quality polyurethane grommets. It really doesnâ€™t get any easierâ€¦
The wellnuts slip through a drilled hole in your lower rad support. When the mounting bolt is then tightened down, it mushrooms the well nut at behind creating a secure mounting point for your new rad supports.
MOUNTING BRACKET HARDWARE INSTALLATION SAMPLE:
1.) STARTING WITH A 1/8â€ DRILL BIT, CAREFULLY DRILL THE HOLE YOU JUST FINISHED MARKING.
2.) AFTER THAT, YOU CAN DRILL THE HOLE TO THE ½â€ FINAL SIZE.
3.) NEXT, INSERT THE WELL-NUT INTO THE DRILLED HOLE.
4.) TIGHTEN THE M6 BOLT
