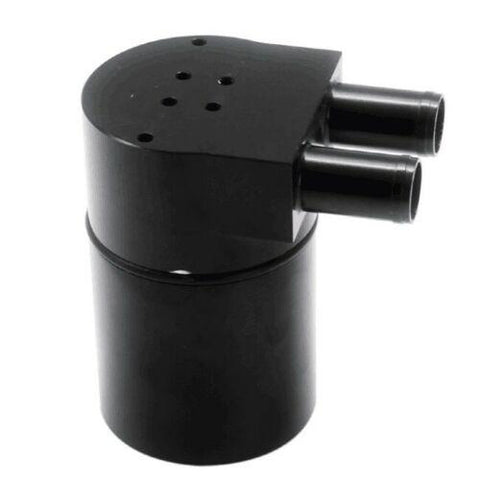

BMW 135i 335i 335xi 1M-Coupe VAGTuning Oil Catch Can for N54 Engine
It's no secret that the BMW N54 motor suffers from serious oil control problems causing oil to blow through and coat the intercooler and charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and generally degrading engine performance. The higher your boost levels the more apparent these problems become.
The solution to this problem has finally arrived. The VAG oil catch can. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapor condensation. Others utilize hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor / ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffles systems that are too restrictive for the N54 motor. Most are simply repackaged oil catch cans from smaller / lower power motors shoe horned in to place in the N54 engine bay.
To solve these problems VAG designed their oil catch can kit from the ground up specifically for the N54 application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The N54 mounting location is out of the way under the cowl allowing for shorter lines, more efficient operation, and a very stealthy look. Install takes around 20 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can to empty it's contents every 3-6 months.
VAG Oil Catch Can Features
• Increases Air Intake Efficiency
• Promotes Engine Longevity
• Non-Clogging Air/Oil Separation Double Baffle
• Free Flow Solid No Restriction Design
• Large Intake / Exhaust No Tapering Down
• Stealth Mounting on Cool Side of the Motor
• Anodized Black Lightweight Aluminum
N54 Model Mounts Out of Sight Under the Cowl
2008-2012 E82 Coupe 135i / 1M
2006-2011 E90 Sedan 335i / 335xi
2006-2011 E91 Touring 335i / 335xi
2006-2012 E92 Coupe 335i / 335xi / 335is
2007-2012 E93 Convertible 335i / 335xi
2008-2010 E60 Sedan 535i / 535xi
