OE design to ensure exact fit, form and function for an easy drop-in installation;
Built with high density multi-lowered fins for maximum cooling efficiency;
ISO 9001 certified manufacturing plants;
Improve Cooling Efficiency;
100% Leak Tested;
Plastic tanks with aluminum core;
Built to strict quality control standards;
AC Condenser Features
Aluminum construction to ensure heat transfer efficiency
Louvered aluminum fins and tubes are bonded through a unique furnace-brazing process with premium quality aluminum for maximum heat dissipation
Each product is quality inspected and 100% tested
Lightweight Direct Bolt-On OEM Fitment or Replacement
Guaranteed Exact Fit for easy installation
Know about the AC Condenser
AC Condenser: The condenser is part of the A/C system. It receives the hot, high-pressure gaseous refrigerant from the compressor and cools it to a warm liquid state, although still under high pressure.
Location: The Condenser is located right in front of the radiator. High pressure (hot) refrigerant travels through it and cools off as air passes through. Most late-model condensers cannot be flushed due to multiple flow paths, and must be replaced if restricted.
Check: If testing proves that your condenser is leaking, restricted, or otherwise damaged, don’t pay the high dealer price for a replacement, when you can get an OE quality condenser for much less from Replace.
Manufacturer Part Number: E838035CP
UPC: Does not apply
Warranty: 1 Year
Interchange Part Number: Replacement Radiator,Replacement Condenser
Custom Bundle: Yes
Modified Item: No
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Type: Radiator & AC Condenser
Core Material: Aluminum
Radiator Tank Material: Plastic
Quantity: 1PC Radiator+1PC condenser
Radiator Core Length: 30.24In.
Radiator Core Height: 21.66In.
Radiator Core Thickness: 0.63In.
Condenser Core Length: 19.77In.
Condenser Core Height: 26.46In.
Condenser Core Thickness: 0.63In.
Other Part Number: cooling system,air conditioner,radiator assembly,cooling kit
Superseded Part Number: radiator assembly,condenser assembly,aluminium A/C condenser
Radiator Cap: As Picture shows
Color: Black or Silver
Notes: Please verify the item fits your vehicle or not by compatibility
Notes: Radiator&Condenser will be shipped out separately
How to clean radiator
Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
Project operation, the vehicle normal temperature 60 to 80 degrees.
Add detergent if the tank is too full can take some antifreeze.

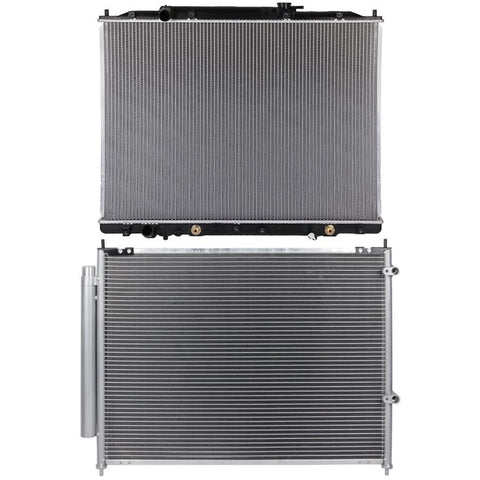

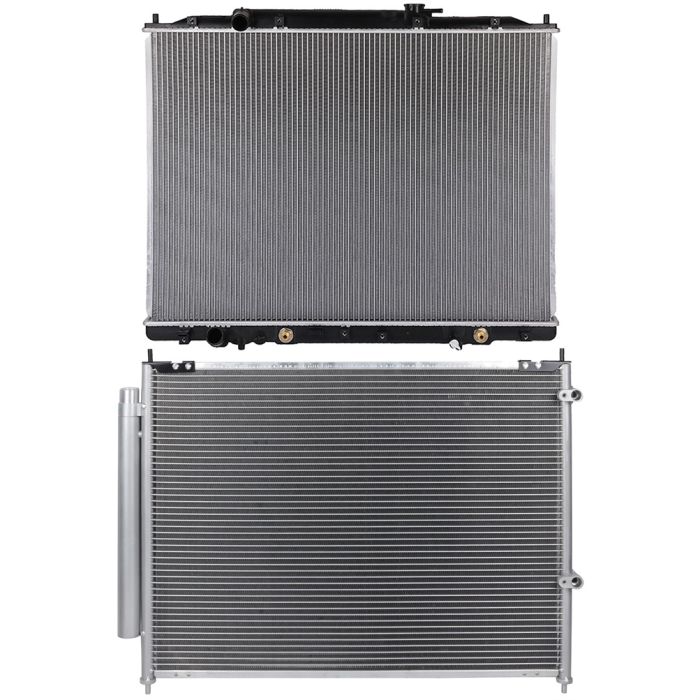

1pc of brand new radiator&1pc of brand new ac condenser
