Aluminum Radiator & AC Condenser Cooling Kit 2005-2012 Toyota Avalon 3.5L V6

  • Sale
  • Regular price $206.95
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Radiator Features
-OE design to ensure exact fit, form and function for an easy drop-in installation;

-Built with high density multi-lowered fins for maximum cooling efficiency;

-ISO 9001 certified manufacturing plants;

-Direct Replacement;

-Improve Cooling Efficiency;

-100% Leak Tested;

-Plastic tanks with aluminum core;

-Built to strict quality control standards;

AC Condenser Features
-Aluminum construction to ensure heat transfer efficiency

-Louvered aluminum fins and tubes are bonded through a unique furnace-brazing process with premium quality aluminum for maximum heat dissipation

-Each product is quality inspected and 100% tested

-Lightweight Direct Bolt-On OEM Fitment or Replacement

-Guaranteed Exact Fit for easy installation

Know about the AC Condenser
AC Condenser: The condenser is part of the A/C system. It receives the hot, high-pressure gaseous refrigerant from the compressor and cools it to a warm liquid state, although still under high pressure.

Location: The Condenser is located right in front of the radiator. High pressure (hot) refrigerant travels through it and cools off as air passes through. Most late-model condensers cannot be flushed due to multiple flow paths, and must be replaced if restricted.

Check: If testing proves that your condenser is leaking, restricted, or otherwise damaged, don’t pay the high dealer price for a replacement, when you can get an OE quality condenser for much less from Replace.

Product Specifics
Brand: ECCPP
Manufacturer Part Number: E818326CP
UPC: Does not apply
Warranty: 1 Year
Interchange Part Number: Replacement Radiator,Replacement Condenser
Custom Bundle: Yes
Modified Item: No
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Type: Radiator&Condenser
Material: Aluminum
Core Material: Aluminum
Radiator Tank Material: Plastic
Quantity: 1PC Radiator+1PC condenser
Radiator Core Length: 30.24In./768mm
Radiator Core Height: 15.75In.
Radiator Core Thickness: 0.63In./16mm
Condenser Core Length: 28.55in./725mm
Condenser Core Height: 15in./381mm
Condenser Core Thickness: 0.63in./16mm
Other Part Number: cooling system,air conditioner,radiator assembly,cooling kit
Superseded Part Number: radiator assembly,condenser assembly,aluminium A/C condenser
Radiator Cap: As Picture shows
Color: Black or Silver
Notes: Please verify the item fits your vehicle or not by compatibility
Notes: Radiator&Condenser will be shipped out separately
How to replace the radiator
1. Disconnect the battery.

2. Drain the radiator fluid into a suitable container.

3. Remove the old radiator
-Take off any plastic covers around the radiator.

-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.

-Disconnect the radiator hoses from the radiator.

-Disconnect the transmission cooling lines from the bottom of the radiator.

-Remove any clamps, brackets, or screws holding the radiator inside its frame.

-Lift the radiator up and out of the car.

4. Install the new radiator
-Slide the new radiator into place.

-Connect any clamps or brackets that hold the radiator in place.

-Connect the transmission cooling lines carefully.

-Connect the engine cooling hoses to the radiator.

-Replace the fan and fan shroud.

-Reconnect the fan electrical connection.

-Replace the plastic covers.

5. Fill the radiator with fluid.

6. Check your work to make sure that there are no leaks.

(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)

How to clean radiator
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.

2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.

Do please keep children and pets away when replacing the radiator)

1. Project operation, the vehicle normal temperature 60 to 80 degrees.

2. Add detergent if the tank is too full can take some antifreeze.

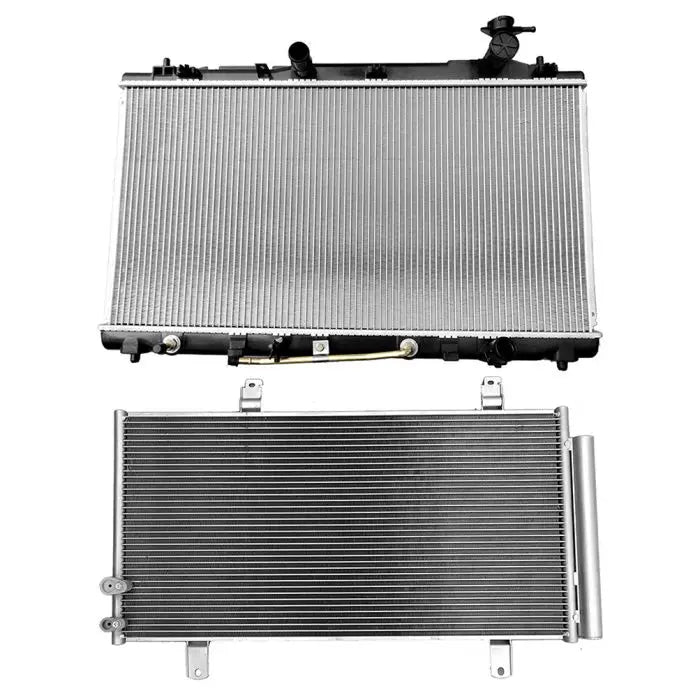

1pcs of brand new radiator&1pcs of brand new ac condenser
