Introduction
A coilover is an automobile suspension device. Thanks to built-in adjustability, coilovers offer the ability to be shortened or lengthened - lowering or raising the ride height of your vehicle through manual adjustment, without complex electronics or hydraulics. A coilover kit consists of a damper and a shock absorber with a coil spring around it. Maxpeedingrods provides performance aftermarket height adjustable coilovers suspension kit compatible for Mazda series. You can enjoy a comfortable riding experience in all road conditions.
Application
Compatible for Mazda Miata MX-5 NA (1.6L,1.8L) 1989-1997
Compatible for Mazda Miata MX-5 NB (1.6L,1.8L) 1998- 2005
Compatible for Mazda Miata Base Convertible 2D 1990-1997
Compatible for Mazda Miata Base Convertible 2D 1999-2005
Compatible for Mazda Miata SE Convertible 2D 2000-2003
Compatible for Mazda Miata LE Convertible 2D 1993
Compatible for Mazda Miata M Edition Convertible 2D 1994-1997
Compatible for Mazda Miata STO Convertible 2D 1997
Compatible for Mazda Miata 10th Anniversary Convertible 2D 1999
Compatible for Mazda Miata LS Convertible 2D 2000-2005
Specification

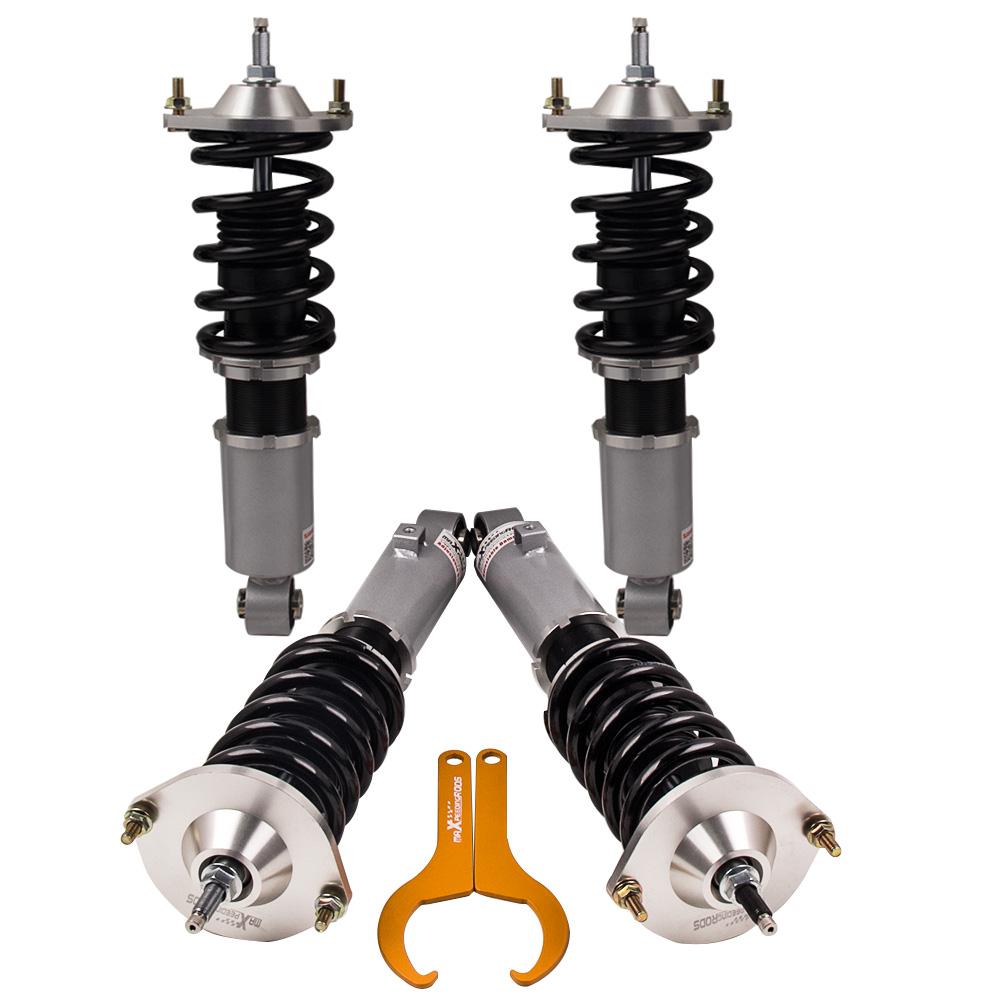

Quantity: 2 piece front + 2 pieces rear as shown
Adjustable damper: 24 ways adjustable damper force
Adjustable height: Yes, lowering 1-3''
Adjustable camber plate: No
Spring rate front: 7kg/mm (392lbs/in)
Spring rate rear: 6kg/mm (336lbs/in)
Shock type: Twin tube internal construction
Color: Gray
Warranty: one year warranty for any manufacturing defect
Features
- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.
- Coilovers are 24-way adjustable. Rebound and Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.
- Pillowball Upper Mounts for increased steering feedback.
- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency and keep shock temps low.
- Height adjustment does not sacrifice damper stroke length.
- These coilovers are able to have their height adjusted without being taken out of the car.
- Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity.
- High Tensile strength performance spring---Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability and performance.
- Adjustment tools included in the kit.
Notice
- No instruction included; Professional installation is highly recommended.
