Introduction

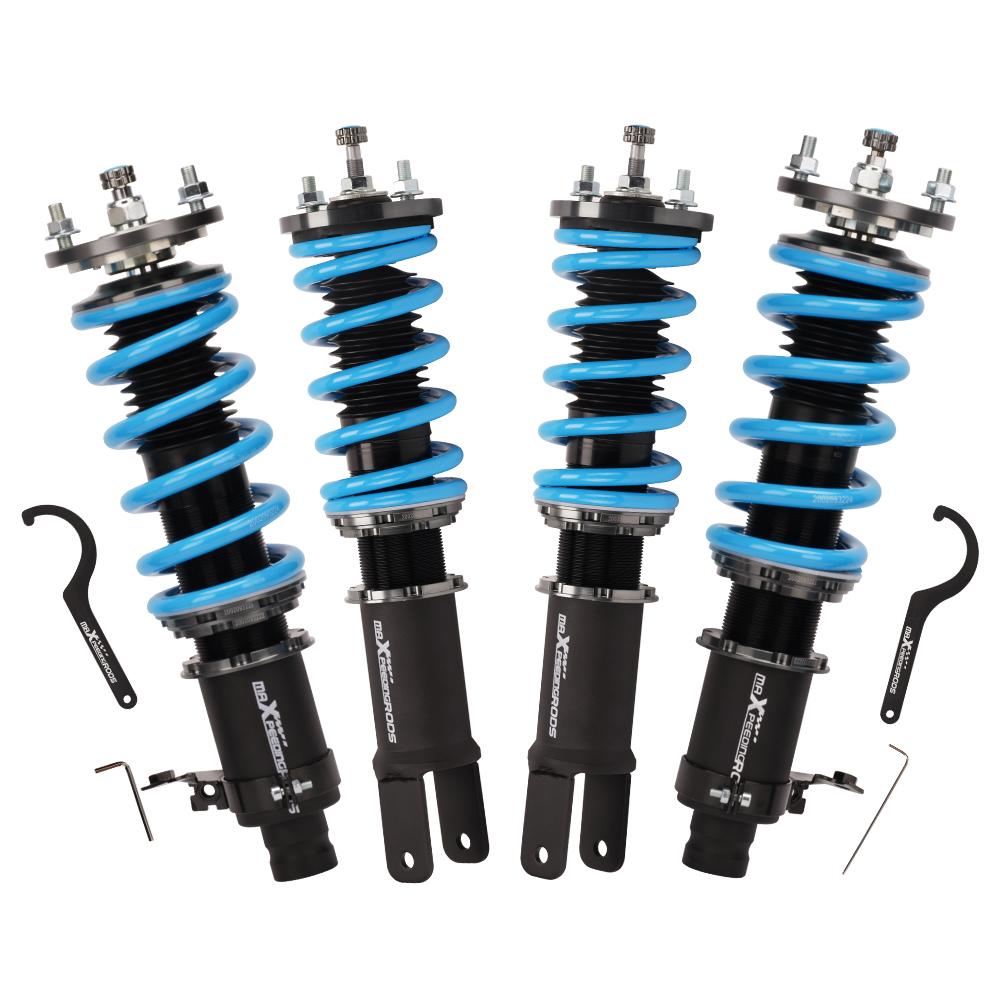

Maxspeedingrods SP1 lowering Coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate?for some vehicles) and decent outlook offers you more ability to tune your suspension on performance and gives your vehicle a more impressive appearance. Besides, all our Coilover are assembled in the dust-free factory, which turns out good quality and long life.
Application
Compatible for Honda Civic / CRX 1988-1991 EE EF EC rear fork type
Compatible for Honda Civic 1992-1995 EJ EG EH rear fork type
Compatible for Honda Civic 1996-2000 EK2-EK8
Compatible for Acura Integra 1990 -1993 DA DB rear fork type
note? for some vehicles, you will need sleeves and washers that are already included in our package.
Specifications
Type?Lowering kit /Shock Absorber / Suspension
Front top mount: pillow ball
Rear top mount: rubber
Damping: 24 levels rebound damping adjustable
Spring rate: Front: 8kg/mm (448 lbs/in)
Rear: 5kg/mm (280 lbs/in)
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body with blue spring
Package included:
Complete coilovers assembly 2 front and 2 rear.
A pair wrench for height adjustment
Dimension:
Package dimension : 71*51*21
Feature
1. Lowered height adjustment from 1" - 3" which allow a lower centre of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your Coilover setup. You will experience better ride quality in all road conditions.
3. Front pillow ball top mounts improve the steering feel and response.
4. Full-length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for a more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our Coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust-resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at the dust-free factory which guaranteed the highest quality.
Note
* No instruction included; Professional installation & alignment suggested.
