Specifications:
Housing Material: High quality aluminum
Input Voltage: 12-24V DC
Maximum Power: 600W at 12V / 1200W at 24V
Maximum Current: 60A
Switch operation: On - Off
With/without light sensor: Yes
Operating Temperature: - 40° C ~ + 150° C
Type: Blue back light
Technical Specification: Operating Voltage: 12-24VDC, Voltage : 30A, Rated
voltage: 12V 20A / 24V 10A, Max power rating: 1200W. Max current rating: 60A,
Operating temperature: -25°-80°. Adpot Capacitive sensing technology with blue
indicator light display ,waterproof IP65, with high sensitivity,stablity and
strong anti-interference ability.
Automatic Dimmable Function: Newest 8 gang switch panel have automatic
dimmable feature, the back light brightness of the switch panel will change
according the brightness of environment.
Safety protection: Built in safer IGBT technology instead of traditional relay
designed, ACC wire for protecting your battery, the led switch panel provide
over-voltage protection, reverse polarity protection, over-current protection,
thermal protection.
Easy Installation: No complicated wiring, no need to cut a big hole on your
vehicle. Plug & play wiring harnesses ensuring you to connect the led lights
or accessories easily. Two types of mounting bracket, you can install it
anywhere you need. You can customize your personal switch panel with 50pcs
self-adhesive labels. The best way to clean up all the wiring and add a single
panel to control everything.
Universal Fitment: Taking limited space on some vehicles into account, this
more compact size switch panel control system is perfect for all situations.
Auxbeam 8 In 1 touch screen panel more suitable for your needs, such as truck,
boat, off road, powersport, marin, atv, utv, suv, car, bus, heavy duty etc.
Guideline for connecting the red, yellow and white control cables:
1\. The red cable connects the master switch power cable to the ACC. If you
want to light up the LED lamps before the car start-up, please connect the
recommended because the higher the power is, the more the power of the battery
will be consumed.
2\. The yellow cable connects the width lamp to the master switch panel.
3\. The white cable is the panel light brightness control cable. It can
controls 3 brightness levels by each switching. You can disconnect the white
cable in order to have the most brightness swicth panel if require.

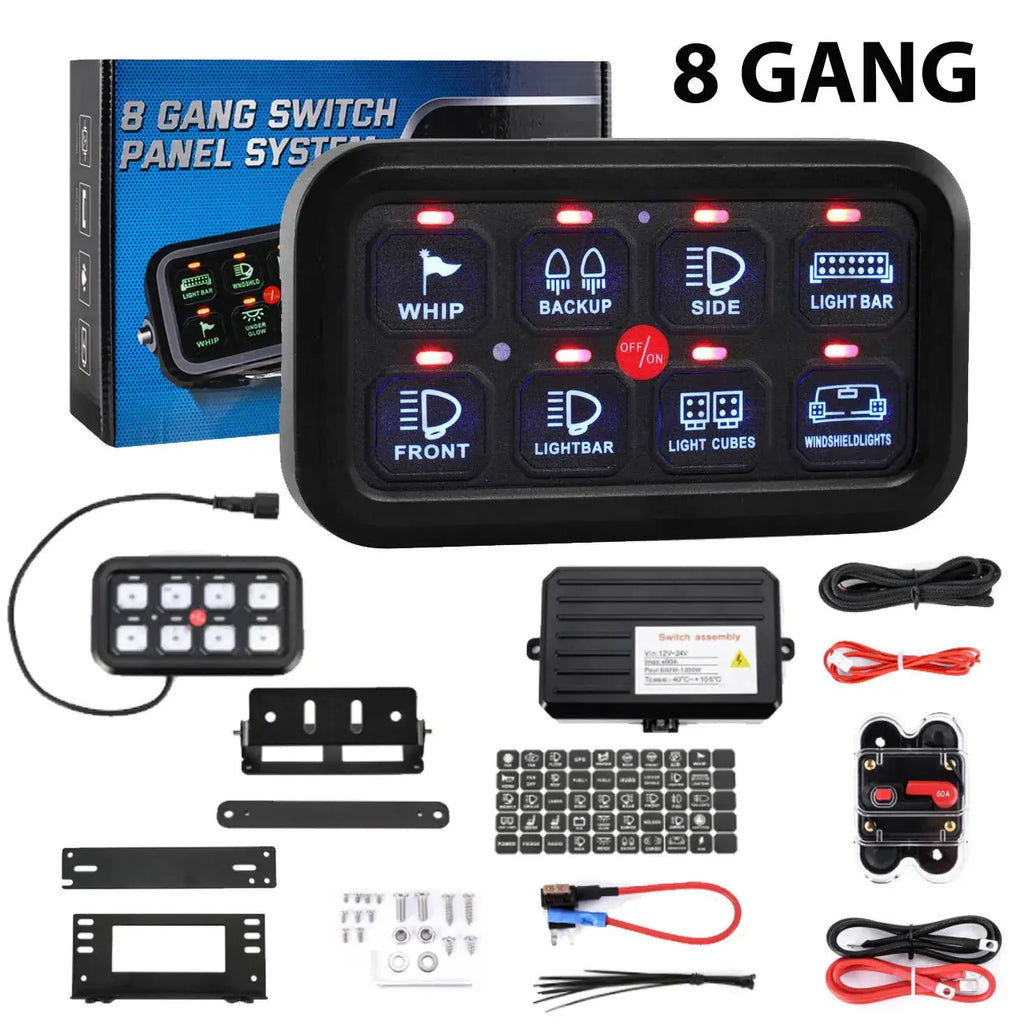

Package Included:
8 gang Switch panel,switch stickers,wiring harness, mounting accessories,
installation instruction and all required mounting hardware
