for General lathe economical CNC lathes grinding machines milling machines drilling and machine accessories etc..
- Material:Hardened Steel
- Model: K11-200
- Max RPM: 3000 r/min
- Jaw: 3 Jaw
- High precision:‚¬°¤0.05mm
- Application: for CNC Drilling Milling Machine
- Color: Silver
- Lathe Chuck:
- Diameter: 200mm(7.874")
- Thickness: 75mm(2.953")
- Center Hole: 65mm(2.559")
- Bolt Circle Diameter: 180mm(7.087")
- Runout: 0.08mm(0.003")
- Internal Clamping Range A-A1: 4- 85mm(0.157- 3.346")
- Internal Jamming Range B-B1: 65- 200mm(2.559- 7.874")
- External Clamping Range C-C1: 65- 200mm(2.559- 7.874")

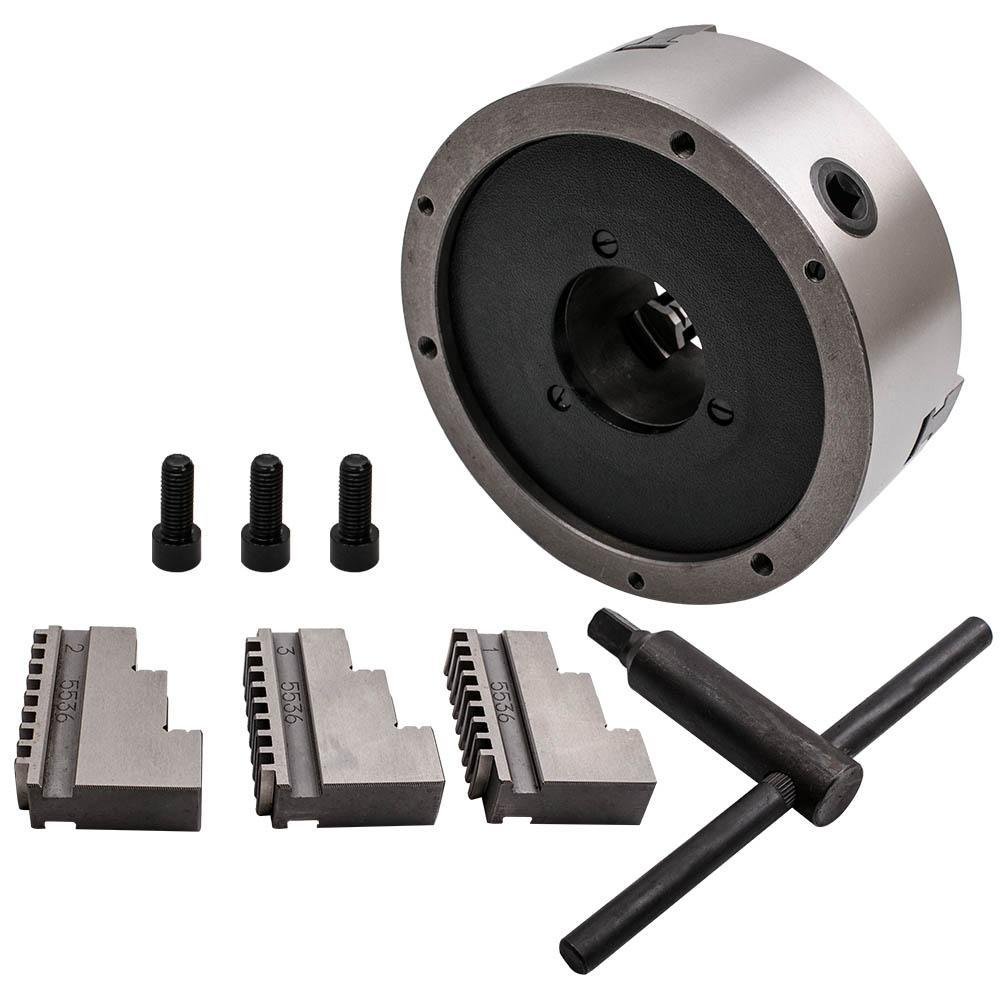

- Package Includes:
1 x Self-Centering 8€š¬� Jaw
3 x Inside jaws
3 x Outside jawslarge
1 x Safety chuck key
3 x Mounting bolts
