Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds
damping adjustment ability by a knob the top of the shaft. They are also made
for street use, but the 24 level rebound damping control allows you the
ability to perfectly dial in your coilover setup. You will experience better
ride quality in all road conditions.
Application
Compatible for Nissan S13 240SX 89-94 USA
Compatible for Nissan S13 200SX 89-93 Europe
Compatible for Nissan S13 Silvia 88-93 Japan
Compatible for Nissan S13 180SX 89-99 Japan
Compatible for Nissan S13 Sileighty 98 Japan
Specification
Top mounts: pillow ball top mount with camber plate front, standard rubber top
mount rear
Damping: 24 levels rebound damping adjustable
Front Spring Rate: 8kg/mm(448lbs/in)
Rear Spring Rate: 7 kg/mm (392lbs/in)
Adjustable Height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold
Package included

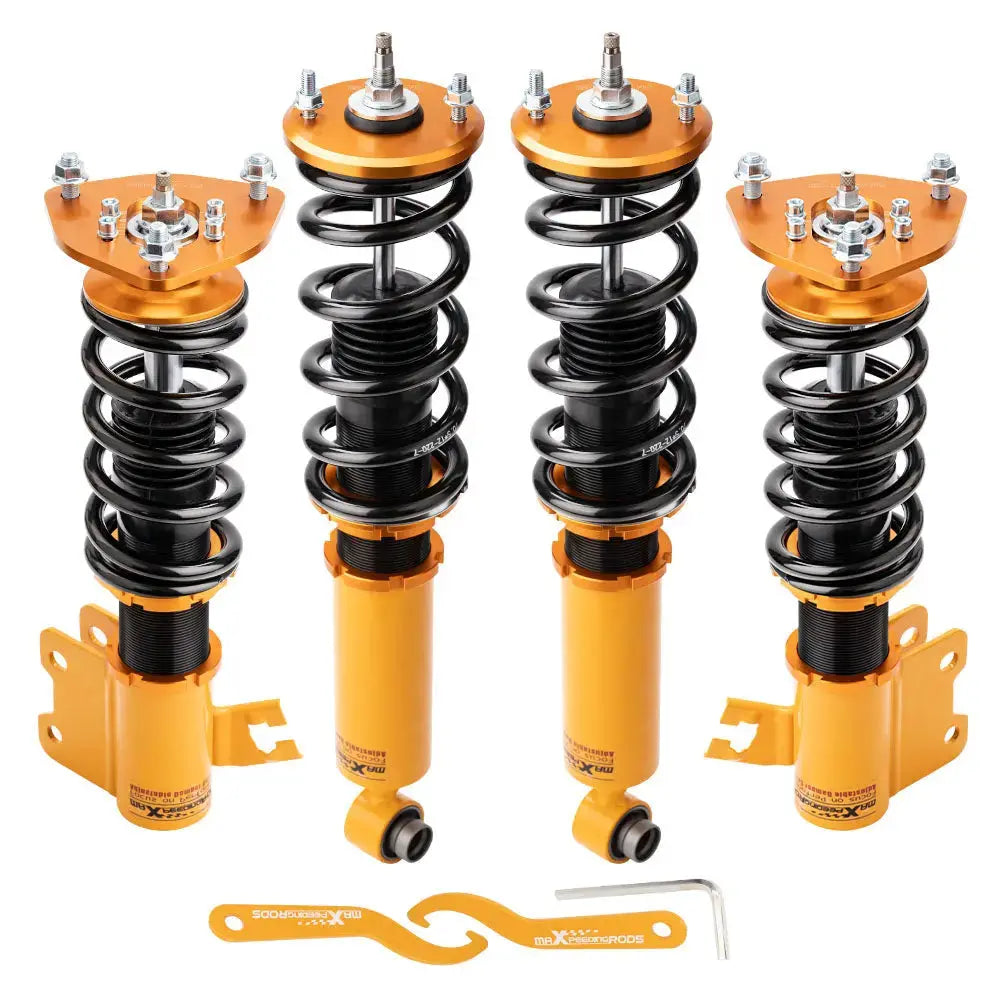

product included: complete coilovers 2 front and 2 rear,a pair wrench for
height adjustment.
Dimension
Gross weight: 24.1kg
Package size: 625221cm
Feature
1\. Lowered height adjustment from 1" - 3" which allow lower center of gravity
and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber
kit.（Front Only)
3.Pillow ball top mount - It improves the steering feel and response.（Front
Only)
4\. Rubber top mounts help to deliver a smooth and forgiving ride for city use
at any speed and rubber joints assist in absorbing hard impacts. (only rear)
5\. Twin-Tube structure allows sufficient stroke within the shock absorber.
6\. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy
installation.
7\. Separate height adjustment does not affect damper stroke.
8\. Height can be adjusted with coilovers installed on the vehicle.
9\. High Tensile performance spring - STRESS TESTED OVER 600,000 times while
the spring distortion is less than 0.04%. Plus the special surface treatment
improves the durability and performance.
10\. Height Adjustment tools included.
11\. Full rebuildable.
12.A 24 rebound dampening adjustment level allows you the ability to perfectly
dial in your coilover setup. You will experience better ride quality in all
road conditions.
