The three main parts of the compressor clutch assembly are the coil magnet, the pulley, and the clutch plate.
The clutch drive plate is splined to the input shaft of the compressor.
The compressor clutch is a large electromagnet that, when energized, draws the clutch plate into the clutch pulley.
The magnetic field holds the clutch plate tightly against the clutch pulley as long as current is supplied to it.
This in turn engages the drive pulley to the compressor input shaft, causing the shaft to spin.
When the compressor clutch is not engaged, the input shaft of the compressor does not spin and the drive pulley freewheels on a sealed bearing assembly.
Warranty: 1 Year
Manufacturer Part Number: E10439CP178S
UPC: Does not apply
Interchange Part Number: CO 11200C,92610JM01C,141004C,141004NC,141004NEW
Other Part Number: 10347900, 98490
Superseded Part Number: 6512863,10362251
Kit Parts Included: Cluth
Fitment Type: Direct Replacement
Surface Finish: Painted

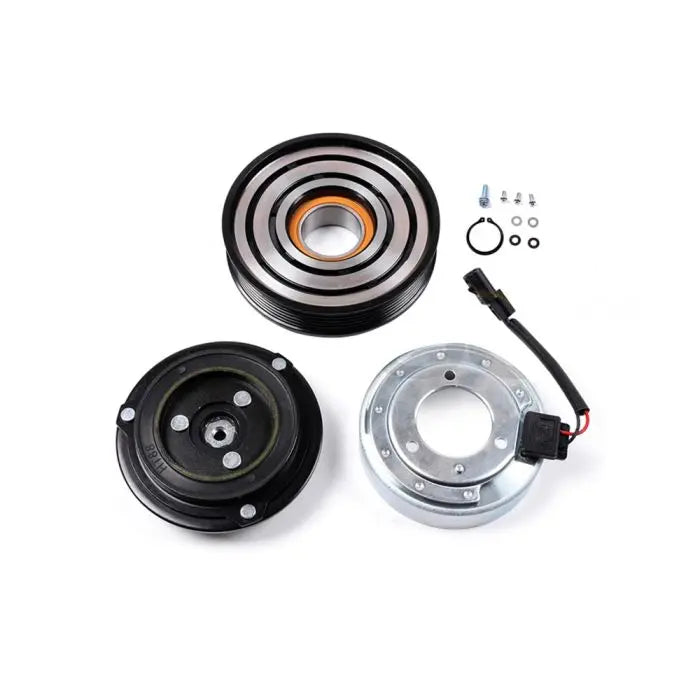

1 x Pulley With Bearing
1 x Front Plate
1 x Electromagnetic Coil
