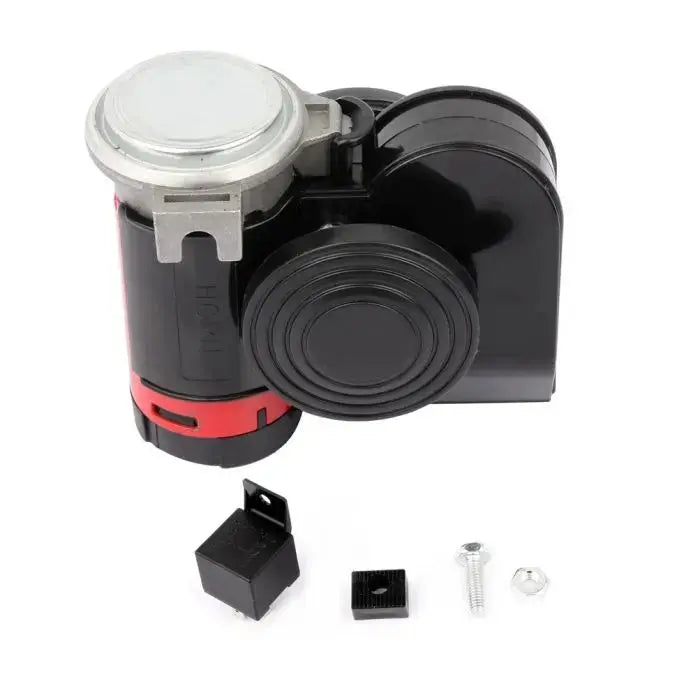

1 x Air Horn
This Compact Snail Air Horn has beautiful black plastic finish, a step-up letting the vehicle or motorcycle stand out. The diaphragms have a flat shaped plastic cover and has added a chrome cover to the top of the compressor. Both covers are aerodynamically shaped, making a great choice to dress-up any engine compartment as well as the exterior mount on a motorcycle. Produces a powerful dual tone air horn sound that is two times 2X louder than a factory horn. It is compact in size and is ideal for any 12-volt vehicle. The patented one piece design makes installation easy and will provide the vehicle owner a powerful dual tone air horn sound. They will hear you before they can see you. Built with a Heavy-duty maintenance free compressor that will provide years of dependable service. Kit includes a heavy-duty 30-amp relay, mounting bolt.
Product Specifics
Manufacturer Part Number: EC108103CP01
Type: Horn Button
Material: Plastic
Horn Type: Electric
Features: Quick Release
Manufacturer Warranty: 1 Year
Surface Finish: ABS
Superseded Part Number: Truck Car SUV Boat Motorcycle Boat Horn
DB Output: 120DB
Frequency: 600Hz/760Hz
Size: 118(L)?78(W)?110(H)mm
Voltage: 12V /24V DC
UPC: Does not apply
Volt: DC 12V
Current: 18.0A
Impedance: 1?
Sound Level: 130dB
Main Color: Black and Red
Type of Sound: Harmonized twin tone
Installation Note
Connected directly to the battery relay
If you have not connected the horn relay, may cause electrical problem
It is recommended to use 20A-30A fuse
Mounting angle downward,so that moisture can not collect in the horn
If no sound or strange sound,check the horn -wire (+/-)
Connect the grounding cable to avoid spark
Disconnect the ground cable first remove
Be careful not to put too close to the chassis of the horn-trumpe trattling noise reduction
