06-09 Chevy GM 5.3 AFM DOD Delete Kit Camshaft Gasket Set Bolts Lifters Oil
Pump. Allow the engine to reach its maximum RPM potential. Decrease friction
and increase longevity when directly compared to flat tappet lifter. Perfect
performance replacements for stock hydraulic roller lifters or retro-fit
hydraulic roller lifters for non-roller blocks. Replace Part : 12589226,
19258707, 17122490, 05234670, 12499225, 12564012, 12576400, 12648846,
25341990, 12557840, 12689035
06-09 Chevy GM 5.3 AFM DOD Delete Kit Camshaft Gasket Set Bolts Lifters Oil
Pump. The hydraulic lifter in a car's engine uses oil pressure to adjust a
plunger and take up all the clearance in the valve train. This helps to ensure
less engine noise and longer reliability, due to less wear and tear. Hydraulic
lifters can begin to fail through normal use of a vehicle. After several years
of running the engine of your vehicle, the hydraulic lifters within the valves
can become laden with sludge, and other contaminants in the valve, that they
start to wear out. New hydraulic lifters can make a tremendous difference in
the way that a vehicle runs as well as how the engine sounds. The head gasket
is the key component of the engine. It is compressed between the engine block
and the cylinder head. The head gasket seals in the internal combustion
process to make sure maximum compression is achieved and also keeps coolant
and oil from mixing together as the two fluids travel from the engine block to
the cylinder head. Therefore the cylinder head gasket, and lifters are an
important part of your engine. They should always be in perfect condition and
should be maintained properly. So, if you notice that this part is showing
signs of excessive wear, have them replaced immediately. Be sure to have your
worn out parts replace with our aftermarket replacement parts set as soon as
they start to give you trouble.
Fits Following Models:
2008-2009 BUICK ALLURE 5.3L 5328CC 325CID V8 OHV, (16 VALVE), VIN CODE
"C"
2008-2009 BUICK LACROSSE 5.3L 5328CC 325CID V8 OHV, (16 VALVE), VIN CODE
"C"
2006-2009 CHEVROLET IMPALA 5.3L 5328CC 325CID V8 OHV, (16 VALVE), VIN
CODE "C"
2006-2007 CHEVROLET MONTE CARLO 5.3L 5328CC 325CID V8 OHV, (16 VALVE),
VIN CODE "L"
2005-2008 PONTIAC GRAND PRIX 5.3L 5328CC 325CID V8 OHV, (16 VALVE), VIN
CODE "C"

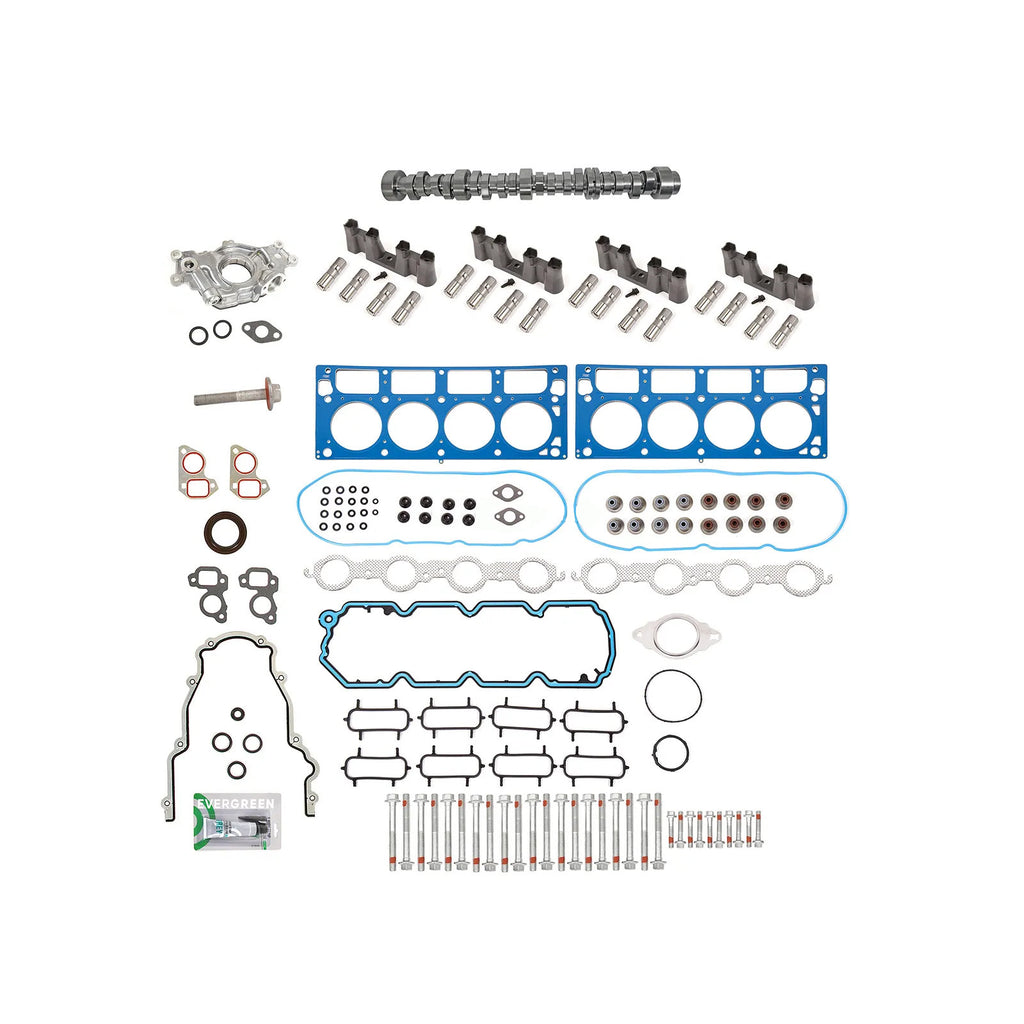

This item includes:
Multiple Layers Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
RTV Silicone
30 Cylinder Head Bolts (20 Long Bolts: 100mm, 10 Small Bolts: 45mm - TTY - torque to yeild bolt)
1 Genuine Chevrolet Performance AFM Delete Camshaft 1-Bolts (work with VVT or NON-VVT. Duration @ .050" 190/191 Lift .466"/.457" 114 LSA.)
1 Genuine OEM GM Balancer Bolt (TTY - torque to yeild bolt)
16 Non AFM Roller Lifters
4 Lifter Trays w/ Bolts
1 Front Cover Gasket Set
1 Oil Pump
Camshaft Specs:
Type: Hydraulic Roller
Intake Duration @ .050": 199
Exhaust Duration @ .050": 191
Valve Lift Int (in.): .466
Valve Lift Exh (in.): .457
Rocker Ratio: 1.7
Lobe Seperation: 114
Camshaft Gear Attachment: 1-bolt
Notes: Works with factory valve springs.
