Timing Chain AISIN Water Pump Oil Pump Fit 01-13 Toyota Scion 2.4 1AZFE 2AZFE.
Utilizes the latest in design and material technology, ensuring quiet and
maintenance-free experience. Specialized designs yield significant and
noticeable improvements to your car engine. Replace OE Part : 13523-0D010,
13521-0H010, 13506-0H011, 13540-0H010, 13559-OH010, 13561-0H010, 13507-28010,
13549-28012, 13566-28010
Timing Chain AISIN Water Pump Oil Pump Fit 01-13 Toyota Scion 2.4 1AZFE 2AZFE.
The timing chain is located in the front of the motor and is attached to a set
of gears and pulleys that power multiple mechanical components, including the
crankshaft and camshaft. In order for your engine to fire, the timing chain
must smoothly rotate around the gears without hesitation. Although the timing
chain is made out of metal, it is subject to wear and tear and may break if
not replaced as recommended by the factory. Since the timing chain can go bad
and will need to be replaced, it is important to be able to recognize the
symptoms so you can have it repaired before it fails completely. Signs your
timing chain needs to be replaced include: Your vehicle has a rough idle,
meaning your engine shakes. Your car backfires. The vehicle seems to be
working harder than normal. Your car will not start at all, indicated a
complete timing chain failure. Be sure to use our aftermarket replacement
timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2010-2012 LEXUS HS250H 2.4L 2362CC L4 ELECTRIC/GAS DOHC, (16 VALVE), ENG
CODE "2AZFXE"
2009-2010 PONTIAC VIBE 2.4L 2362CC L4 DOHC, (16 VALVE), VIN CODE "0"
2010 SCION TC 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2005-2009 SCION TC 2.4L 2398CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2002-2009 TOYOTA CAMRY 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2007-2011 TOYOTA CAMRY 2.4L 2362CC L4 ELECTRIC/GAS DOHC, (16 VALVE), ENG
CODE "2AZFXE"
2009-2010 TOYOTA COROLLA 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE
"2AZFE"
2001-2007 TOYOTA HIGHLANDER 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE
"2AZFE"
2009-2013 TOYOTA MATRIX 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2001-2003 TOYOTA RAV4 2.0L 1998CC 122CU. IN. L4 DOHC, (16 VALVE), ENG
CODE "1AZFE"
2004-2008 TOYOTA RAV4 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2002-2008 TOYOTA SOLARA 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"

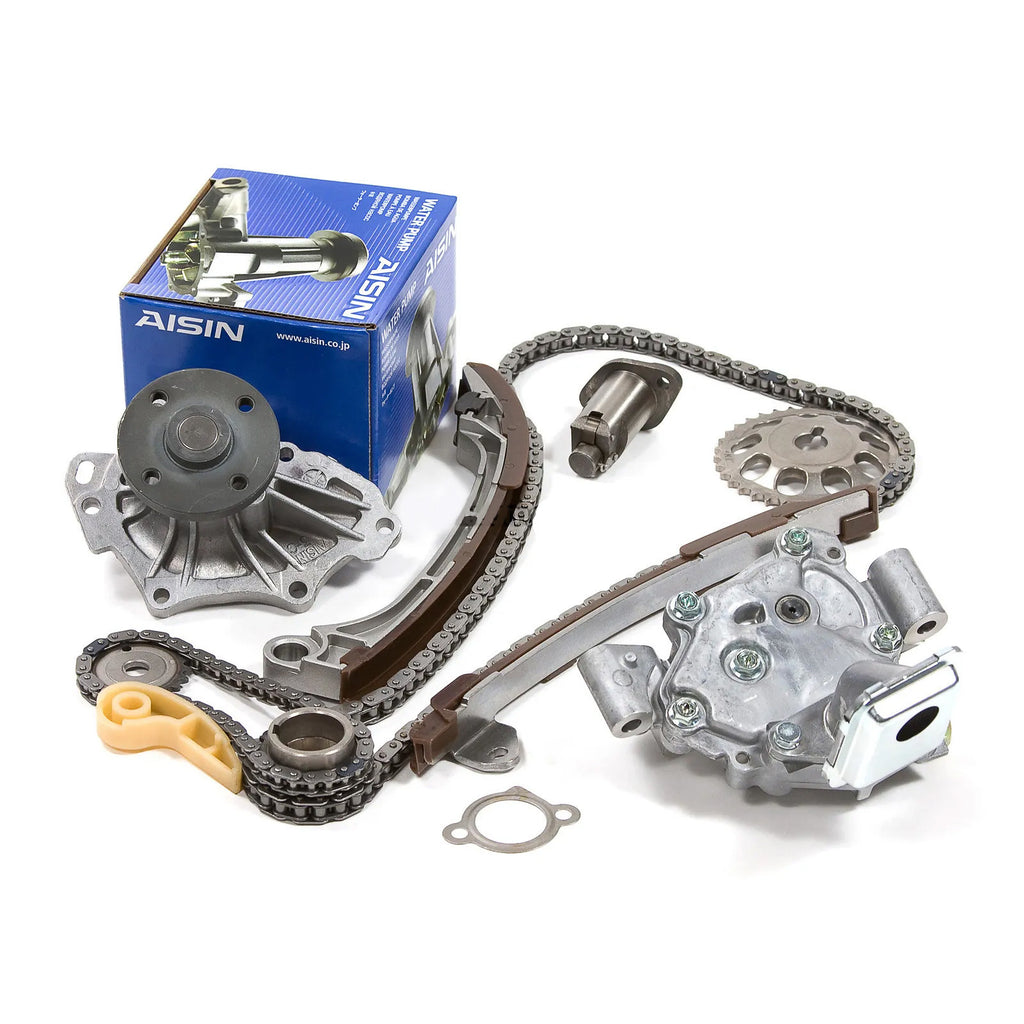

This item includes:
1 Timing Chain (Cam Chain 134 Links)
1 Tensioner (Cam Chain Tensioner)
1 Crank Sprocket (18 Teeth)
1 Guide Rail (Tensioner Rail)
1 Guide Rail (Fixed Rail)
1 Timing Chain (Oil Pump Drive Chain)
1 Tensioner (Oil Pump Tensioner)
1 Crank Sprocket (drive Sprocket 20 Teeth)
1 Oil pump Sprocket (20 Teeth)
1 Cam Sprocket Left (Exhaust Cam Sprocket)
Intake Cam Sprocket Right / VVTi Gear - is not included
1 Oil Pump
1 AISIN Water Pump (Does not include gasket, use silicone sealant to seal in stead of gasket)
Remark: This AISIN water pump requires Form-In-Place-Gasket (FIPG) silicone
sealer. We recommend AISIN part AB1207B or Toyota Part: 00295-00103. The
water pump mounting surface has a U shaped groove inside the bolt pattern.
This is designed to catch any excess sealant and stop it from reaching the
water pump jacket. If the gasket sealer is exposed to the coolant the catalyst
(hardening agent) will cause the coolant to become acidic and over time eat at
the metal, gaskets, and seals. Apply a continuous bead of sealant about 2.2mm
to 2.5mm (0.09in to 0.10in) thick OUTSIDE of the U groove and INSIDE the bolt
pattern. (see attached document). Install the water pump within 15 minutes
otherwise, the sealant will need to be removed and reapplied.
