Just try this 8-Gang switch, it would bring you surprise and definitely worth
it!
Specification:
Housing Material: High quality aluminum
Input Voltage: 12-24V DC
Maximum Power: 600W at 12V / 1200W at 24V
Maximum Current: 60A
Switch operation: On - Off
With/without light sensor: Yes
Operating Temperature: - 40° C ~ + 150° C
Type: Blue back light
Features:
Multi-position installation and wide application. with different brackets, it can be installed in any position you like.
Universal 8 switch panel relay system. power up to 8 lights & accessories from one convenient place.
Customize your own panel, with 50 universal switch stickers, you can customize your unique personal switch panel according to certain needs.
All in one design for your ultimate convenience. This kit has everything you need for installation and use. No need to buy extra parts.
Attomatic Dimmable Back light for Driving Safer.
On the road or other bright places, the switch panel will be brighter, so you
can see it clearly.
In the tunnel or other dark places, the switch panel will be dim, reduce the impact on the driver's vision
MULTIFUNCTION 8 GANG SWITCH :Switch assembly allows you to control 8 set
of LED lights or devices with the push of a button. With 8 circuits rated at
60A each, can powered all types of 12V/24V accessories
Automatic Dimmable Function: Newest 8 gang switch panel have automatic
dimmable feature, the back light brightness of the switch panel will change
according the brightness of environment.
WIDE APPLICATIONS: The professional quality power distribution system, which
can help you save the trouble of complicated factory wiring. It was designed
for use in any vehicle, allowing you to add professional control for your
electronic devices in an easy-to-install system. For example, installed in
Trucks, Pickup, UTVs, RZRs, Car, Boats
Safety protection: Built in safer IGBT technology instead of traditional relay
designed, ACC wire for protecting your battery, the led switch panel provide
over-voltage protection, reverse polarity protection, over-current protection,
thermal protection
Easy Installation: No complicated wiring, no need for a big hole on your
vehicle. Plug & play wiring harnesses ensuring you to connect the led lights
or accessories easily. Two types of mounting bracket, you can install it
anywhere you need.
Universal Fitment \- Smaller size universal 6 gang switch panel and
control box save more space and can be mounted on more application scenes and
vehicle, such as truck, boat, marines, off road, powersport, atv, utv, suv,
car, bus, heavy duty etc.

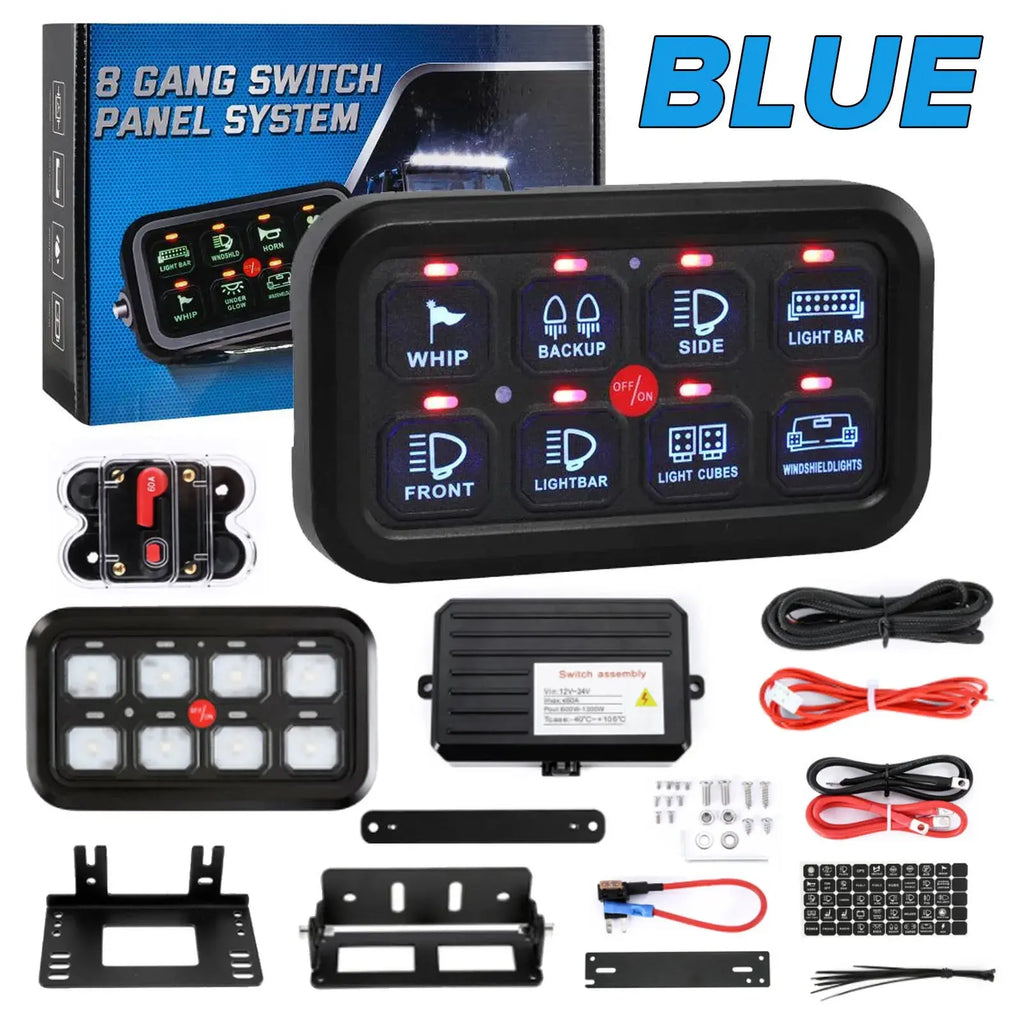

Packing included:
1x switch control box, 1 x switch panel, 2x mounting brackets, 1x strap, 1 x
wiring harness, 1x voltage protection switch, 1x diy sticker
Note:
1\. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and
slight color variation for different display setting.
2\. Due to the difference between different monitors, the picture may not
reflect the actual color of the item.
Here is the video showing how to install and use the 8-Gang switch:
