Application
Compatible for BRIGGS & STRATTON 8hp-13hp MOTORS
Compatible for Cub Cadet 1015 1988-1991
Compatible for Cub Cadet 1020 1988-1991
Compatible for Cub Cadet 1105 1985-1986
Compatible for Cub Cadet 111 1978-1979
Compatible for Cub Cadet 1110 1985-1986
Compatible for John Deere 111 1979-1985
Compatible for John Deere 111H 1982-1984
Compatible for John Deere L118
Compatible for Toro 11-32 1978-1997
Compatible for Toro 11-38 1986-1987
Compatible for Toro 212-H 1989-1991
Compatible for Toro 825 1991
Compatible for Toro LT12.5G 1995
Compatible for Toro Sand Pro5000 1992-1993
OEM & Part Number:
Compatible for ARROWHEAD: SBS0004
Compatible for BRIGGS & STRATTON: 394943, 399169, 490420, 494148,494198,
494990, 497401, 499521, 499529, 691262, 795121
Compatible for CARGO : 112563
Compatible for CUB CADET: BS-399169, BS-499521
Compatible for GENERAC: 075255, 75255, 75255-A
Compatible for J & N: 410-22005, 410-22015
Compatible for JOHN DEERE: AM106883, AM38136, AM39285,LG490420, LG497401,
LG499521, LG691262, MIA11175, SE501860
Compatible for LESTER: 5746, 5778
Compatible for NSA: STR-1005A
Compatible for TORO: 78-4340
Compatible for TUCKER ROCKY: 49-5790
Compatible for WAI: 2-2191

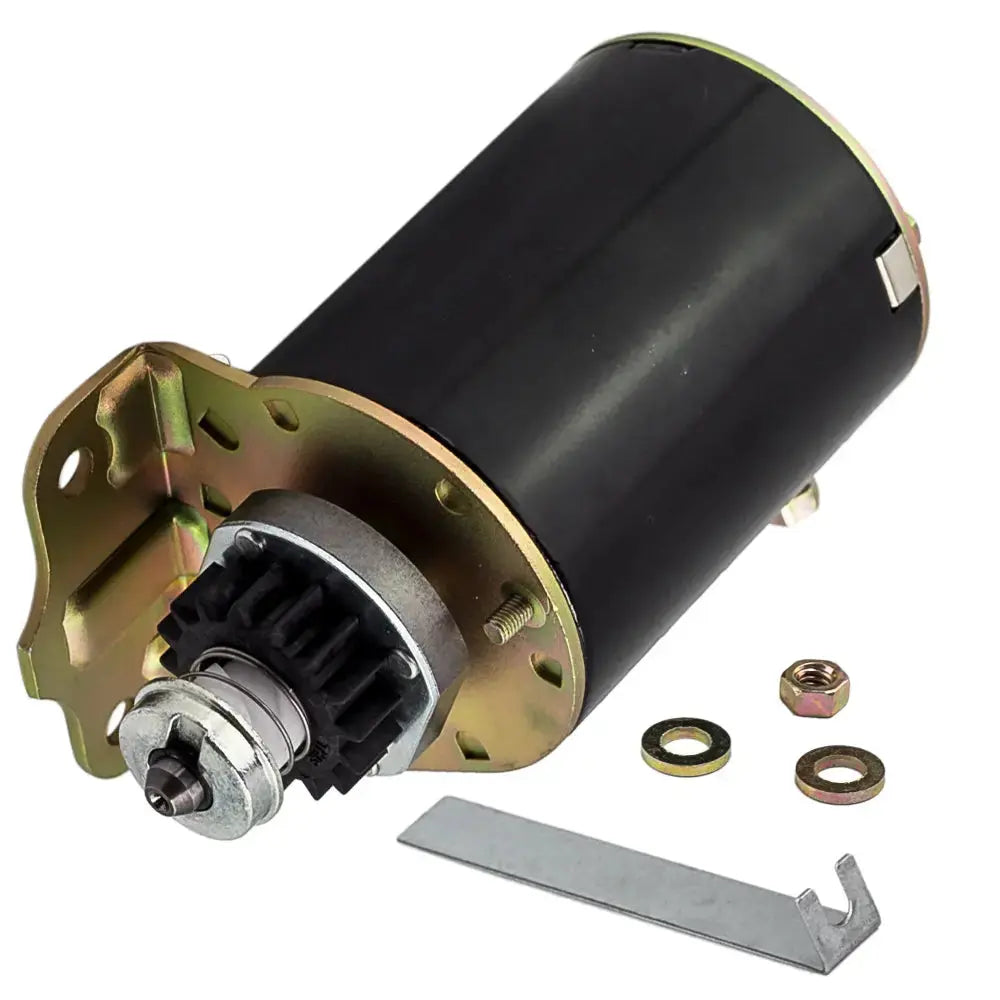

Specification
Voltage: 12v
Rotation: CCW
Starter Type : PMDD
Number of Teeth : 16
Mtg Ear 1 Hole : 8.0mm Unthreaded
Mtg Ear 2 Hole : 8.0mm Unthreaded
Mtg Ear 3 Hole : 8.0mm Unthreaded
Mounting Hole center distance: Approx 58mm
Overall length: 165mm
Condition: New
Feature
The new starter meets OEM specifications.
Sealed metal housing improves operating efficiency.
The performance is comparable to the original version.
Notice
Suits aluminium and plastic flywheel ring gears, will NOT suit steel gears.
Please check the number of gears and overall length, here is 16 teeth. We also sell Starter Motor of 14 teeth.
Please allow 1-2mm for variance due to manual measurement.
Package Includes: You will get exactly as shown as picture above.
Professional installation is highly recommended (No Instruction Included).
Please check the picture and OE number before buying.
